Timken® SET6-900SA TIMSET6

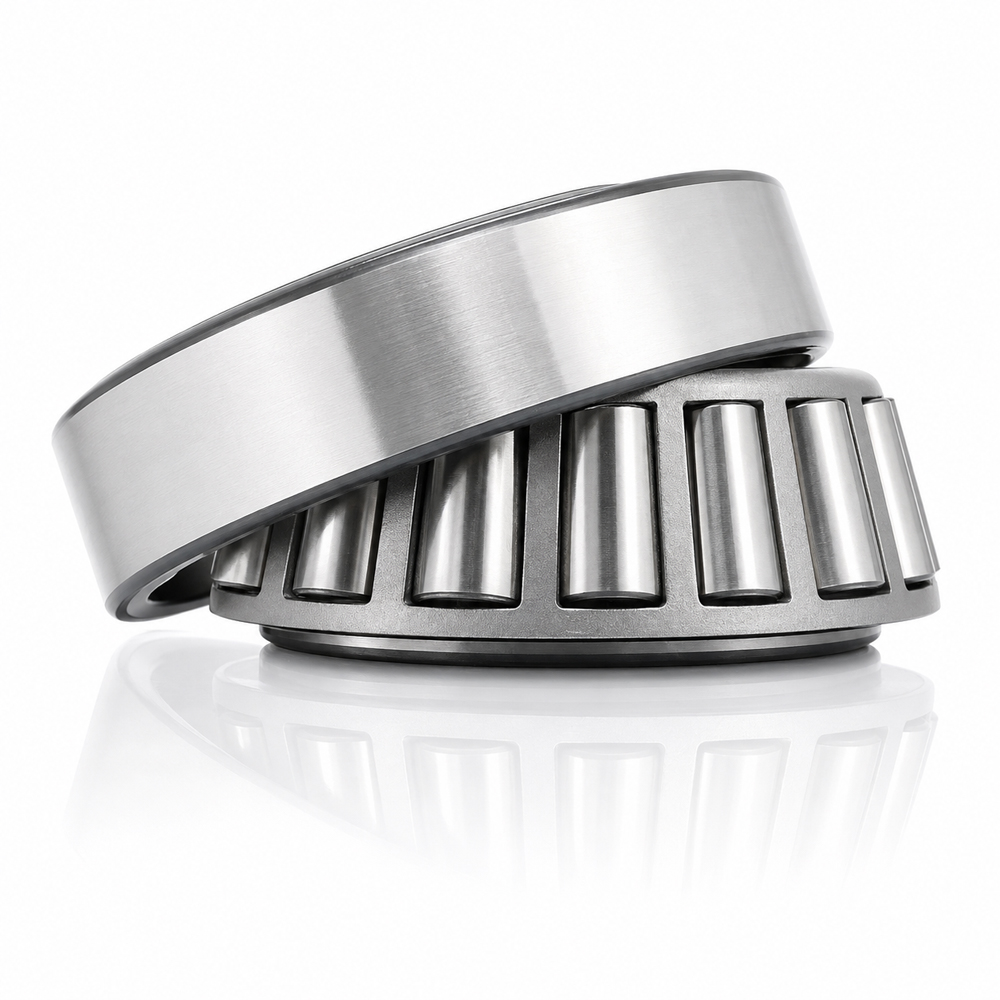

The Timken SET6 tapered roller bearing set, manufacturer part number SET6-900SA, consists of the LM67048 bearing cone (inner ring and roller assembly) and LM67010 bearing cup (outer ring). This single-row Type TS tapered roller bearing has a 1-1/4 in (31.750 mm) bore, 2.3280 in (59.131 mm) outside diameter and 0.625 in (15.875 mm) assembled width. The LM67048 cone has a 0.6600 in (16.764 mm) inner ring width, while the LM67010 cup has a 0.4650 in (11.811 mm) outer ring width. Timken rates the LM67048/LM67010 combination at 10,500 lbf (46,700 N) dynamic radial load and 10,000 lbf (44,600 N) static radial load. SET6 supplies the separable tapered roller bearing cone and cup together as a complete bearing set. The tapered roller design is engineered to accommodate combined radial and axial loading. Verify bearing numbers, dimensions and application requirements when selecting a replacement.

• Timken SET6 / SET6-900SA tapered roller bearing set
• Includes LM67048 cone and LM67010 cup
• Single-row Type TS tapered roller bearing
• 1-1/4 in (31.750 mm) bore diameter
• 2.3280 in (59.131 mm) outside diameter
• 0.625 in (15.875 mm) overall assembled width
• LM67048 cone width: 0.6600 in (16.764 mm)
• LM67010 cup width: 0.4650 in (11.811 mm)
• 10,500 lbf (46,700 N) dynamic radial load rating
• 10,000 lbf (44,600 N) static radial load rating
• Open tapered roller bearing design
• Steel bearing construction
• Separable cone and cup components
• Designed to accommodate combined radial and axial loads

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3919RB_90077_Catalog.pdf
