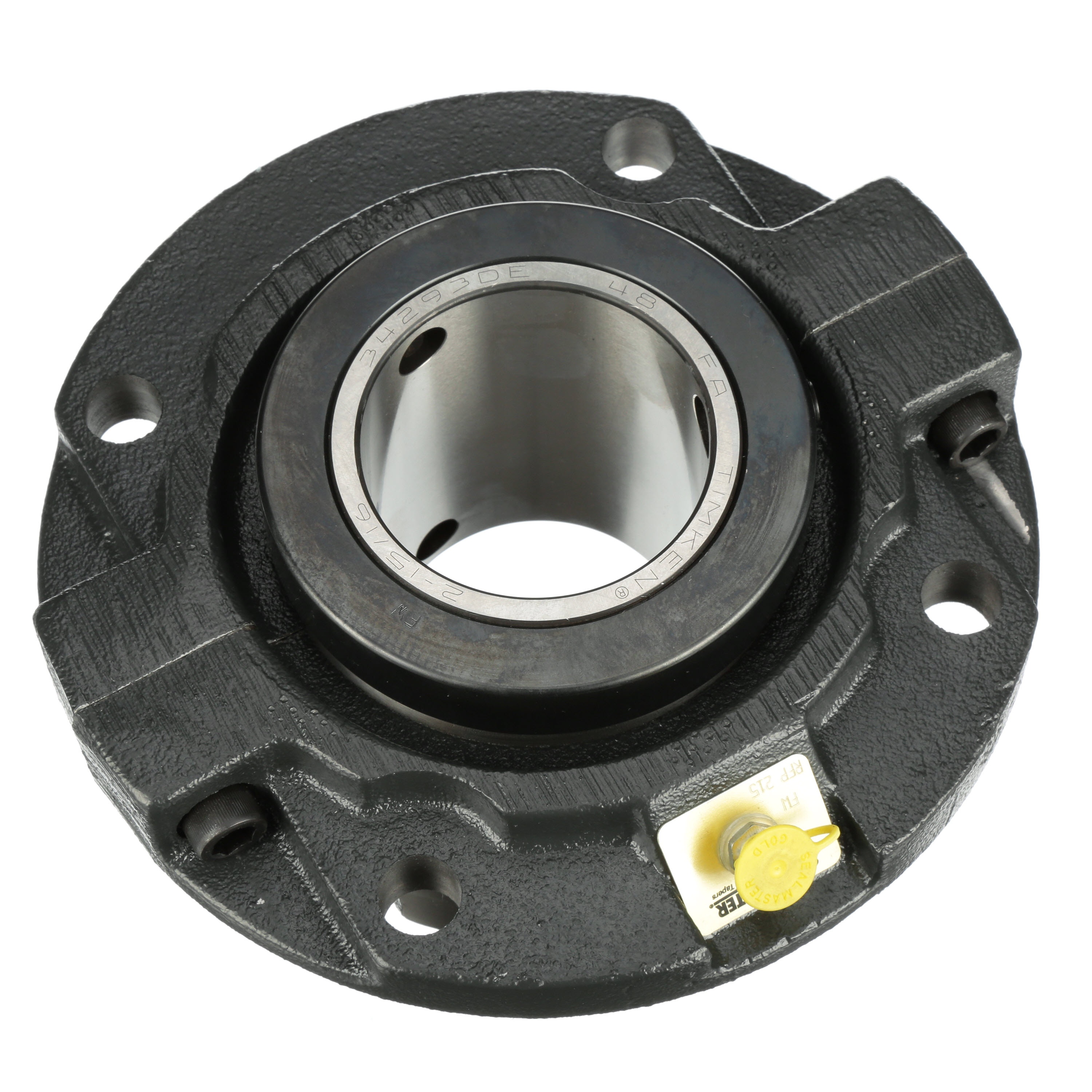

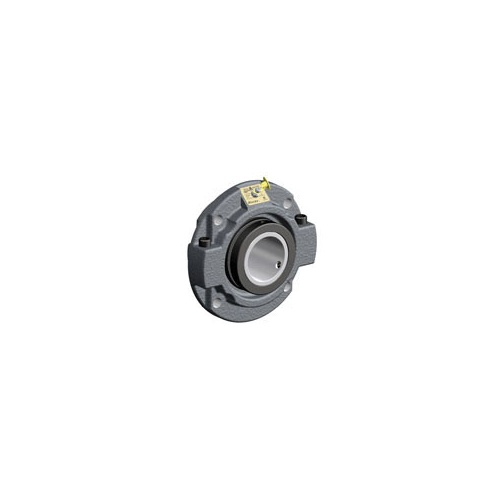

Sealmaster® 550335 MORRFP215
Sealmaster® 550335 RFP Non-Expansion Round/Straight Bore Tapered Roller Bearing Unit, 2-15/16 in Dia Bore, 7-1/2 in Dia Bolt Circle, 4-Bolt Piloted Flange Mount, 8-3/4 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORRFP215
- Alt Part Number: RFP 215
- MPN: 550335
- UPC: 662288480600
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive Type E bearings. The exclusive features include unitized replaceable inserts, self aligning capability, split housing and the Sealmaster® alignment pin which provides for a direct path for lubrication into the bearing and helps prevent outer ring rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric with a wide variety of housing, sealing and lubrication options as illustrated on the pages to follow.
Sealmaster® Tapered Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: RFP, 2-15/16 in Bore, 7-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 8-3/4 in Overall Length/Diameter, 4-1/2 in Overall Depth, Double Set Screw Locking Device, Cast Iron Bearing, Felt Seal, 9630 lb Dynamic Load, 1750 rpm Maximum, 250 deg F, Uncoated
| Bearing Material | : | Cast Iron |
| Bolt Circle Diameter | : | 7-1/2 in |
| Bore Diameter | : | 2-15/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt Piloted |
| Load Capacity | : | 9630 lb Dynamic |
| Locking Device | : | Double Set Screw |
| Maximum Speed | : | 1750 rpm |
| Overall Depth | : | 4-1/2 in |
| Overall Length/Diameter | : | 8-3/4 in |
| Seal Material | : | Felt |
| Series | : | RFP |
| Temperature Rating | : | 250 deg F |
| Type | : | Non-Expansion Round/Straight Bore |
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy split cast iron housing
