Sealmaster® 737284 MORUSFC5000-215
  1. pin-int

Sealmaster® 737284 MORUSFC5000-215

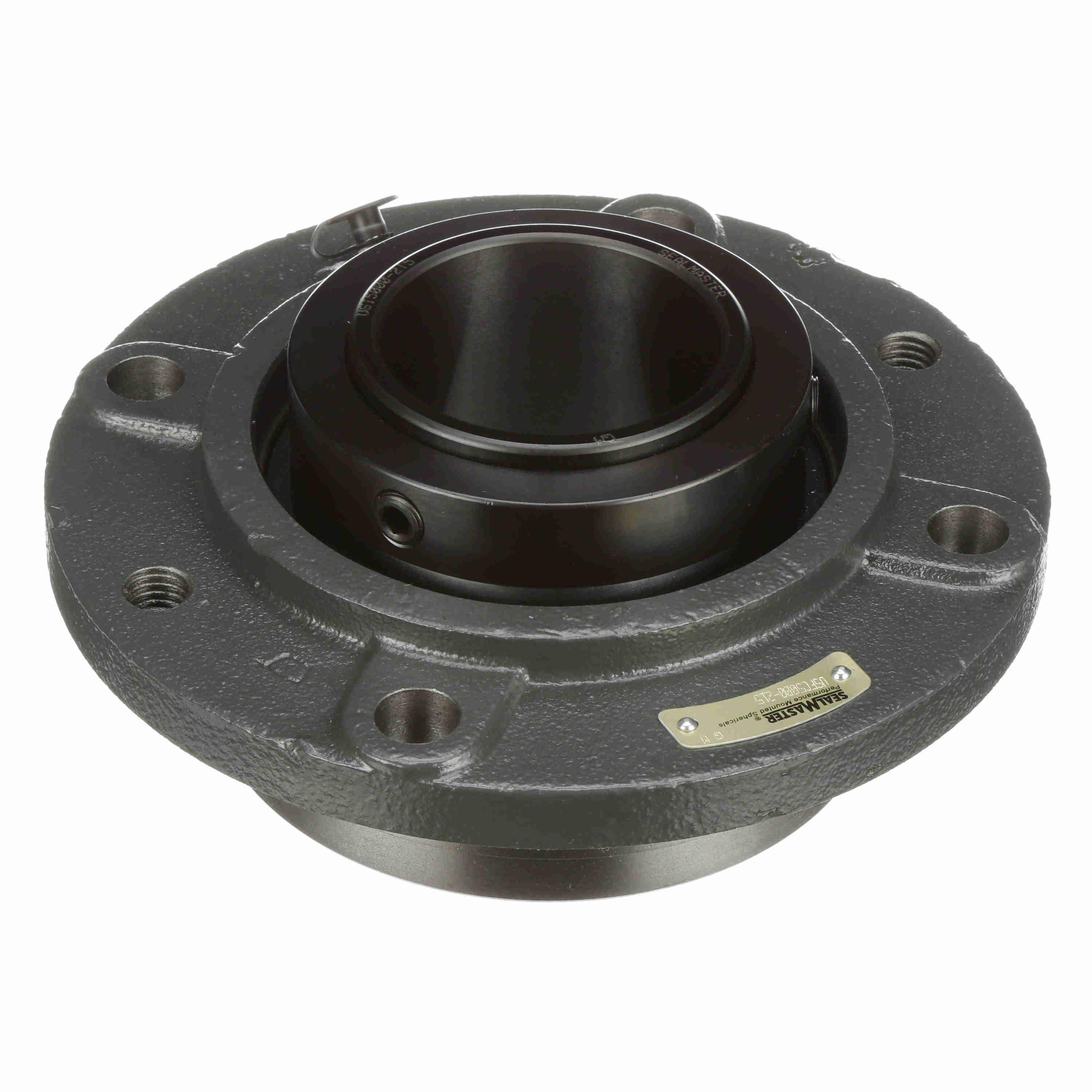

Sealmaster® 737284 USFC5000 Non-Expansion Round/Straight Bore Unitized Spherical Roller Bearing Unit, 2-15/16 in Dia Bore, 7-1/2 in Dia Bolt Circle, 4-Bolt Flange Mount, 8-3/4 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORUSFC5000-215
  • Alt Part Number: USFC5000-215
  • MPN: 737284
  • UPC: 662461362310
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.

Sealmaster® Unitized Spherical Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: USFC5000, 2-15/16 in Bore, 7-1/2 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 8-3/4 in Overall Length/Diameter, 3-7/8 in Overall Depth, Collar Mount/Set Screw Locking Device, Cast Iron Bearing, Felt Seal, 47447 lb Dynamic/65610 lb Static Load, 3000 rpm Maximum, -20 to 220 deg F, Uncoated

Bearing Material      :      Cast Iron
Bolt Circle Diameter      :      7-1/2 in
Bore Diameter      :      2-15/16 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      47447 lb Dynamic/65610 lb Static
Locking Device      :      Collar Mount/Set Screw
Maximum Speed      :      3000 rpm
Overall Depth      :      3-7/8 in
Overall Length/Diameter      :      8-3/4 in
Seal Material      :      Felt
Series      :      USFC5000
Temperature Rating      :      -20 to 220 deg F
Type      :      Non-Expansion Round/Straight Bore
  • Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
  • The wide outer race, coupled with innovative rolling element geometries, provides increased load capacity
  • Retainer metal
  • 52100 black oxide coated steel bearing
  • Wide race and rollers and steel cage for high dynamic load ratings
  • Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
  • Powder coat epoxy cast iron housing
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_737262_Specification_Sheet.pdf
