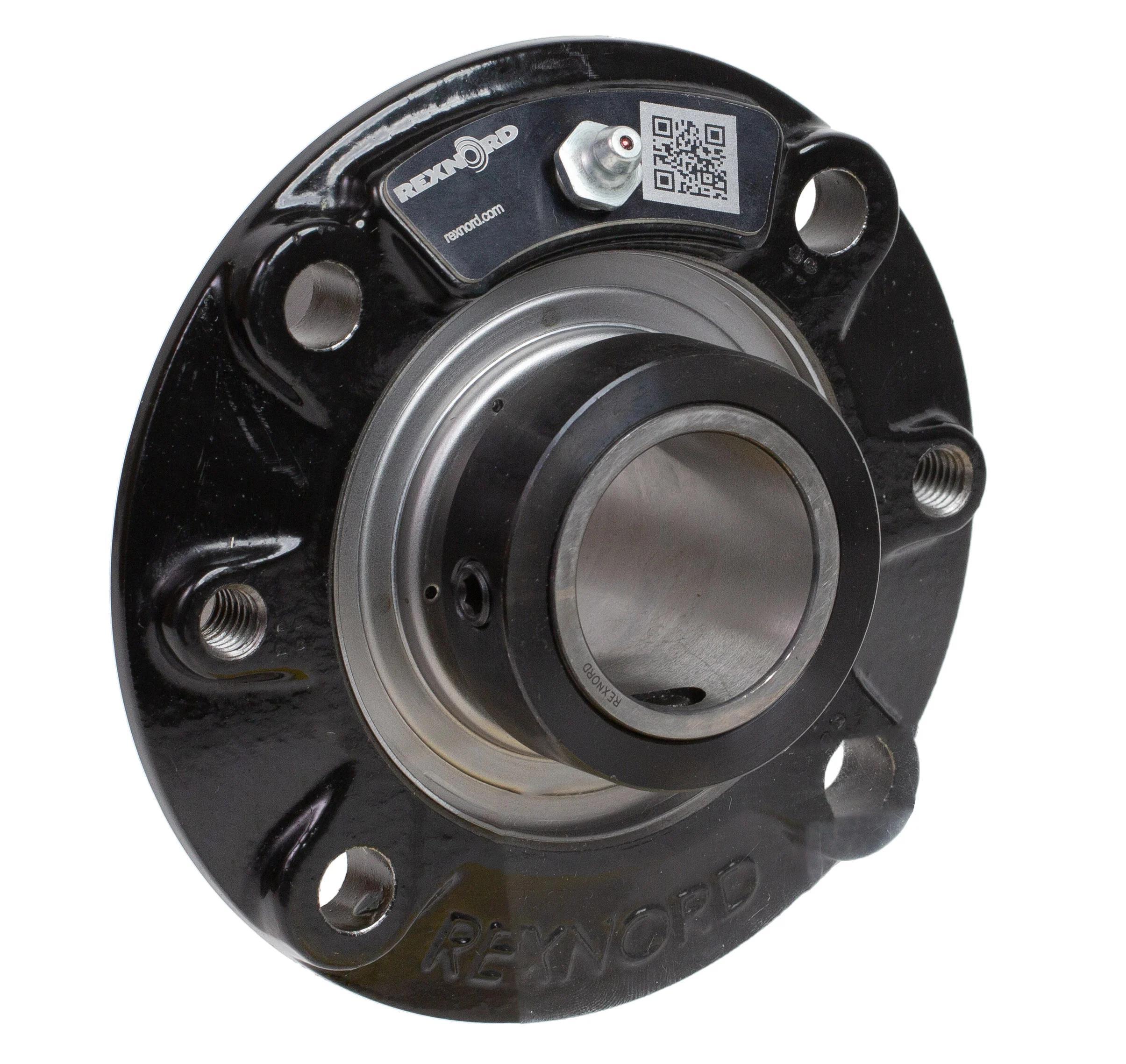

Rexnord® 10479867 REXFC215T
Rexnord® 10479867 FC Series Fixed Flanged Cartridge Block Spherical Roller Bearing, 2-15/16 in Dia Bore, 5.3 in L Bolt Center-to-Center, 3-3/4 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 8-3/4 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Rexnord®
- Part Number: REXFC215T
- Alt Part Number: FC215T
- MPN: 10479867
- UPC: 782934929670
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Rexnord® Flanged Cartridge Block Spherical Roller Bearing, Fixed, Series: FC Series, 2-15/16 in Bore, 5.3 in Bolt Center-to-Center Length, 3-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 8-3/4 in Overall Length/Diameter, 3.65 in Overall Depth, Single Set Screw Collar Locking Device, Cast Iron Bearing, 41000 lb Dynamic/48420 lb Static Load, 2090 rpm Maximum, -40 to 250 deg F, Powder Coated
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 5.3 in |
| Bolt Circle Diameter | : | 3-3/4 in |
| Bore Diameter | : | 2-15/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 41000 lb Dynamic/48420 lb Static |
| Locking Device | : | Single Set Screw Collar |
| Maximum Speed | : | 2090 rpm |
| Overall Depth | : | 3.65 in |
| Overall Length/Diameter | : | 8-3/4 in |
| Series | : | FC Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Fixed |
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Factory set clearance and lubrication
- Extended inner ring, separable outer rings
- Triple lip seal
- Exxon Ronex™ MP grease
