Timken® SET4-900SA TIMSET4

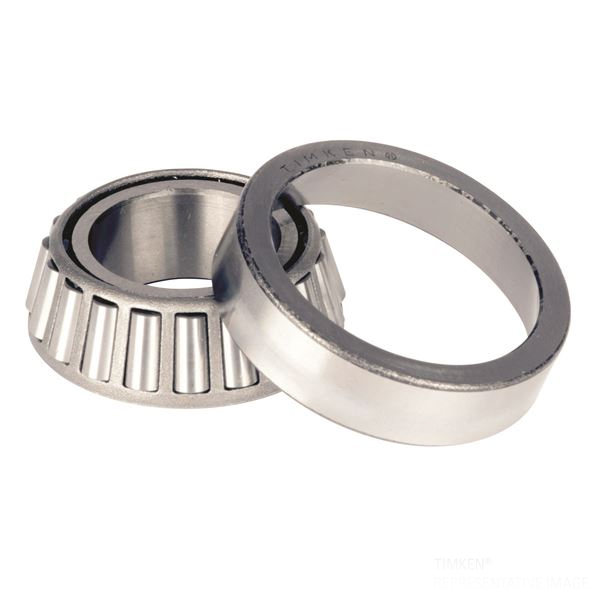

The Timken SET4 tapered roller bearing set, manufacturer part number SET4-900SA, includes the L44649 bearing cone (inner ring and roller assembly) and L44610 bearing cup (outer ring). This single-row Type TS tapered roller bearing assembly has a 1-1/16 in (26.988 mm) bore, 1.9800 in (50.292 mm) outside diameter and 0.5600 in (14.224 mm) assembled width. The L44649 cone is 0.5800 in (14.732 mm) wide and the L44610 cup is 0.4200 in (10.668 mm) wide. Timken rates the L44649/L44610 combination at 8,010 lbf (35,600 N) dynamic radial load and 7,400 lbf (32,900 N) static radial load. SET4 supplies the tapered roller bearing cone and cup together as a matched bearing set. The tapered roller design supports combined radial and axial loading and is commonly used where a separable cone-and-cup bearing arrangement is required. Verify bearing dimensions and application requirements before replacement.

• Timken SET4 / SET4-900SA tapered roller bearing set
• Includes L44649 cone and L44610 cup
• Single-row Type TS tapered roller bearing
• Cone and cup supplied together

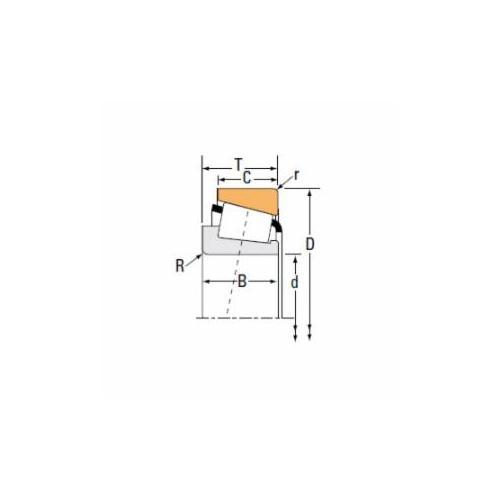

• 1-1/16 in (26.988 mm) bore diameter
• 1.9800 in (50.292 mm) outside diameter
• 0.5600 in (14.224 mm) assembled width
• L44649 cone width: 0.5800 in (14.732 mm)
• L44610 cup width: 0.4200 in (10.668 mm)
• 8,010 lbf (35,600 N) dynamic radial load rating
• 7,400 lbf (32,900 N) static radial load rating
• Steel bearing construction
• Tapered roller design accommodates combined radial and axial loads

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_27687_90022_Catalog.pdf
