Timken® SET17-900SA TIMSET17

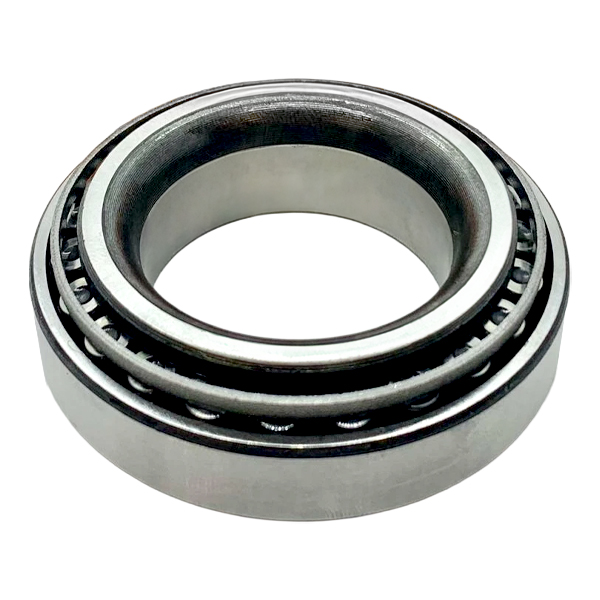

The Timken SET17 tapered roller bearing set, manufacturer part number SET17-900SA, includes the L68149 bearing cone (inner ring and roller assembly) and L68111 bearing cup (outer ring). This single-row Type TS tapered roller bearing assembly has a 1.3775 in (34.989 mm) bore, 2.3612 in (59.974 mm) outside diameter and 0.625 in (15.875 mm) assembled width. The L68149 cone has a 0.6600 in (16.764 mm) inner ring width, while the L68111 cup has a 0.4700 in (11.938 mm) outer ring width. Timken rates the L68149/L68111 bearing combination at 10,200 lbf (45,500 N) dynamic radial load and 11,000 lbf (48,700 N) static radial load. SET17 supplies the tapered roller bearing cone and cup together as a complete bearing set. The tapered roller design accommodates combined radial and axial loads and uses separable inner cone and outer cup components for installation. Verify bearing dimensions and application requirements when replacing an existing bearing set.

• Timken SET17 / SET17-900SA tapered roller bearing set
• Includes L68149 cone and L68111 cup
• Single-row Type TS tapered roller bearing
• 1.3775 in (34.989 mm) bore diameter
• 2.3612 in (59.974 mm) outside diameter
• 0.625 in (15.875 mm) assembled width
• L68149 cone width: 0.6600 in (16.764 mm)
• L68111 cup width: 0.4700 in (11.938 mm)
• 10,200 lbf (45,500 N) dynamic radial load rating
• 11,000 lbf (48,700 N) static radial load rating
• Steel bearing and cage construction
• Cone and cup supplied together as a complete bearing set
• Tapered roller design accommodates combined radial and axial loading
