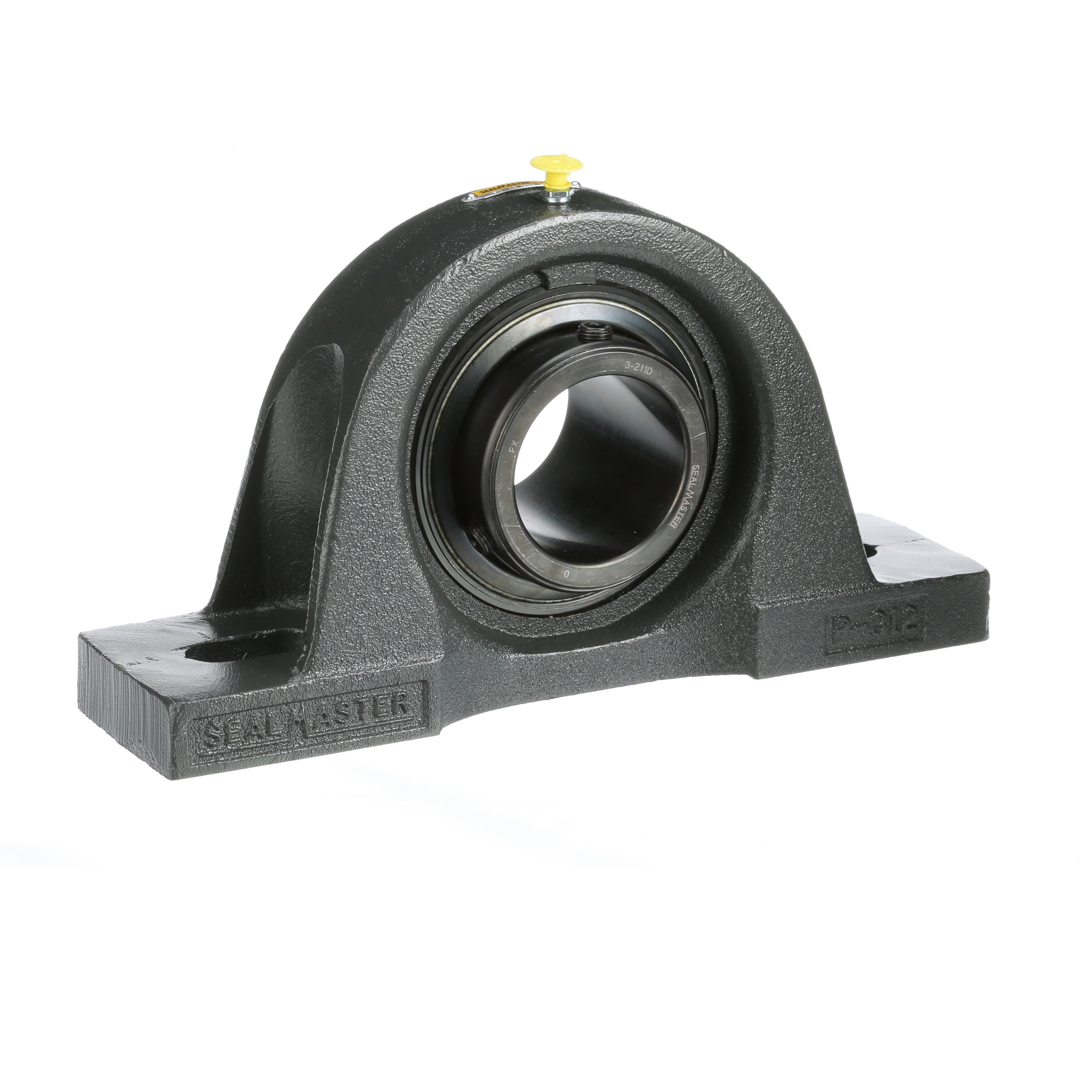

Sealmaster® 709641 MORMPD43CXU
Sealmaster® 709641 MPD Medium Duty Pillow Block Ball Bearing Unit, 2-11/16 in Dia Bore, 7-7/8 to 10-1/8 in L Bolt Center-to-Center, 3-1/2 in Base to Bore Centerline, 13 in OAL x 7 in OAH
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORMPD43CXU
- Alt Part Number: MPD-43 CXU
- MPN: 709641
- UPC: 662461050248
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
Sealmaster® Pillow Block Ball Bearing Unit, Medium Duty, Series: MPD, 2-11/16 in Bore, 7-7/8 to 10-1/8 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 13 in Overall Length, 3-1/2 in Overall Width, 7 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, Double Set Screw Locking Device, Felt Seal, Non-Expansion (Fixed) Expansion, 14839 lb Dynamic Load, -40 to 200 deg F, 3600 rpm Maximum, Cast Iron, Uncoated
| Base Width | : | 3-1/2 in |
| Base to Bore Centerline | : | 3-1/2 in |
| Bolt Center-to-Center Length | : | 7-7/8 to 10-1/8 in |
| Bore Diameter | : | 2-11/16 in |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 14839 lb Dynamic |
| Locking Device | : | Double Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 3600 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 7 in |
| Overall Length | : | 13 in |
| Overall Width | : | 3-1/2 in |
| Seal Type | : | Felt |
| Series | : | MPD |
| Temperature Rating | : | -40 to 200 deg F |
| Type | : | Medium Duty |
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
- Felt labyrinth seal and flinger for dusty and dirty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
