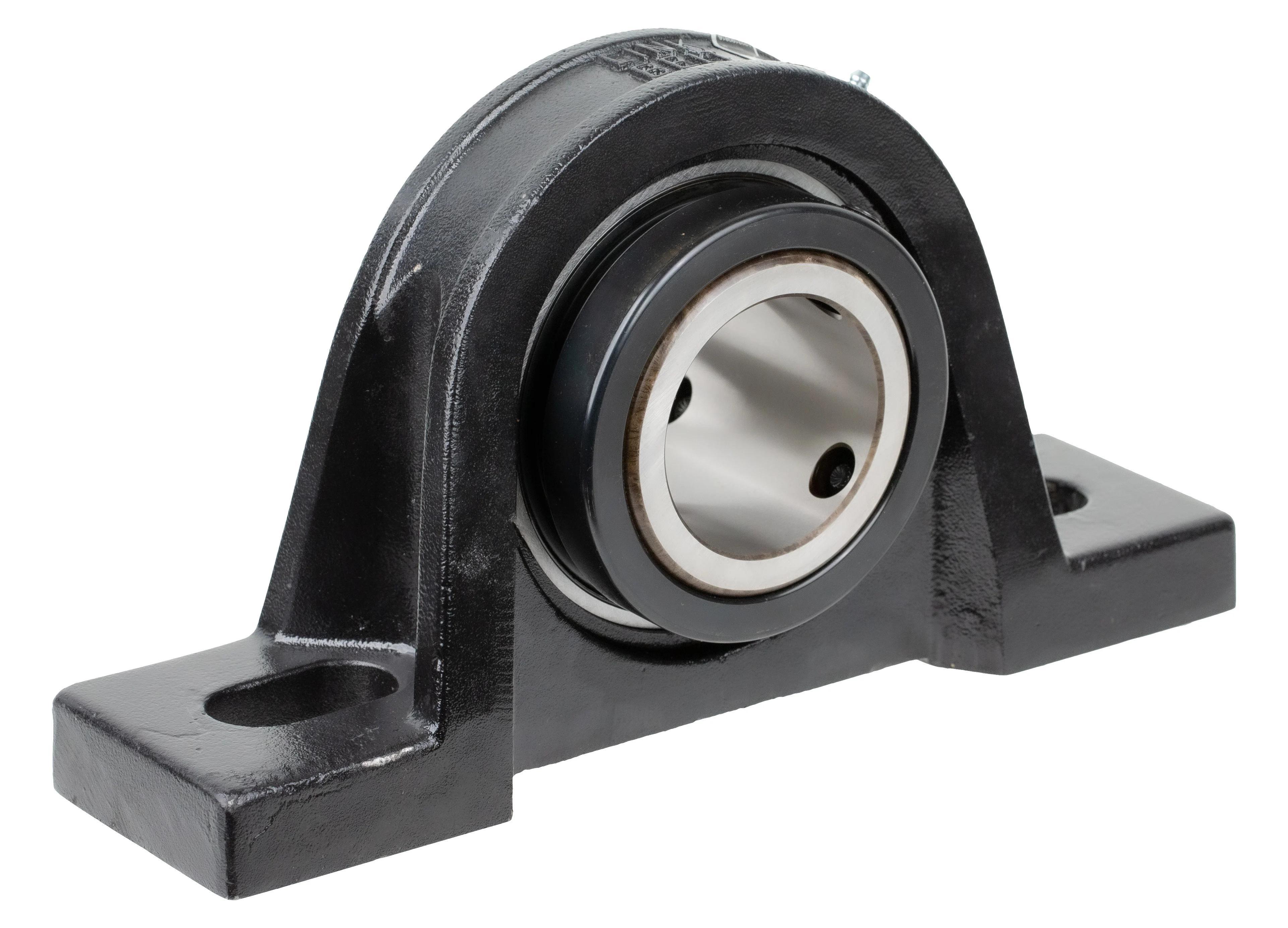

Link-Belt® 10442790 LNKMPDU243N

200 series medium duty ball bearings provide design and performance features developed by decades of experience in supplying precision ball bearing inserts for other major mounted bearing manufacturers and complete mounted units to machinery and equipment manufacturers. They are priced competitively to bearings of comparable construction and design. In addition to sound basic design and construction, special features minimize the three most common causes of premature bearing failure loosening of bearings on rotating shafts, entrance of contaminants or loss of lubricant due to seal failure and insufficient housing strength.

Link-Belt® Pillow Block Ball Bearing Unit, Medium Duty, Series: 200, 2-11/16 in Bore, 9 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 13 in Overall Length, 3-5/8 in Overall Width, 7 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-1/2 in Base Width, Double Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 12920 lb Dynamic/9010 lb Static Load, 225 deg F, 3850 rpm Maximum, Cast Iron, Uncoated

• Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
• Spring locking collars of setscrew locking security, locks bearing to the shaft
• Optimum protection from loss of lubricant and entrance of dirt and contaminants is achieved with positive lip-type contact seals
• Housings are designed to withstand bearing load ratings, external vibration and shock
• Spherically seated bearing insert with anti-rotation device
• Standard backing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
• VIDEO LINK https://www.youtube.com/embed/ZRnGctS61pk?wmode=opaque&autoplay=0&autohide=1&showinfo=0&controls=2&rel=0&enablejsapi=1
