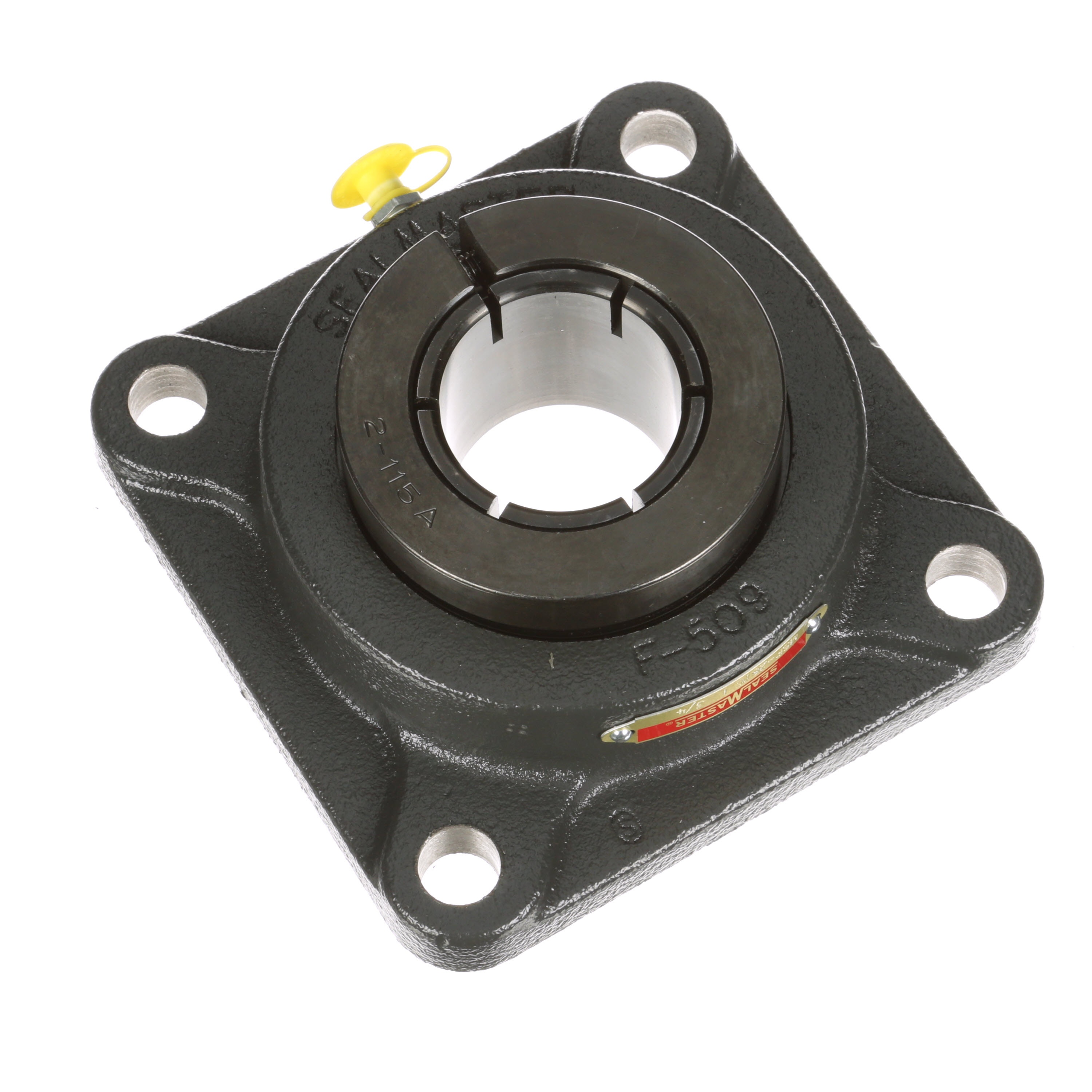

Sealmaster® 706060 MORMSF19TC
Sealmaster® 706060 MSF Non-Expansion Round Straight Standard-Duty Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-5/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORMSF19TC
- Alt Part Number: MSF-19TC
- MPN: 706060
- UPC: 662461035092
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard-Duty, Series: MSF, 1-3/16 in Bore, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-5/8 in Overall Length/Diameter, 1-13/16 in Overall Depth, 4-5/8 in Overall Height, Skwezloc® Locking Device, Steel Bearing, Nitrile Rubber Seal, 5782 lb Dynamic/3493 lb Static Load, 4650 rpm Maximum, -20 to 250 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Bore Diameter | : | 1-3/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Locking Device | : | Skwezloc® Locking |
| Maximum Speed | : | 4650 rpm |
| Overall Depth | : | 1-13/16 in |
| Overall Height | : | 4-5/8 in |
| Overall Length/Diameter | : | 4-5/8 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | MSF |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Non-Expansion Round Straight Standard-Duty |
- Wide outer ring
- Single lip contact seal consists of a nitrile rubber washer in metal shroud to shield the lip from large contaminants
- Zone hardened inner race
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc concentric locking for near perfect concentricity
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
