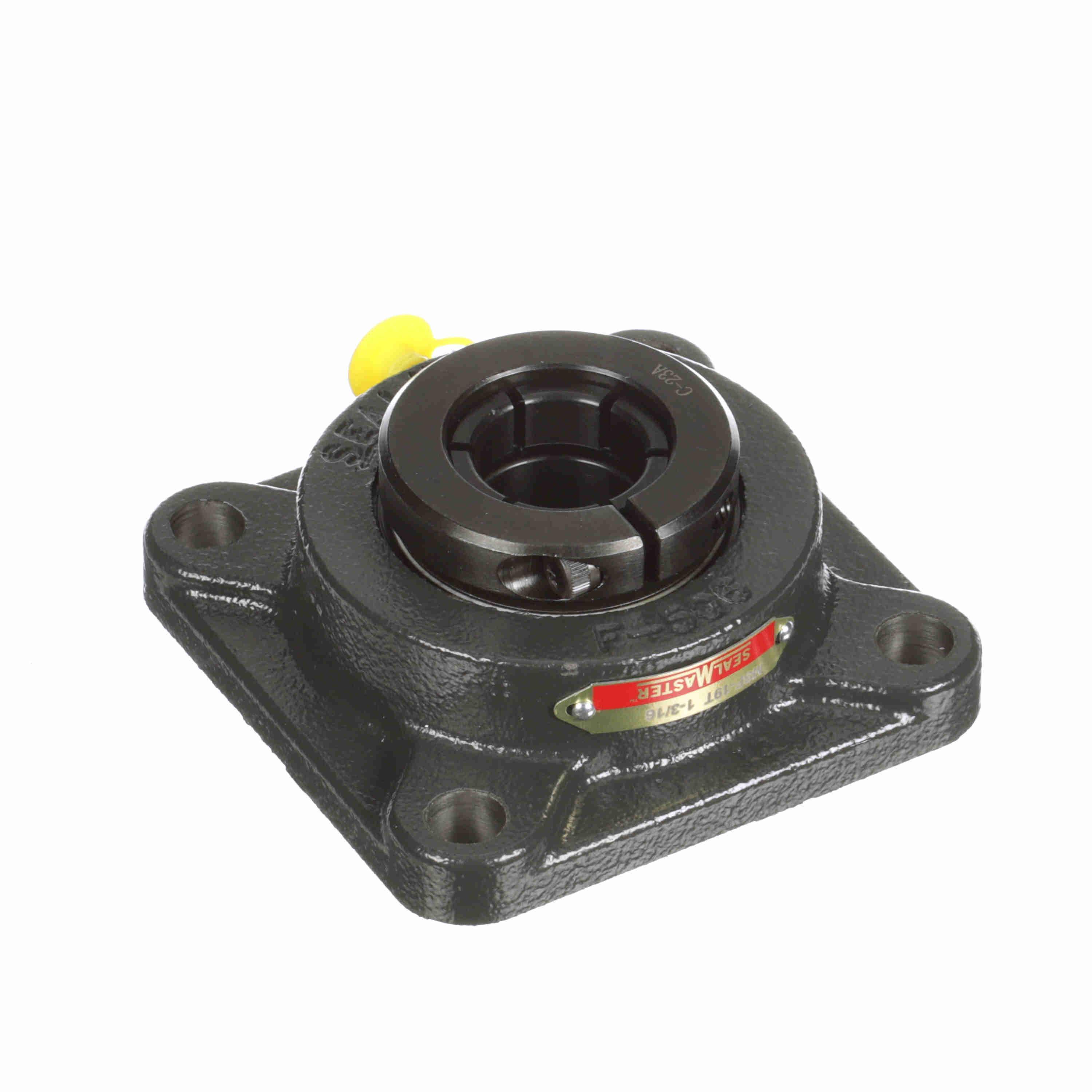

Sealmaster® 705679 MORMSF19T
Sealmaster® 705679 MSF Non-Expansion Standard Duty Round/Straight Bore Ball Bearing Unit With Flinger, 1-3/16 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-5/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORMSF19T
- Alt Part Number: MSF-19T
- MPN: 705679
- UPC: 662461032121
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
Sealmaster® Ball Bearing Unit, Non-Expansion Standard Duty Round/Straight Bore, Series: MSF, 1-3/16 in Bore, 3-5/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-5/8 in Overall Length/Diameter, 1-13/16 in Overall Depth, 4-5/8 in Overall Height, Skwezloc® Collar Locking Device, 52100 Steel Bearing, Felt Seal, 5782 lb Dynamic/3493 lb Static Load, 6500 rpm Maximum, 250 deg F, Uncoated
| Bearing Material | : | 52100 Steel |
| Bolt Center-to-Center Length | : | 3-5/8 in |
| Bore Diameter | : | 1-3/16 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Locking Device | : | Skwezloc® Collar |
| Maximum Speed | : | 6500 rpm |
| Overall Depth | : | 1-13/16 in |
| Overall Height | : | 4-5/8 in |
| Overall Length/Diameter | : | 4-5/8 in |
| Seal Material | : | Felt |
| Series | : | MSF |
| Temperature Rating | : | 250 deg F |
| Type | : | Non-Expansion Standard Duty Round/Straight Bore |
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Skwezloc® is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- +/- 2 deg static misalignment
- Wide black oxided outer ring with direct lubrication inlet hole
- Wide zone hardened inner ring
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
Instruction/Installation Manual
