Sealmaster® 700449 MORSF24

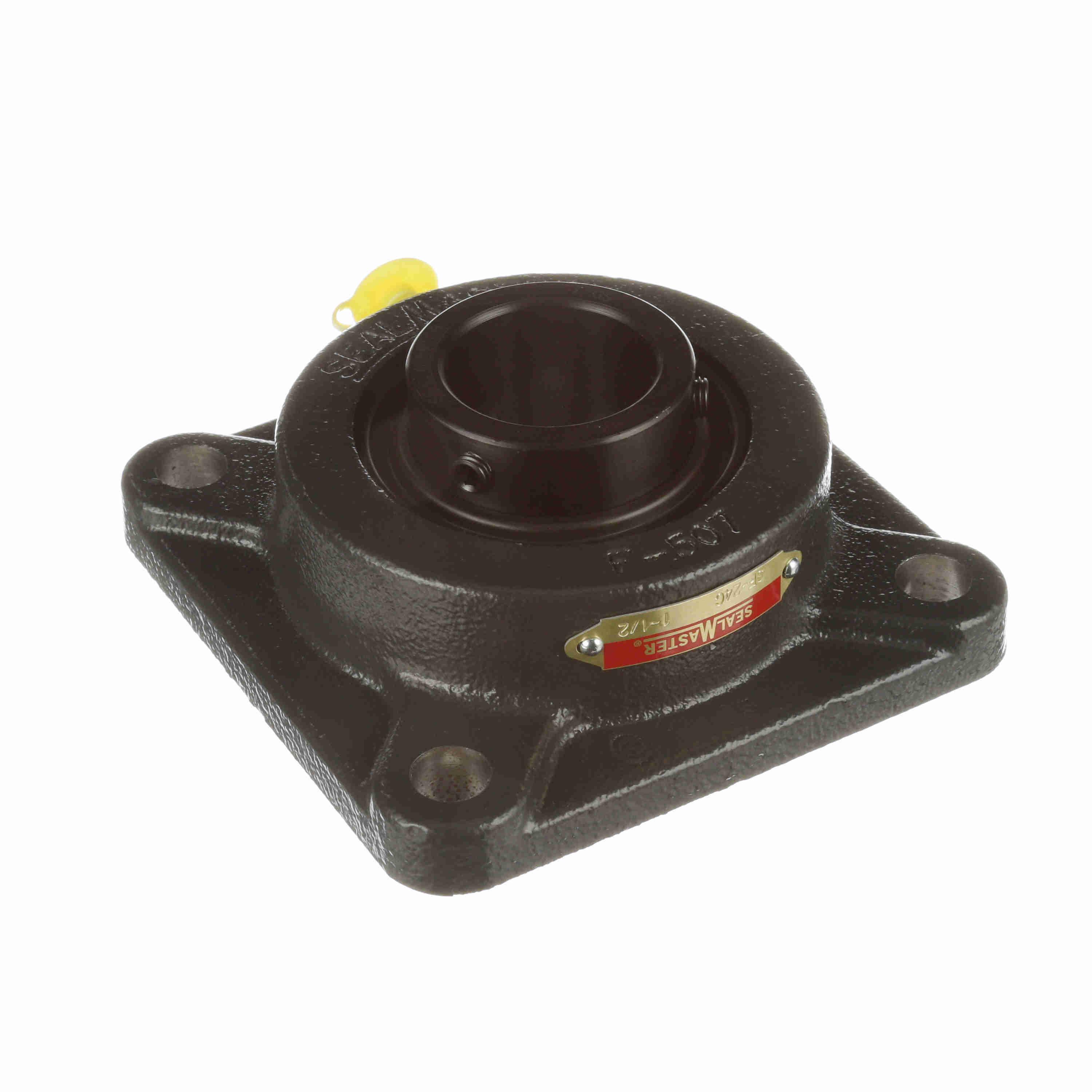

Sealmaster® 700449 SF Series Non-Expansion Round Straight Standard-Duty Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORSF24
- Alt Part Number: SF-24
- MPN: 700449
- UPC: 662461003510
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
Sealmaster® Flange Mount Ball Bearing Unit, Non-Expansion Round Straight Standard-Duty, Series: SF Series, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 2-1/64 in Overall Depth, 5-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Felt Seal, 7340 lb Dynamic/4467 lb Static Load, 4150 rpm Maximum, -20 to 250 deg F, Uncoated
| Bearing Material | : | Steel |
| Bolt Center-to-Center Length | : | 4 in |
| Bore Diameter | : | 1-1/2 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 7340 lb Dynamic/4467 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4150 rpm |
| Overall Depth | : | 2-1/64 in |
| Overall Height | : | 5-1/8 in |
| Overall Length/Diameter | : | 5-1/8 in |
| Seal Material | : | Felt |
| Series | : | SF Series |
| Temperature Rating | : | -20 to 250 deg F |
| Type | : | Non-Expansion Round Straight Standard-Duty |
- Wide outer ring
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Stamped steel rubber mounted flange
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
