Browning® 767895 BROVF4S224
  1. pin-int

Browning® 767895 BROVF4S224

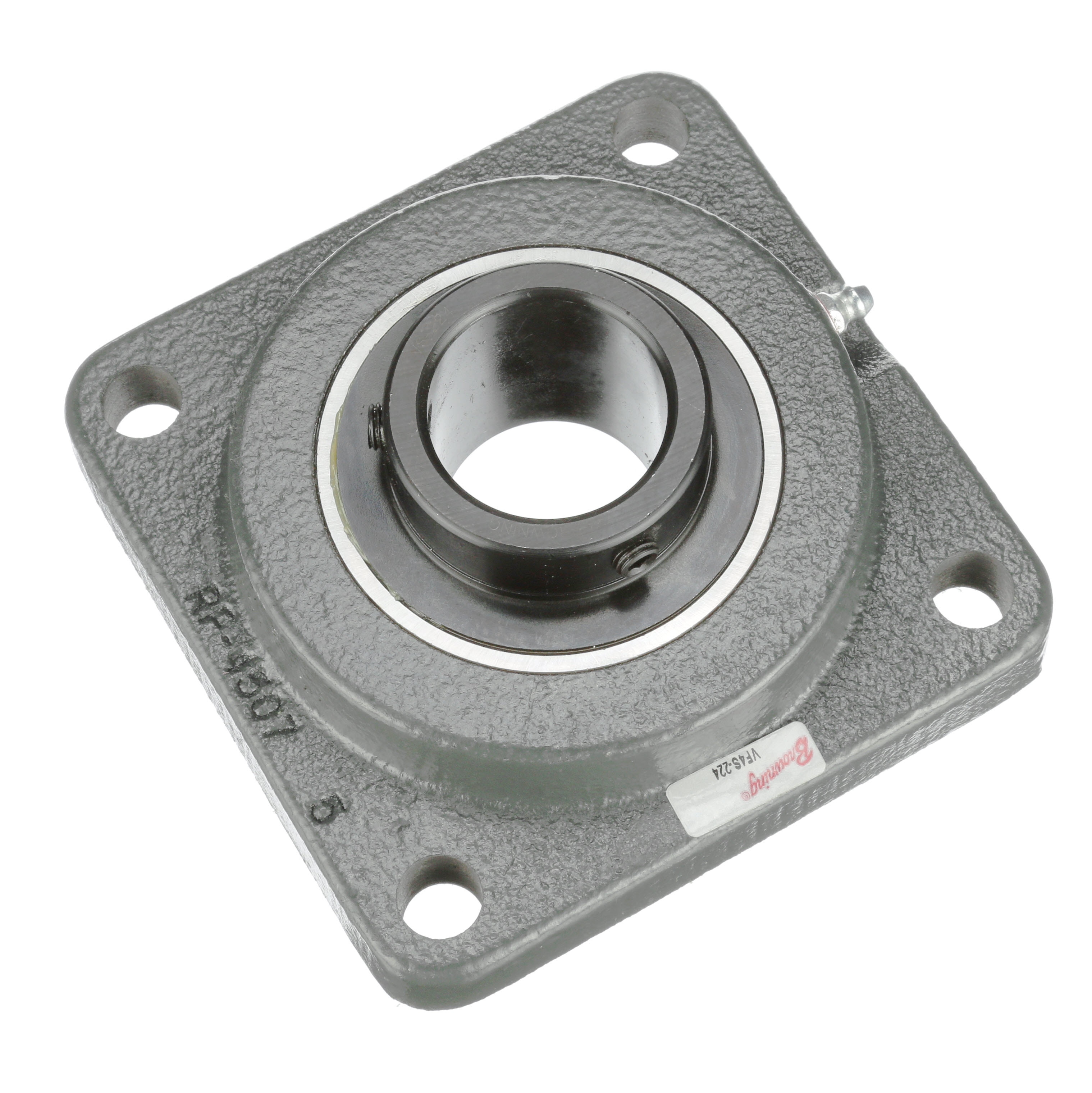

Browning® 767895 VF4S 200 Normal Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF4S224
  • Alt Part Number: VF4S-224
  • MPN: 767895
  • UPC: 662289522743
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Flange Mount Ball Bearing Unit, Normal Duty Non-Expansion Round/Straight Bore, Series: VF4S 200, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 2-1/64 in Overall Depth, 5-1/8 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 7340 lb Dynamic/4467 lb Static Load, 3500 rpm Maximum, -20 to 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      4 in
Bore Diameter      :      1-1/2 in
Finish      :      Gray Painted
Flange Mounting Type      :      4-Bolt
Load Capacity      :      7340 lb Dynamic/4467 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      3500 rpm
Overall Depth      :      2-1/64 in
Overall Height      :      5-1/8 in
Overall Length/Diameter      :      5-1/8 in
Seal Material      :      Nitrile Rubber
Series      :      VF4S 200
Temperature Rating      :      -20 to 200 deg F
Type      :      Normal Duty Non-Expansion Round/Straight Bore
  • Powder coat epoxy cast iron housing
  • Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal and flinger
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF4S232S_Specification_Sheet.pdf
