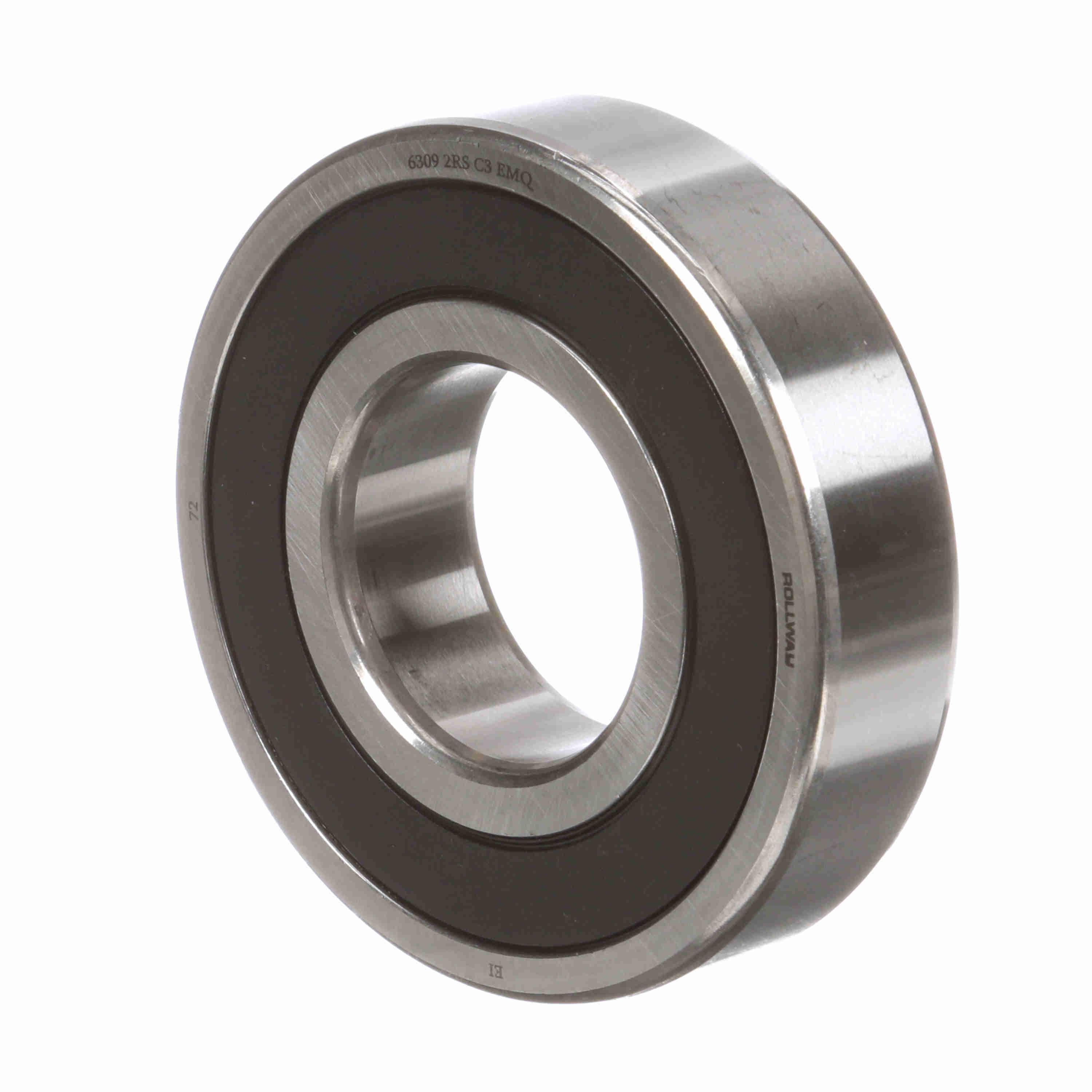

Rollway® 6309 2RS C3 EMQ ROL6309-2RS

Deep groove ball bearings are non-separable, comparatively rigid radial bearings. their balls are guided in deep radial running grooves. They are characterized by a high radial and axial load carrying capacity and can operate at very high speed. Combined loads are accommodated to an optimum degree. In fact, at higher speeds they are often better suited to transmit thrust loads than the ball thrust bearing. For these reasons and also economical price, it is the most widely used bearing.

Rollway® Deep Groove Ball Bearing, Round Straight Bore Unmounted, Series: 6300, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, Double Seal Closure, 52.8 kN Dynamic/31.7 kN Static Load, 52100 Steel Bearing, Synthetic Rubber Seal, Pressed Steel Cage, 4500 rpm Grease Maximum, -30 to 120 deg C

• Quiet and smooth running even at higher speed
• Seals are best protection against contamination in tough environments
• Rollway® quality control procedure
• C3 radial clearance
• Seals on both sides of bearing
• Electric motor quality

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Morse_32002RS_Catalog.pdf
