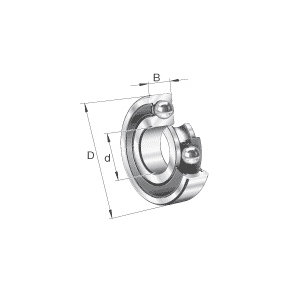

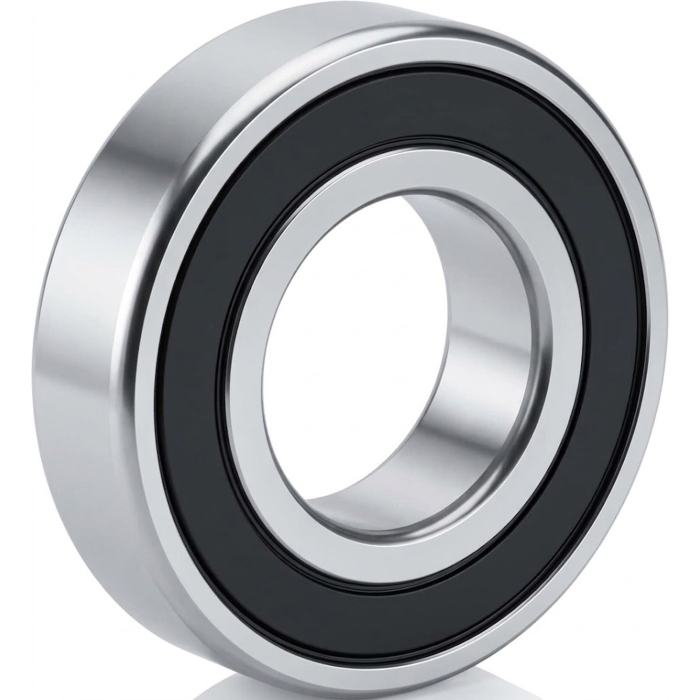

FAG 6309-2RSR-L038-C3 Sealed Deep Groove Ball Bearing - 45 x 100 x 25 mm

FAG 6309-2RSR-L038-C3 Deep Groove Ball Bearing, 45 x 100 x 25 mm, Double Contact Seals, C3 Clearance, L038 Grease, 56 kN Dynamic / 31.5 kN Static

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6309-2RSC3
  • MPN: 6309-2RSR-L038-C3
  • UPC: 4012802650846
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG 6309-2RSR-L038-C3 combines a 45 mm bore, 100 mm outside diameter and 25 mm width in a single-row 63 Series deep groove ball bearing. Two RSR contact lip seals provide integral contamination protection and lubricant retention, making this version suited to equipment where an open bearing would require additional sealing. C3 radial internal clearance is larger than normal, and L038 specifies Mobil Polyrex EM grease. Performance ratings are 56 kN dynamic, 31.5 kN static and 2.24 kN fatigue load, with a 4,300 rpm maximum speed and -20 to 100 °C operating range. The 6309 size is commonly selected for larger motor, pump, gearbox, fan and material-handling shafts that need a sealed metric bearing with substantial radial capacity.

Bearing Material      :      Steel
Bore Diameter      :      45 mm
Cage Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Uncoated
Load Capacity      :      56000 N Dynamic/31500 N Static/2180 N Fatigue
Maximum Speed      :      4300 rpm
Number of Rows      :      1
Outside Diameter      :      100 mm
Seal Material      :      Buna-N
Series      :      63..-2RSR
Temperature Rating      :      -30 to 110 deg C
Width      :      25 mm
Prelubricated sealed 63 Series deep groove ball bearing; 45 mm bore x 100 mm OD x 25 mm width; larger 63 Series cross section is intended for substantial radial capacity in a standard metric envelope; 2RSR contact lip seals protect both sides while retaining the factory lubricant; C3 radial internal clearance is greater than normal; L038 Mobil Polyrex EM grease; supports radial loading and axial load in either direction; 56 kN dynamic / 31.5 kN static / 2.24 kN fatigue load ratings; 4,300 rpm maximum speed; -20 to 100 C operating range; strong choice for larger electric motors, pumps, gear drives, fans and material-handling equipment.
