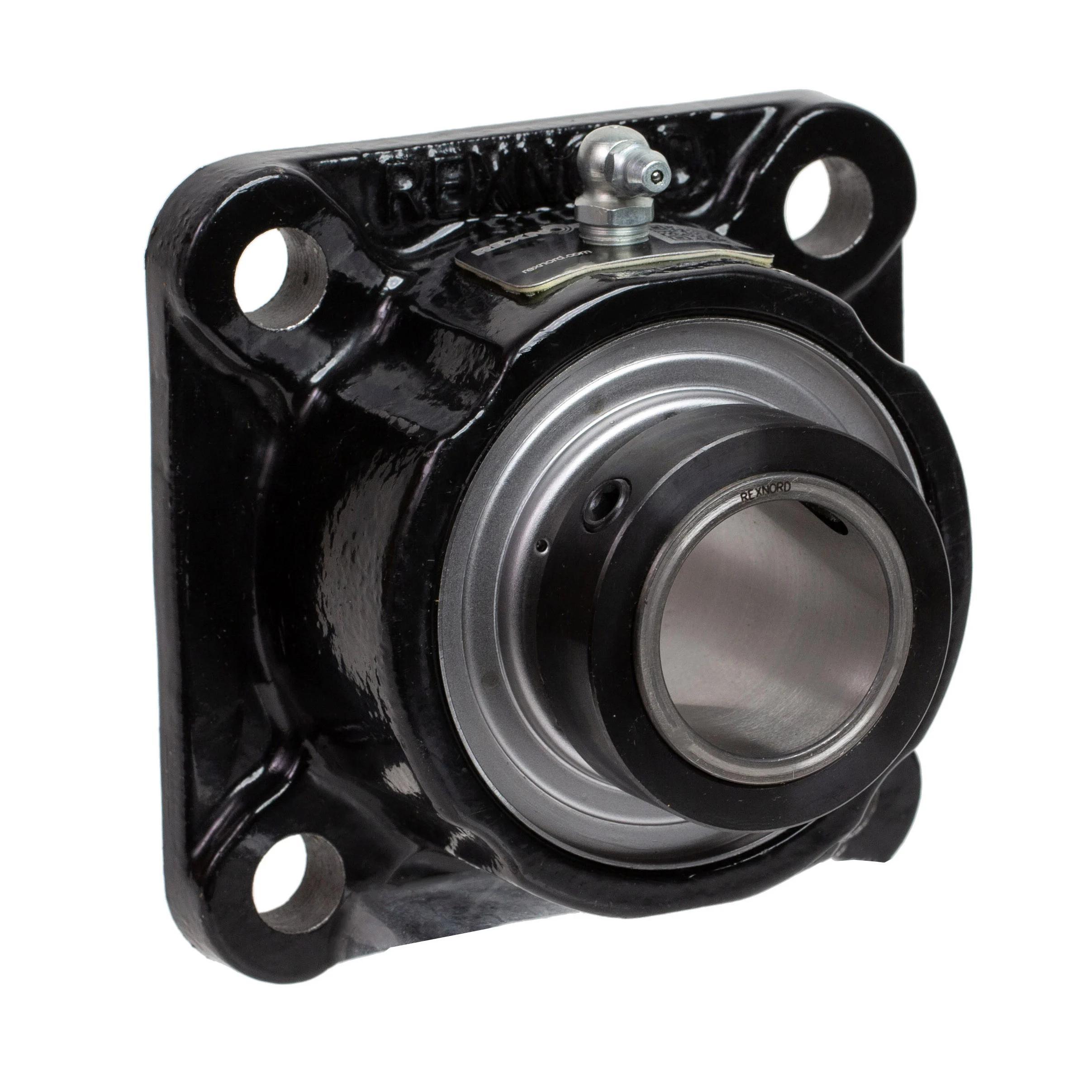

Rexnord® 10479789 REXFB308TE
Rexnord® 10479789 FB Series Expansion Flanged Block Spherical Roller Bearing, 3-1/2 in Dia Bore, 6.72 in L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 8-1/4 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Rexnord®
- Part Number: REXFB308TE
- Alt Part Number: FB308TE
- MPN: 10479789
- UPC: 782934930454
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Rexnord® Flanged Block Spherical Roller Bearing, Expansion, Series: FB Series, 3-1/2 in Bore, 6.72 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 8-1/4 in Overall Length/Diameter, 4.54 in Overall Depth, 8-1/4 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, 64000 lb Dynamic/77880 lb Static Load, 1710 rpm Maximum, -40 to 250 deg F, Powder Coated
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 6.72 in |
| Bore Diameter | : | 3-1/2 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Square |
| Load Capacity | : | 64000 lb Dynamic/77880 lb Static |
| Locking Device | : | Single Set Screw Collar |
| Maximum Speed | : | 1710 rpm |
| Overall Depth | : | 4.54 in |
| Overall Height | : | 8-1/4 in |
| Overall Length/Diameter | : | 8-1/4 in |
| Series | : | FB Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Expansion |
- 3 1/2 in shaft size, Cast iron housing, Expansion unit, Setscrew mounting collar, Triple lip seal, Exxon Ronex MP grease
