Link-Belt® 10429991 LNKFEB22456H

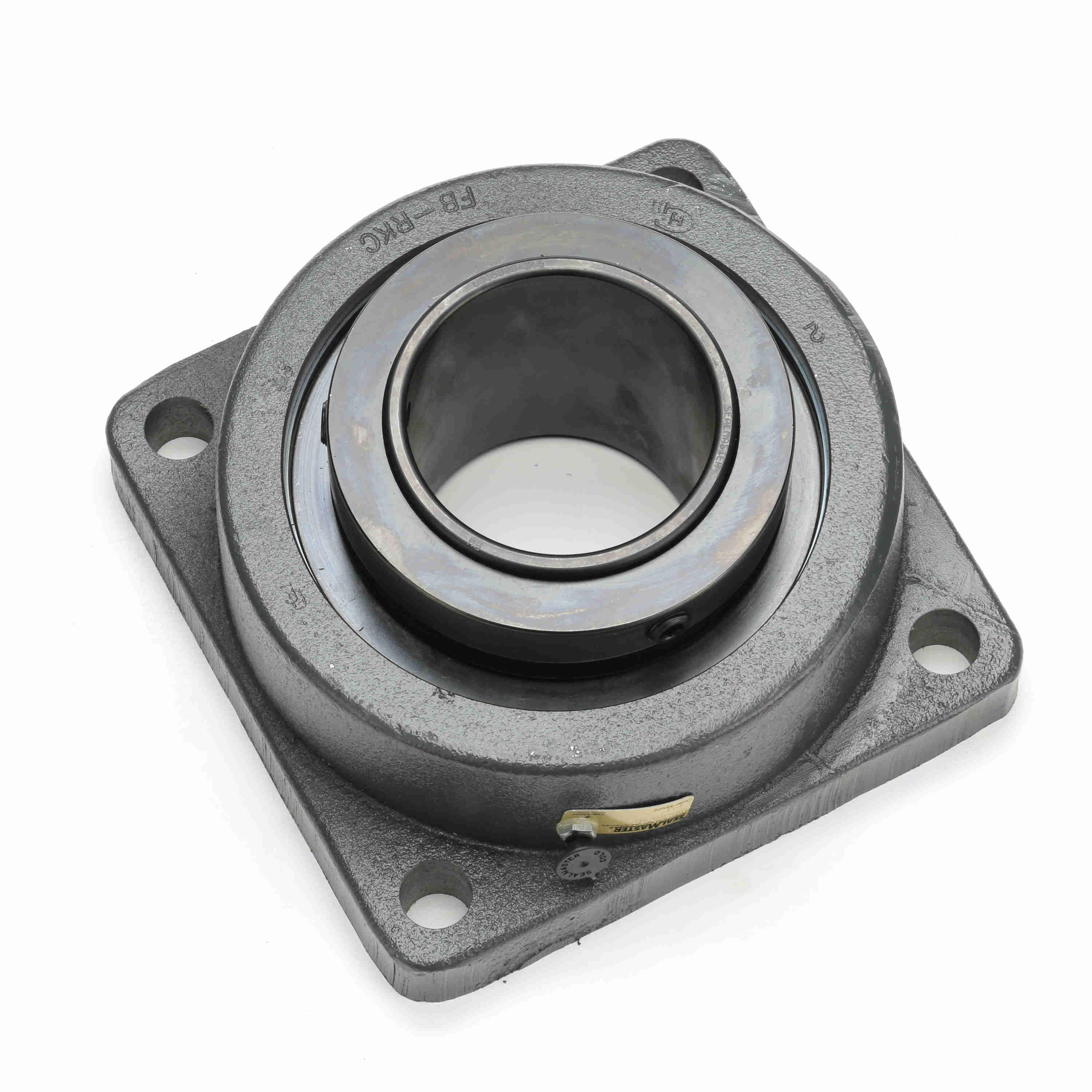

Link-Belt® 10429991 B22400 Expansion Flanged Block Spherical Roller Bearing, 3-1/2 in Dia Bore, 6-23/32 in L Bolt Center-to-Center, 9-1/2 in Dia Bolt Circle, 4-Bolt Square Flange Mount, 8-7/16 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKFEB22456H
  • Alt Part Number: FEB22456H
  • MPN: 10429991
  • UPC: 662327030476
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Flanged Block Spherical Roller Bearing, Expansion, Series: B22400, 3-1/2 in Bore, 6-23/32 in Bolt Center-to-Center Length, 9-1/2 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8-7/16 in Overall Length/Diameter, 4-9/16 in Overall Depth, 11-7/16 in Overall Height, Single Set Screw Collar Locking Device, Cast Iron Bearing, 51000 lb Dynamic/90700 lb Static Load, 1650 rpm Maximum, 225 deg F, Powder Coated

Bearing Material      :      Cast Iron
Bolt Center-to-Center Length      :      6-23/32 in
Bolt Circle Diameter      :      9-1/2 in
Bore Diameter      :      3-1/2 in
Finish      :      Powder Coated
Flange Mounting Type      :      4-Bolt Square
Load Capacity      :      51000 lb Dynamic/90700 lb Static
Locking Device      :      Single Set Screw Collar
Maximum Speed      :      1650 rpm
Overall Depth      :      4-9/16 in
Overall Height      :      11-7/16 in
Overall Length/Diameter      :      8-7/16 in
Series      :      B22400
Temperature Rating      :      225 deg F
Type      :      Expansion
  • Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
  • Double contoured retainer pockets
  • Type H floating labyrinth seals have multiple self centering rings held securely in a steel carrier
  • 4 deg misalignment capabilities
  • Factory set clearance and lubrication
