Martin D120S30 MARD120S30

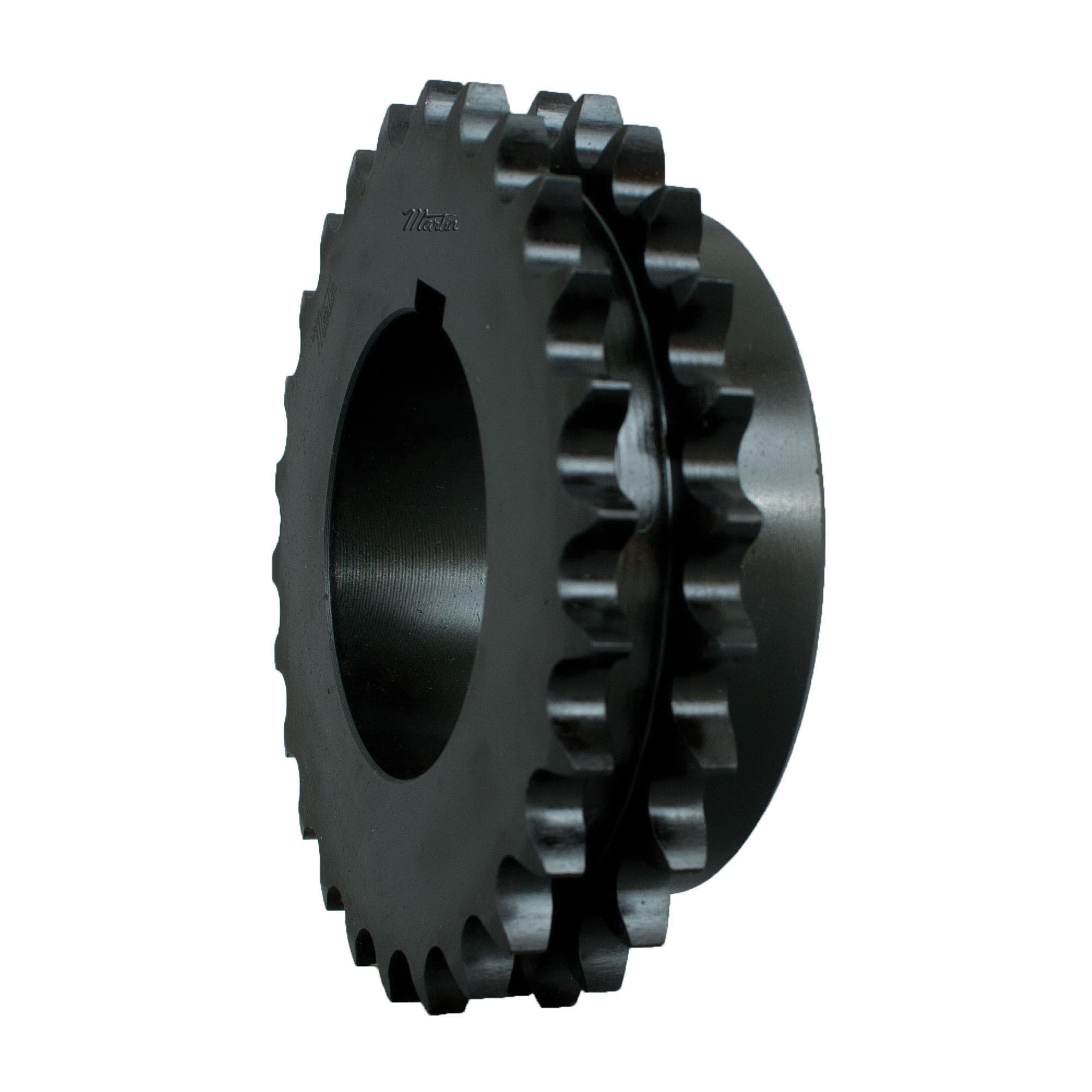

Martin D120S30 Type 15 Double Strand Solid Bushed Roller Chain Sprocket, 1.688 to 4.25 in Dia Bore, 15.172 in OD, #120 Chain, 30 Teeth, 1-1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARD120S30
  • MPN: D120S30
  • UPC: 697950209289
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 15 Double Strand Solid Bushed, 1.688 to 4.25 in Bore, 15.172 in OD, #120 Chain, 30 Teeth, 1-1/2 in Pitch, 14.3502 in Pitch Diameter, 6-1/2 in Diameter Hub, 3/4 in Keyway, 3-5/16 in Length Through Bore, MST® S1 Bushing, Steel

Bore Diameter      :      1.688 to 4.25 in
Bushing Type      :      MST® S1
Chain Size      :      #120
Hub Diameter      :      6-1/2 in
Keyway Size      :      3/4 in
Length Through Bore      :      3-5/16 in
Material      :      Steel
Number of Teeth      :      30
Outside Diameter      :      15.172 in
Pitch Diameter      :      14.3502 in
Pitch      :      1-1/2 in
Type      :      Type 15 Double Strand Solid Bushed
  • Interchangeable with other manufacturer's split-taper bushings
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
