Link-Belt® 10435440 LNKPL3W214E

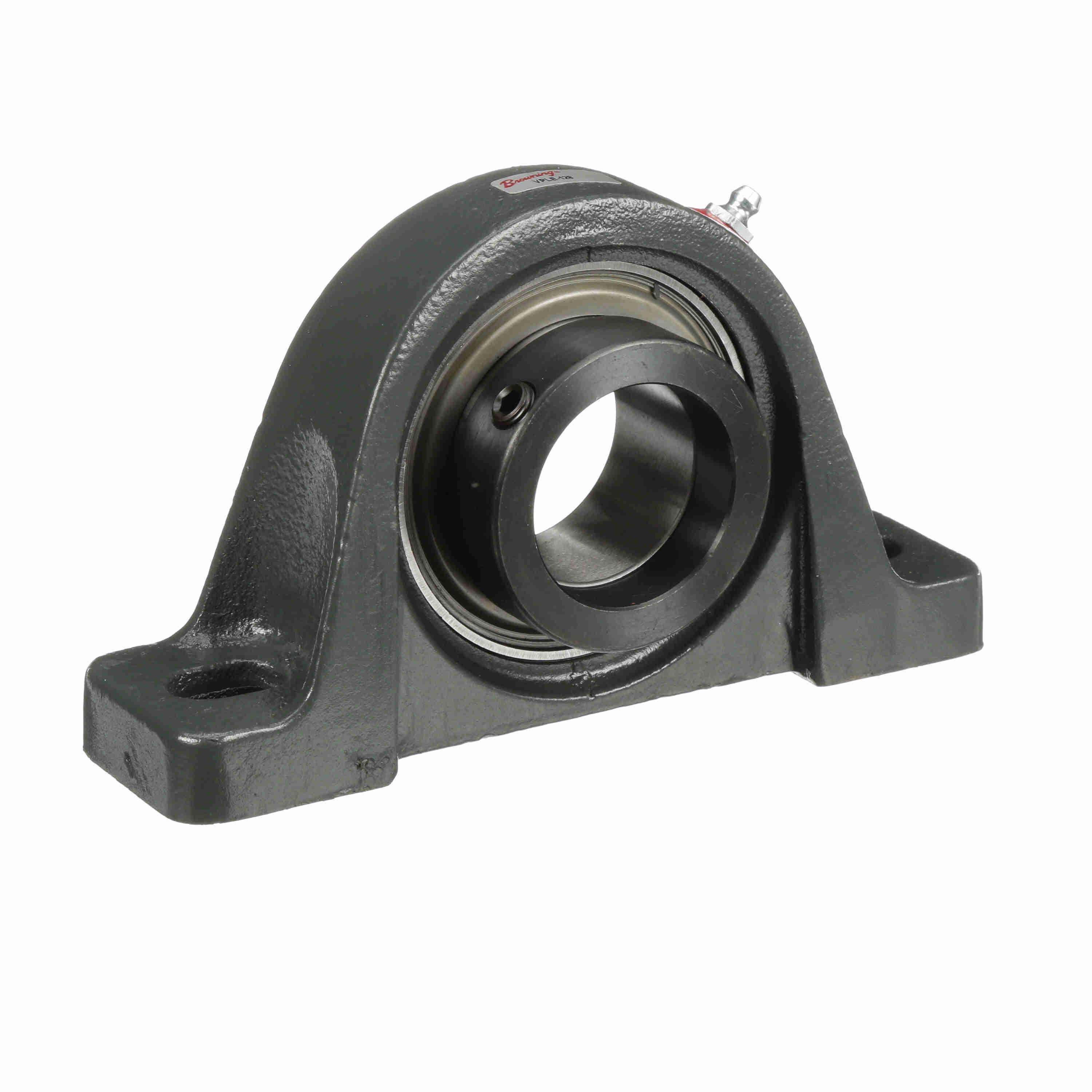

Link-Belt® 10435440 200 Intermediate Duty Pillow Block, 0.87 in Dia Bore, 4 in L Bolt Center-to-Center, 1.31 in Base to Bore Centerline
- Manufacturer: Regal Rexnord
- Brand Name: Link-Belt®
- Part Number: LNKPL3W214E
- Alt Part Number: PL3W214E
- MPN: 10435440
- UPC: 793699353303
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Link-Belt®, 10435440, Pillow Block, Intermediate Duty, Series: 200, 0.87 in Bore, 4 in Bolt Center-to-Center Length, 1.31 in Base to Bore Centerline, 2-Bolt Low Base Mounting, Eccentric Locking Device, Single Lip Contact Seal, Non-Expansion, 3150 lb Dynamic/1760 lb Static Load, 6800 rpm Maximum, Cast Iron, Powder Coated
| Base to Bore Centerline | : | 1.31 in |
| Bolt Center-to-Center Length | : | 4 in |
| Bore Diameter | : | 0.87 in |
| Expansion Type | : | Non-Expansion |
| Finish | : | Powder Coated |
| Load Capacity | : | 3150 lb Dynamic/1760 lb Static |
| Locking Device | : | Eccentric |
| Material | : | Cast Iron |
| Maximum Speed | : | 6800 rpm |
| Mounting Type | : | 2-Bolt Low Base |
| Seal Type | : | Single Lip Contact |
| Series | : | 200 |
| Type | : | Intermediate Duty |
