Link-Belt® 10417003 LNKP3S232E
  1. pin-int

Link-Belt® 10417003 LNKP3S232E

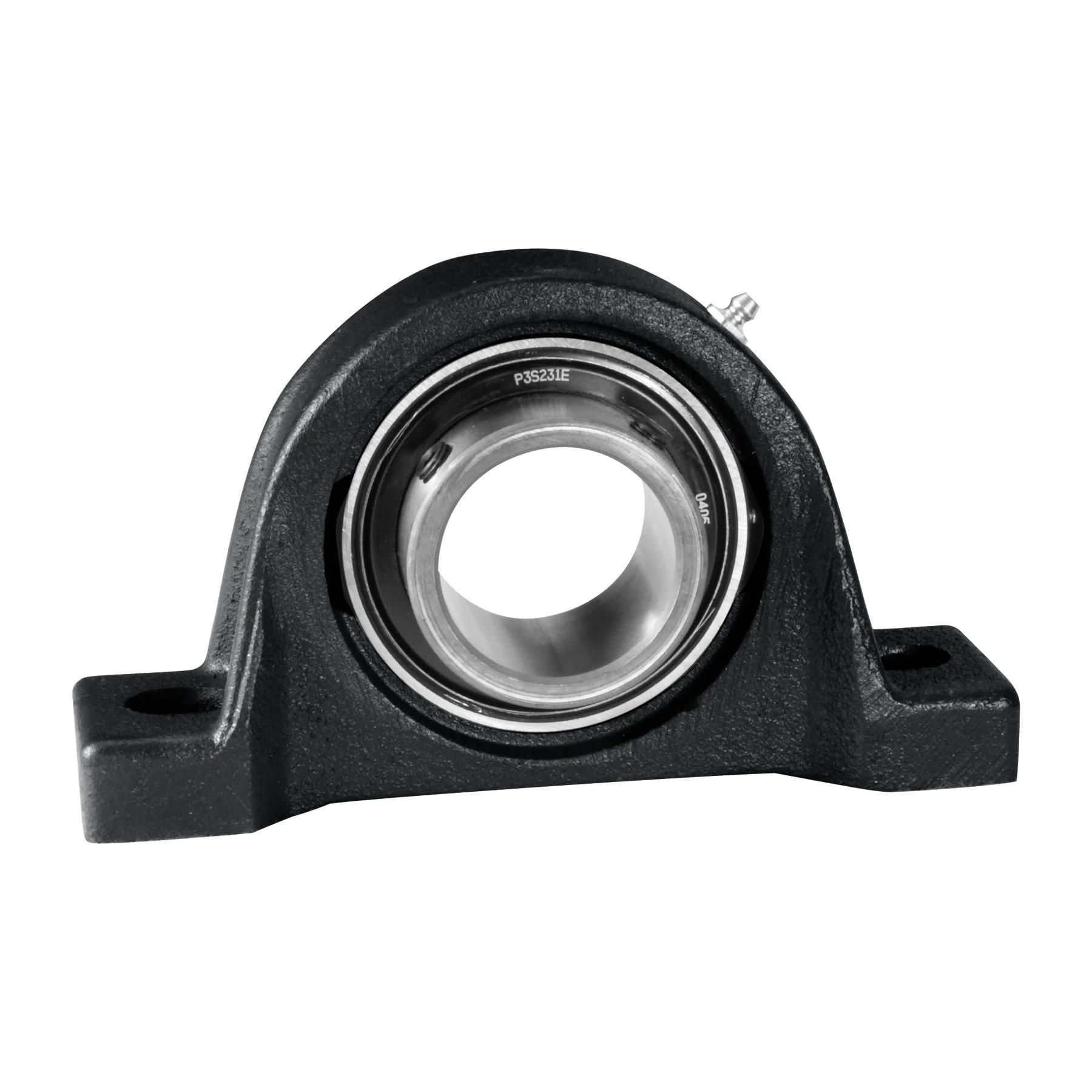

Link-Belt® 10417003 200 Intermediate Duty Pillow Block Ball Bearing Unit, 2 in Dia Bore, 6-15/16 in L Bolt Center-to-Center, 2-1/2 in Base to Bore Centerline, 8-7/8 in OAL x 4-31/32 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Link-Belt®
  • Part Number: LNKP3S232E
  • Alt Part Number: P3S232E
  • MPN: 10417003
  • UPC: 662864714501
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.

Link-Belt® Pillow Block Ball Bearing Unit, Intermediate Duty, Series: 200, 2 in Bore, 6-15/16 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 1-13/16 in Overall Width, 4-31/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-5/16 in Base Width, Set Screw Locking Device, Single Lip Seal, 9800 lb Dynamic/6570 lb Static Load, 225 deg F, 3200 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2-5/16 in
Base to Bore Centerline      :      2-1/2 in
Bolt Center-to-Center Length      :      6-15/16 in
Bore Diameter      :      2 in
Bore Type      :      Round
Finish      :      Powder Coated
Load Capacity      :      9800 lb Dynamic/6570 lb Static
Locking Device      :      Set Screw
Material      :      Cast Iron
Maximum Speed      :      3200 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-31/32 in
Overall Length      :      8-7/8 in
Overall Width      :      1-13/16 in
Seal Type      :      Single Lip
Series      :      200
Temperature Rating      :      225 deg F
Type      :      Intermediate Duty
  • Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
  • Compact 1-piece housing provides excellent mounting support
  • Relubricatable bearing
  • Standard backing
  • Integral bearing seals
  • Narrow inner ring
  • 211 size code
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_11KB204N_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Link-Belt_TAS2160406_Manual.pdf
  • videoVIDEO LINK https://www.youtube.com/embed/ZRnGctS61pk?wmode=opaque&autoplay=0&autohide=1&showinfo=0&controls=2&rel=0&enablejsapi=1
