Browning® 767863 BROVPS132

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

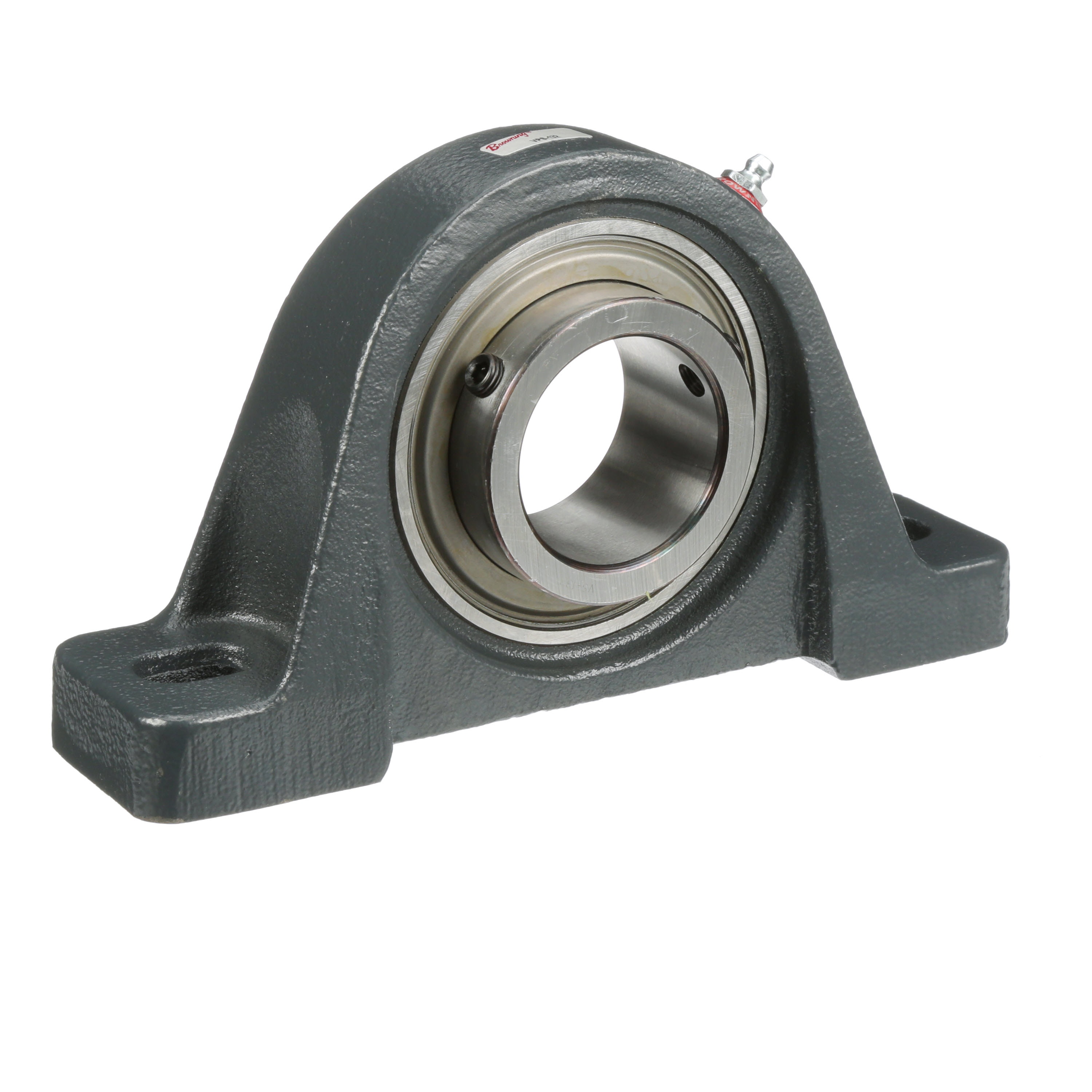

Browning® Pillow Block Ball Bearing, Intermediate Duty, Series: VPS 100, 2 in Bore, 6-7/16 to 7-7/16 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-13/16 in Overall Length, 4-31/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-5/16 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 9752 lb Dynamic/6601 lb Static Load, -20 to 200 deg F, 1750 rpm Maximum, Cast Iron, Gray Painted

• Powder coat epoxy cast iron housing
• Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_765077_Specification_Sheet.pdf
