IPTCI Bearings UCPA204-20MM IPTUCPA204-20MM

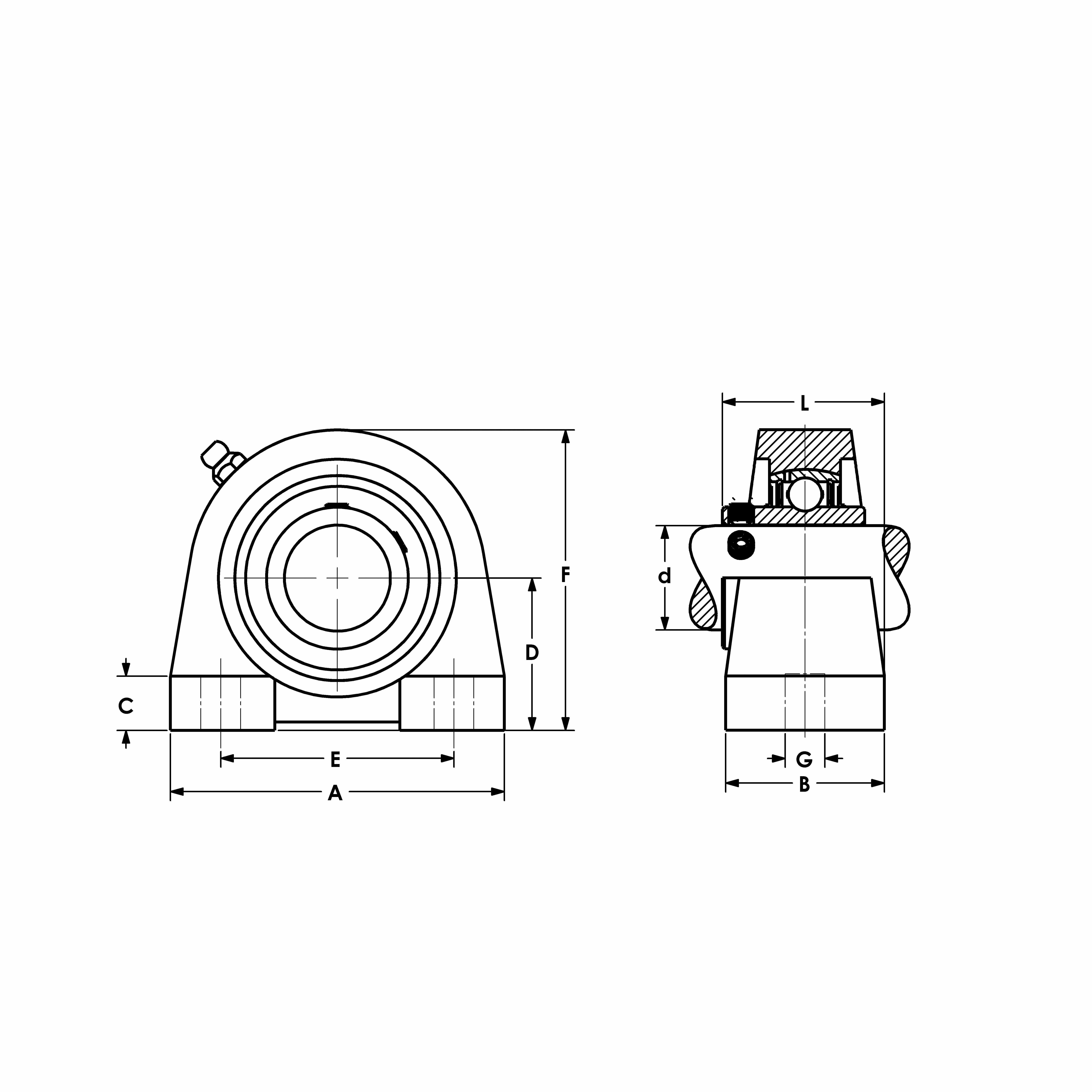

IPTCI Bearings UCPA204-20MM PA 200 Silver Normal Duty Pillow Block Ball Bearing Unit, 20 mm Dia Bore, 51.9 mm L Bolt Center-to-Center, 30.2 mm Base to Bore Centerline, 74 mm OAL x 62 mm OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: IPTCI Bearings
- Part Number: IPTUCPA204-20MM
- Alt Part Number: 2101046300
- MPN: UCPA204-20MM
- UPC: 080067574857
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IPTCI Bearings Pillow Block Ball Bearing Unit, Normal Duty, Series: PA 200 Silver, 20 mm Bore, 51.9 mm Bolt Center-to-Center Length, 30.2 mm Base to Bore Centerline, 74 mm Overall Length, 38 mm Overall Width, 62 mm Overall Height, Tapped Base Mounting, 38 mm Base Width, Set Screw Locking Device, Non-Expansion (Fixed) Expansion, 12800 N Basic/6600 N Static Load, 10 to 200 deg F, 7450 rpm Maximum, Cast Iron
| Base Width | : | 38 mm |
| Base to Bore Centerline | : | 30.2 mm |
| Bolt Center-to-Center Length | : | 51.9 mm |
| Bore Diameter | : | 20 mm |
| Expansion Type | : | Non-Expansion (Fixed) |
| Load Capacity | : | 12800 N Basic/6600 N Static |
| Locking Device | : | Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 7450 rpm |
| Mounting Type | : | Tapped Base |
| Overall Height | : | 62 mm |
| Overall Length | : | 74 mm |
| Overall Width | : | 38 mm |
| Series | : | PA 200 Silver |
| Temperature Rating | : | 10 to 200 deg F |
| Type | : | Normal Duty |
