IDC Select® IDC P1-24MM IDCP124MM
  1. pin-int

IDC Select® IDC P1-24MM IDCP124MM

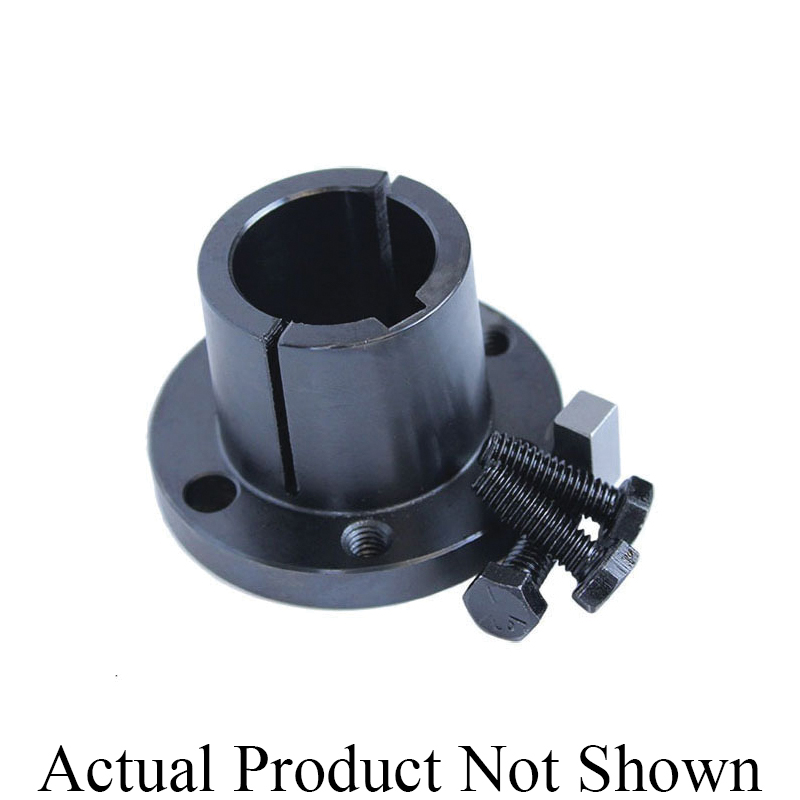

IDC Select® IDC P1-24MM Double Finished Bore Split Taper Bushing, 24 mm Dia Bore, 1-15/16 in Dia Barrel, 3 in Dia Flange, 1-15/16 in OAL, Nodular Graphite Cast Iron

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCP124MM
  • MPN: IDC P1-24MM
  • UPC: 887412023496
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

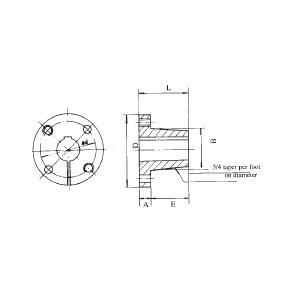

IDC Select® Split Taper Bushing, Double Finished Bore, 24 mm Bore Dia, 1-15/16 in Barrel Dia, 2-7/16 in Bolt Circle, 3 in Flange Dia, 13/32 in Flange Thickness, 5/16 x 1 in Screw, 192 in-lb, 1-15/16 in Overall Length, 8 x 3.5 mm Keyway, Nodular Graphite Cast Iron

Barrel Diameter      :      1-15/16 in
Bolt Circle Diameter      :      2-7/16 in
Bore Diameter      :      24 mm
Flange Diameter      :      3 in
Flange Thickness      :      13/32 in
Keyway Size      :      8 x 3.5 mm
Material      :      Nodular Graphite Cast Iron
Overall Length      :      1-15/16 in
Screw Size      :      5/16 x 1 in
Torque Rating      :      192 in-lb
Type      :      Double Finished Bore
  • Easy installation and dismount
  • Keyed to both shaft and hub, external key provides positive drive
  • Solid flange maintains concentric bore and reduces vibration
  • Double split barrel improves concentricity
  • Keystock provided with shallow key sizes
  • P1 size Split Taper™ bushing
