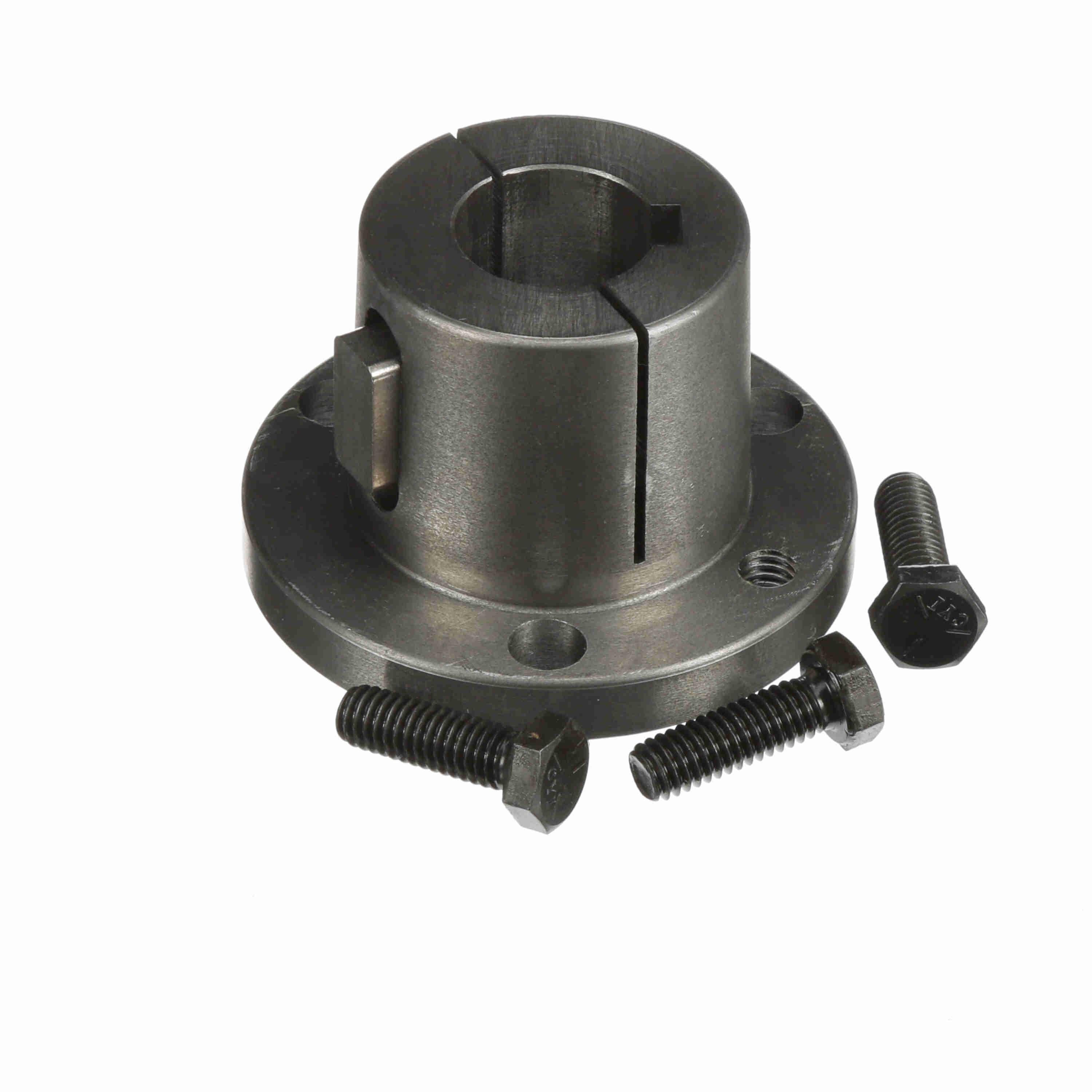

Browning® 1069830 BROP124MM
Browning® 1069830 Split Taper Bushing With Keyway, 24 mm Dia Bore, 1.8555 in Small End/1.9375 in Large End Dia Barrel, 3 in Dia Flange, 49.2125 mm OAL, Sintered Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROP124MM
- Alt Part Number: P1 24 MM
- MPN: 1069830
- UPC: 662289143160
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split Taper Bushing, 24 mm Bore Dia, 1.8555 in Small End/1.9375 in Large End Barrel Dia, 2-7/16 in Bolt Circle, 3 in Flange Dia, 13/32 in Flange Thickness, 3 Bolt Holes, 5/16 x 1 in Screw, For Use With: Browning® Multiple Groove Sheave, 49.2125 mm Overall Length, Sintered Steel
| Barrel Diameter | : | 1.8555 in Small End/1.9375 in Large End |
| Bolt Circle Diameter | : | 2-7/16 in |
| Bore Diameter | : | 24 mm |
| Flange Diameter | : | 3 in |
| Flange Thickness | : | 13/32 in |
| Material | : | Sintered Steel |
| Number of Bolt Holes | : | 3 |
| Overall Length | : | 49.2125 mm |
| Screw Size | : | 5/16 x 1 in |
| Suitable For Use With | : | Browning® Multiple Groove Sheave |
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
