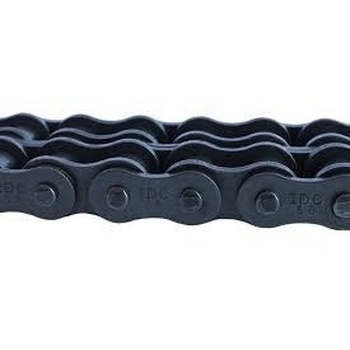

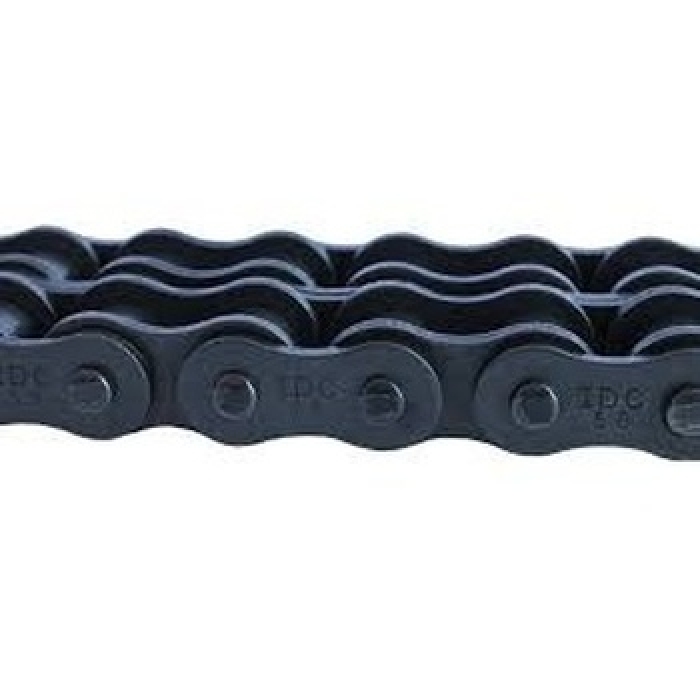

IDC Select® IDC 40SS-2R IDC40-2SSR-10
IDC Select® IDC 40SS-2R Riveted Roller Chain, 10 ft OAL, 1/2 in Pitch, 0.31 in Dia x 0.19 in W Roller, Stainless Steel
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDC40-2SSR-10
- MPN: IDC 40SS-2R
- UPC: 887412059037
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 10/ft
-
Price:
IDC Select® stainless steel roller chain is manufactured using 300 series stainless steel with a split bushing/solid roller design. These chains are designed to be used in environments that are highly acidic or alkaline. They can also be used where the chain is exposed to moisture or in extreme temperatures where resistance to corrosion is a requirement of the application. IDC Select® nickel plated chains are solid bushing/solid roller design. All the individual components are plated prior to assembly to provide uniform coverage. These chains are ideal for outdoor service as well as mildly corrosive applications.
IDC Select® Roller Chain, Riveted, 1/2 in Pitch, 0.16 in Pin Diameter, 1.27 in Pin Length, 0.31 in Roller Diameter, 0.19 in Roller Width, 0.47 in Plate Height, 0.06 in Plate Thickness, 2 Strands, 6409 lb Ultimate/8160.25 lb Average Tensile Strength, 10 ft Overall Length, Stainless Steel, Nickel Plated
| Finish | : | Nickel Plated |
| Material | : | Stainless Steel |
| Number of Strands | : | 2 |
| Overall Length | : | 10 ft |
| Pin Diameter | : | 0.16 in |
| Pin Length | : | 1.27 in |
| Pitch | : | 1/2 in |
| Plate Height | : | 0.47 in |
| Plate Thickness | : | 0.06 in |
| Roller Diameter | : | 0.31 in |
| Roller Width | : | 0.19 in |
| Tensile Strength | : | 6409 lb Ultimate/8160.25 lb Average |
| Type | : | Riveted |
- Nickel plated chains have the same power transmitting capabilities as standard carbon steel chains
- Nickel plated components are plated prior to assembly to ensure proper coverage
- Corrosion resistant
