Martin D40B11H MARD40B11H
  1. pin-int

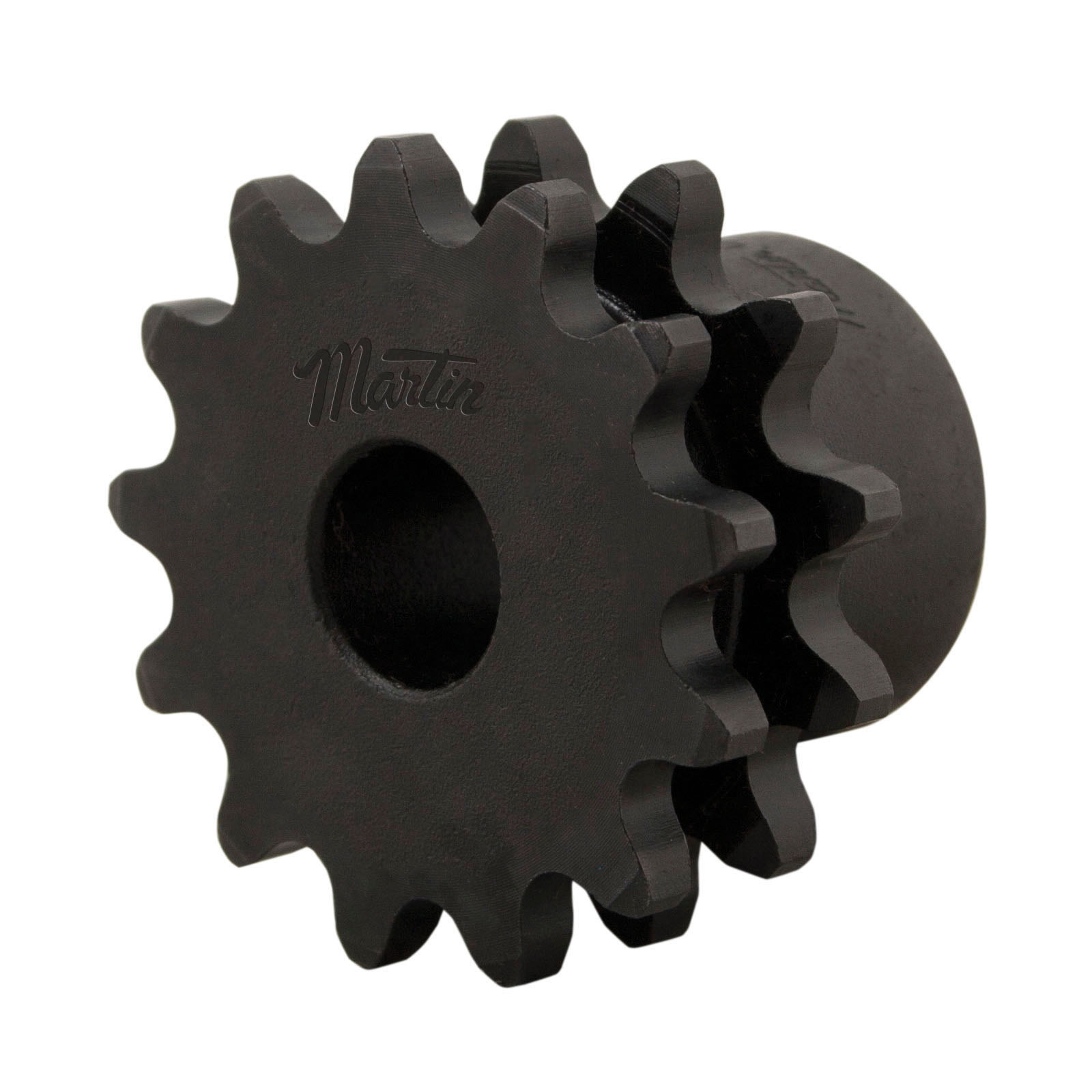

Martin D40B11H MARD40B11H

Martin D40B11H Type B Double Strand Solid Reboreable Roller Chain Sprocket With Recess Groove and Hardened Teeth, 1/2 to 3/4 in Dia Bore, 2.003 in OD, #40 Chain, 11 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MARD40B11H
  • MPN: D40B11H
  • UPC: 697950007083
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Double Strand Solid Reboreable, 1/2 to 3/4 in Bore, 2.003 in OD, #40 Chain, 11 Teeth, 1/2 in Pitch, 1.775 in Pitch Diameter, 1.438 in Diameter Hub, 1-1/2 in Length Through Bore, Steel

Bore Diameter      :      1/2 to 3/4 in
Chain Size      :      #40
Hub Diameter      :      1.438 in
Length Through Bore      :      1-1/2 in
Material      :      Steel
Number of Teeth      :      11
Outside Diameter      :      2.003 in
Pitch Diameter      :      1.775 in
Pitch      :      1/2 in
Type      :      Type B Double Strand Solid Reboreable
  • Item Features 01=Precise machining and processes ensure consistent finish and high quality
  • Item Features 02=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 03=Bores are concentric to pitch line, minimizing run out
