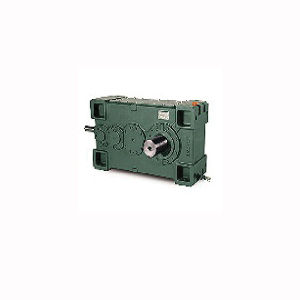

Dodge® 449229 DOD469229
Dodge® MagnaGear XTR® 449229 Horizontal Triple Reduction Right Angle Reducer, Solid Output, 350 hp, 28:1 Gear, 61 rpm Maximum Output, 227000 in-lb Torque Rating
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD469229
- Alt Part Number: G210HRS3-28
- MPN: 449229
- UPC: 782476468033
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MagnaGear XTR® is manufactured to provide maximum reliability in tough applications and to improve your total cost of ownership. The innovative design incorporates state of the art techniques to meet the high standards expected of Dodge® reducers. Products are available in both parallel and right angle configurations. MagnaGear XTR® provides the perfect solution for your high torque application needs.
Dodge® MagnaGear XTR® Right Angle Reducer, Horizontal Triple Reduction, 28:1 Gear Ratio, 350 hp, Solid Output, 2.1662 in Input, 4.7244 in Output, 61 rpm Output Maximum, 1750 rpm Input Maximum, 227000 in-lb Torque, 0.63 in Input/1.26 in W Output Keyway, CW/CCW Rotation, Splash and Dip/Lube Grade 320 Lubrication, A1 Mounting, Cast Iron, Gray Painted, 53.91 in L x 23.75 in W x 25.5 in H Dimensions
| Dimensions | : | 53.91 in L x 23.75 in W x 25.5 in H |
| Finish | : | Gray Painted |
| Gear Ratio | : | 28:1 |
| Horsepower | : | 350 hp |
| Input Maximum Speed | : | 1750 rpm |
| Input Size | : | 2.1662 in |
| Keyway Size | : | 0.63 in Input/1.26 in W Output |
| Lubrication Type | : | Splash and Dip/Lube Grade 320 |
| Material | : | Cast Iron |
| Mounting Type | : | A1 |
| Output Maximum Speed | : | 61 rpm |
| Output Size | : | 4.7244 in |
| Output Type | : | Solid |
| Rotation Type | : | CW/CCW |
| Torque Rating | : | 227000 in-lb |
| Type | : | Horizontal Triple Reduction |
- Maximum reliability
- Proven Dodge® reducer technology
- Longer life bearings
- Premium seal arrangement
- Premium gearing designed with FEA (Finite Element Analysis) computer modeling
- Improved heat dissipation
- Easy maintenance
- Three stage gearing
Line Drawing
