Dodge 449192 G210HRH3-12.5 Reducer

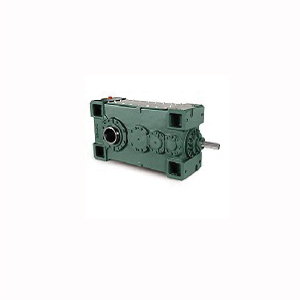

Dodge® MagnaGear XTR® G210HRH3-12.5 (449192) Horizontal Triple Reduction Right Angle Reducer, Tapered Hollow Bore Output, 350 hp, 12.5:1 Gear, 142 rpm Maximum Output, 227000 in-lb Torque Rating
- Manufacturer: Dodge Industrial
- Brand Name: Dodge®
- Part Number: DOD469192
- Alt Part Number: G210HRH3-12.5
- MPN: 449192
- UPC: 782476468286
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Dodge® G210HRH3-12.5 (449192) is a Horizontal Triple Reduction helical bevel right angle drive. Key specifications include gear ratio: 12.5:1, output: Tapered Hollow Bore, input size: 2.1662 in, and maximum input speed: 1750 rpm. MagnaGear XTR® is manufactured to provide maximum reliability in tough applications and to improve your total cost of ownership. The innovative design incorporates state of the art techniques to meet the high standards expected of Dodge® reducers. Products are available in both parallel and right angle configurations. MagnaGear XTR® provides the perfect solution for your high torque application needs.
Dodge® MagnaGear XTR® G210HRH3-12.5 (449192) Right Angle Reducer, Horizontal Triple Reduction, 12.5:1 Gear Ratio, 350 hp, Tapered Hollow Bore Output, 2.1662 in Input, 142 rpm Output Maximum, 1750 rpm Input Maximum, 227000 in-lb Torque, 0.63 in W Keyway, CW/CCW Rotation, Splash and Dip/Lube Grade 320 Lubrication, A1 Mounting, Cast Iron, Gray, 53.91 in L x 21.76 in W x 25.5 in H Dimensions
| Dimensions | : | 53.91 in L x 21.76 in W x 25.5 in H |
| Finish | : | Gray |
| Gear Ratio | : | 12.5:1 |
| Horsepower | : | 350 hp |
| Input Maximum Speed | : | 1750 rpm |
| Input Size | : | 2.1662 in |
| Keyway Size | : | 0.63 in W |
| Lubrication Type | : | Splash and Dip/Lube Grade 320 |
| Material | : | Cast Iron |
| Mounting Type | : | A1 |
| Output Maximum Speed | : | 142 rpm |
| Output Type | : | Tapered Hollow Bore |
| Rotation Type | : | CW/CCW |
| Torque Rating | : | 227000 in-lb |
| Type | : | Horizontal Triple Reduction |
- Maximum reliability
- Proven Dodge® reducer technology
- Longer life bearings
- Premium seal arrangement
- Premium gearing designed with FEA (Finite Element Analysis) computer modeling
- Improved heat dissipation
- Easy maintenance
- Three stage gearing
Line Drawing
