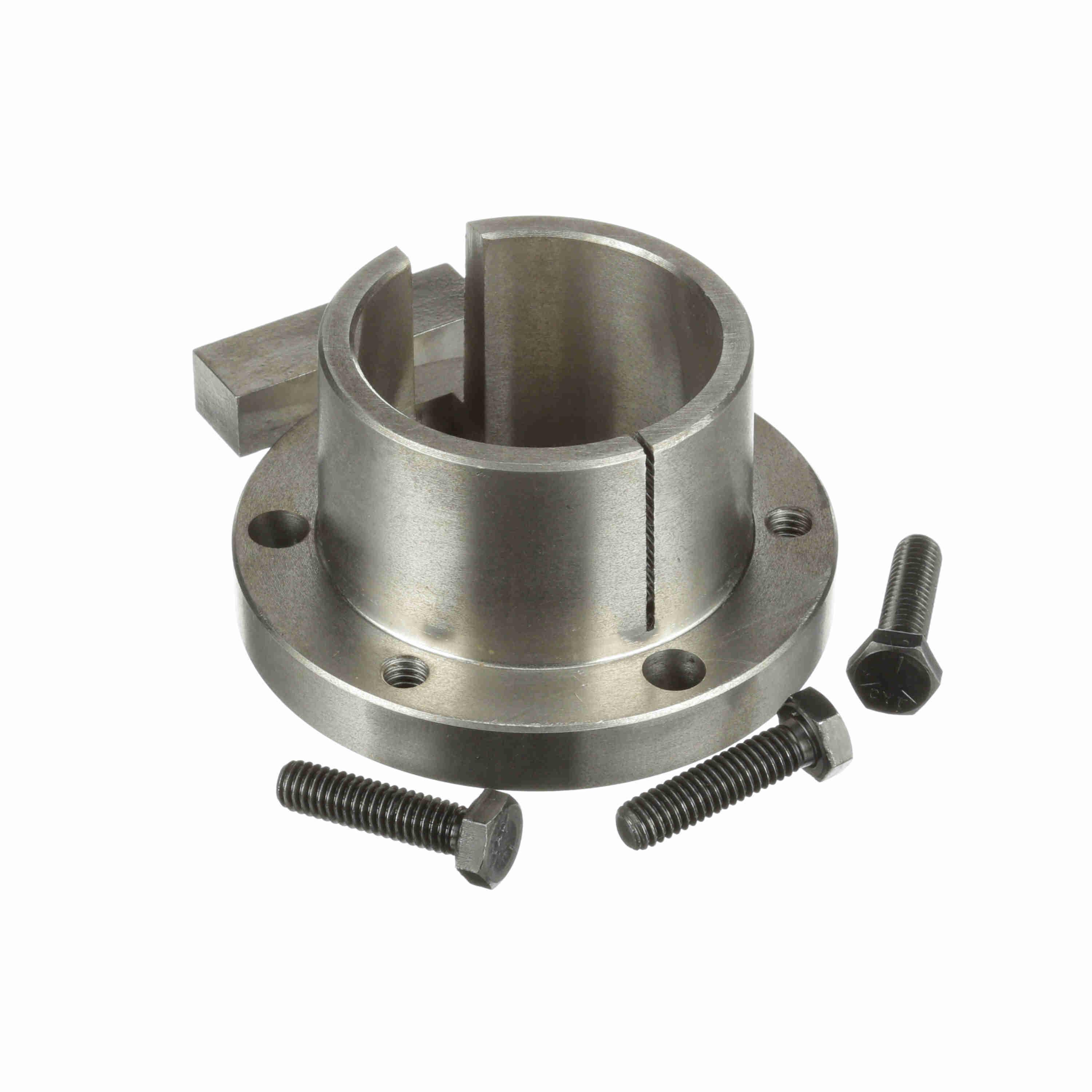

Browning® 3694890 BROB2 1/8

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split Taper Bushing, 2-1/8 in Bore Dia, 2.5567 in Small End/2.625 in Large End Barrel Dia, 3-1/8 in Bolt Circle, 3-11/16 in Flange Dia, 1/2 in Flange Thickness, 3 Bolt Holes, 5/16 x 1-1/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 1-15/16 in Overall Length, 1/2 x 1/4 in Keyway, Sintered Steel

• Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity grips the shaft with positive clamp fit
• Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
• Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
• Browning torque limiters are friction type devices that reset to any position
• 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3694726_Specification_Sheet.pdf
