Browning® 3694585 BRO4B5V80

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

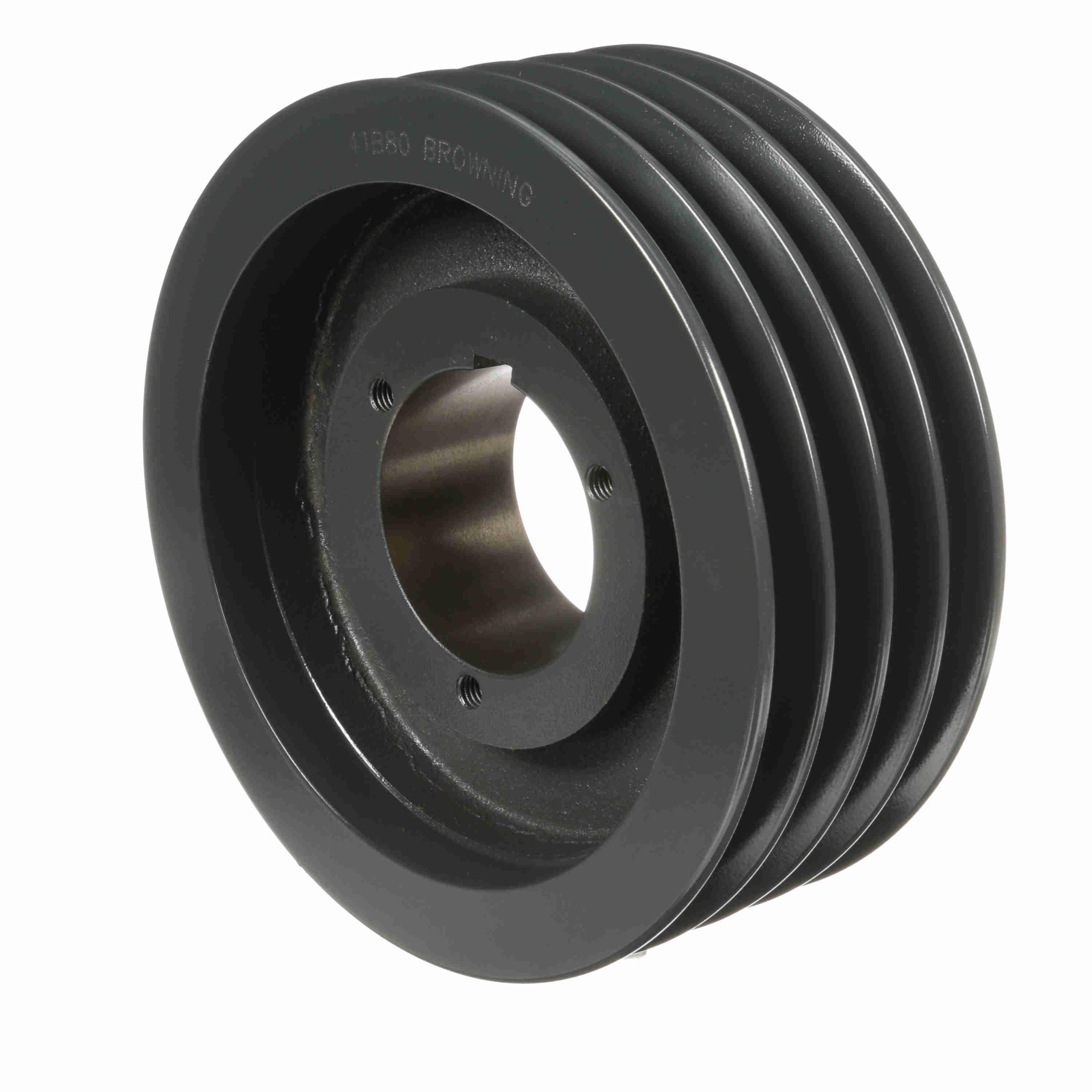

Browning® Multiple Sheave, Type 15 Arm/Web, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 8.28 in Outside Dia, 8.1 in (5V)/7.8 in (A)/8.3 in (B), 4 Grooves, 3-5/32 in Face Width, 3/32 in Hub Projection, B Bushing, 3-17/64 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

• New casting design the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
• Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
• Cooler running means longer life
• Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
• Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
• High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
• Assures less vibration and Smoother , quieter performance
• Notched belts provide higher horsepower than wrapped belts
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
