Browning® 3694650 BRO4B5V154

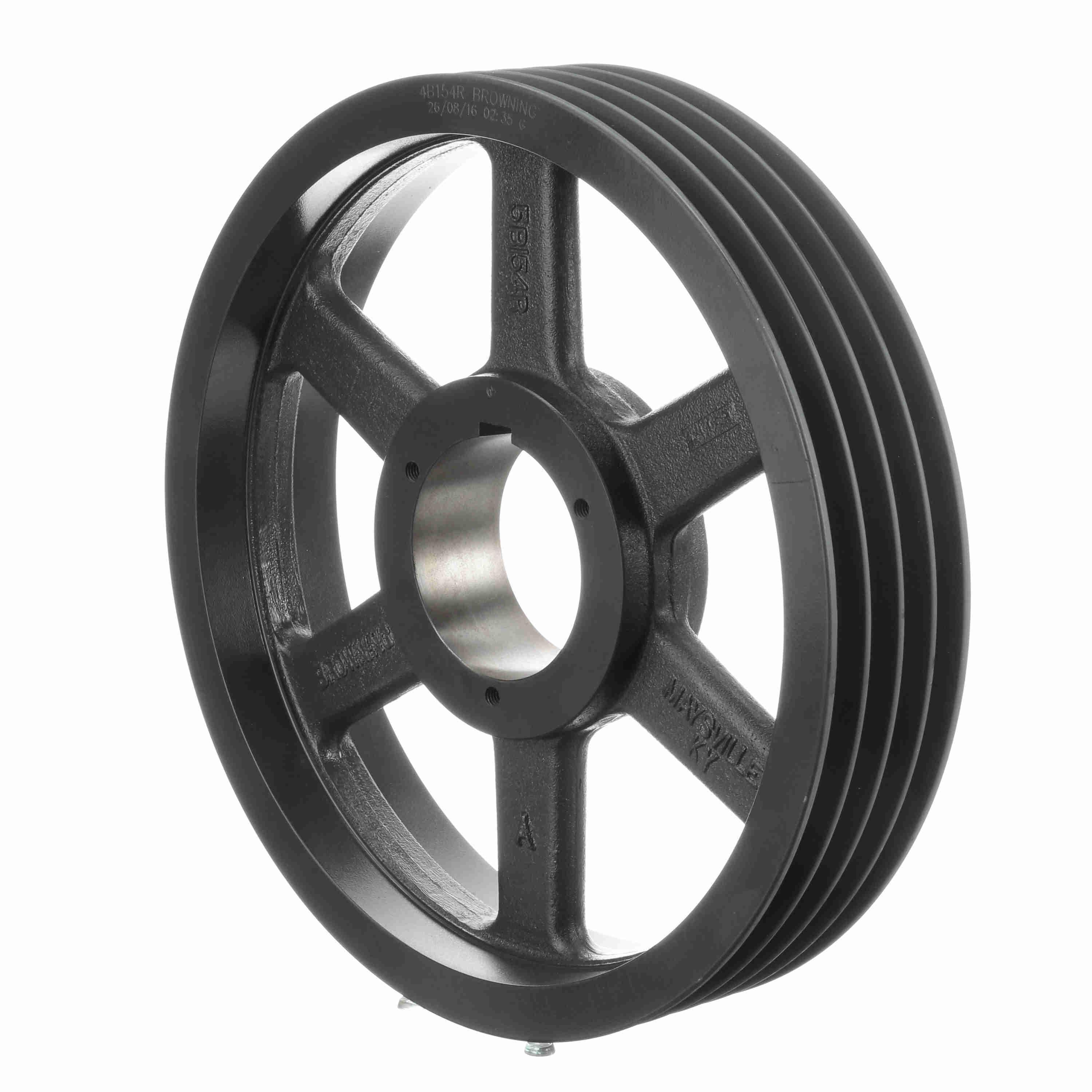

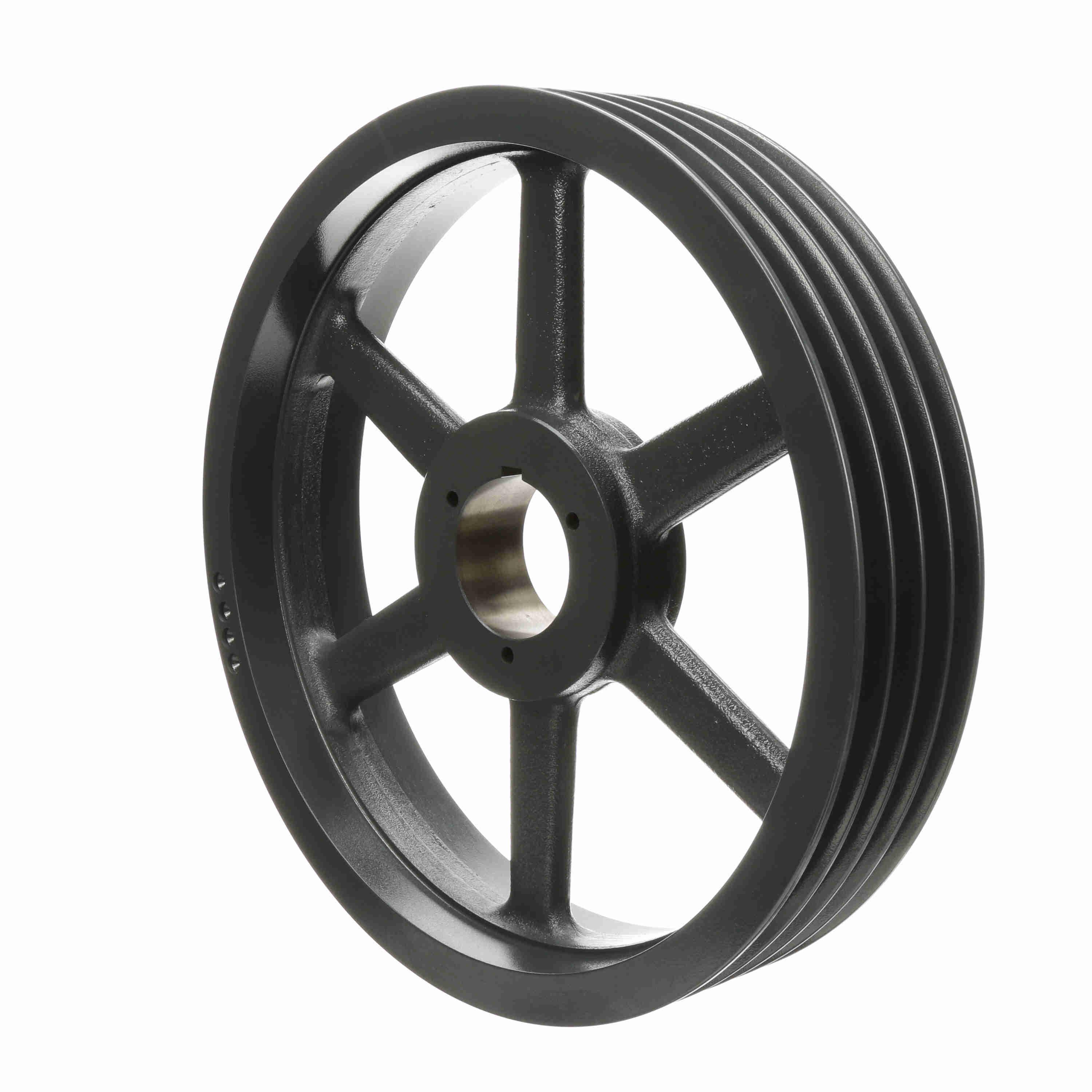

Browning® 3694650 B5V® Type 4 Arm Multiple Sheave, 1/2 to 2-7/16 in Split Taper Bore, 15.68 in OD, 4 Grooves, 15.2 in (A)/15.7 in (B)/15.5 in (5V) Dia Pitch, 3-5/32 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRO4B5V154
- Alt Part Number: 4B5V154
- MPN: 3694650
- UPC: 662289035342
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
Browning® Multiple Sheave, Type 4 Arm, Series: B5V®, Split Taper Bore, 1/2 to 2-7/16 in Bore, 15.68 in OD, 15.2 in (A)/15.7 in (B)/15.5 in (5V) Pitch Diameter, 4 Grooves, 3-5/32 in Face Width, B Bushing, 3-13/64 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron
| Bore Diameter | : | 1/2 to 2-7/16 in |
| Bore Type | : | Split Taper |
| Bushing Type | : | B |
| Face Width | : | 3-5/32 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 4 |
| Outside Diameter | : | 15.68 in |
| Overall Length | : | 3-13/64 in |
| Pitch Diameter | : | 15.2 in (A)/15.7 in (B)/15.5 in (5V) |
| Series | : | B5V® |
| Suitable For Use With | : | GripBelt® A and B, 5V Cross Section V-Belt |
| Type | : | Type 4 Arm |
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
Instruction/Installation Manual
