Browning® 1175280 BROD120S45
Browning® 1175280 Double Strand Type 18 Roller Chain Sprocket, 1-7/8 to 4-3/16 in Dia Bore, 22.351 in OD, 120 Chain, 45 Teeth, 1-1/2 in Pitch, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROD120S45
- Alt Part Number: D120S45
- MPN: 1175280
- UPC: 662289346332
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

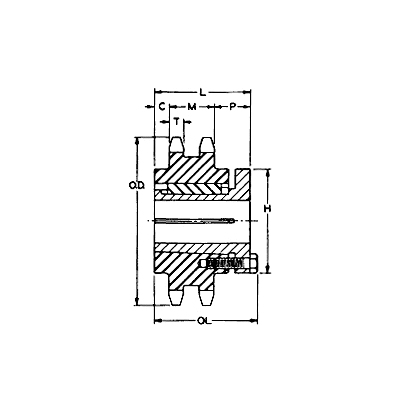

Browning® Roller Chain Sprocket, Double Strand Type 18, 1-7/8 to 4-3/16 in Bore, 22.351 in OD, 120 Chain, 45 Teeth, 21.503 in Pitch Diameter, 6.365 in Diameter Hub, 4-3/4 in Length Through Bore, Steel
| Bore Diameter | : | 1-7/8 to 4-3/16 in |
| Chain Size | : | 120 |
| Hub Diameter | : | 6.365 in |
| Length Through Bore | : | 4.75 in |
| Material | : | Steel |
| Number of Teeth | : | 45 |
| Outside Diameter | : | 22.351 in |
| Pitch Diameter | : | 21.503 in |
| Type | : | Double Strand Type 18 |
- This product has the Browning® exclusive twice the life guarantee
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 1-1/2 in pitch ANSI chain
