Browning® 1174218 BROD40Q32
  1. pin-int

Browning® 1174218 BROD40Q32

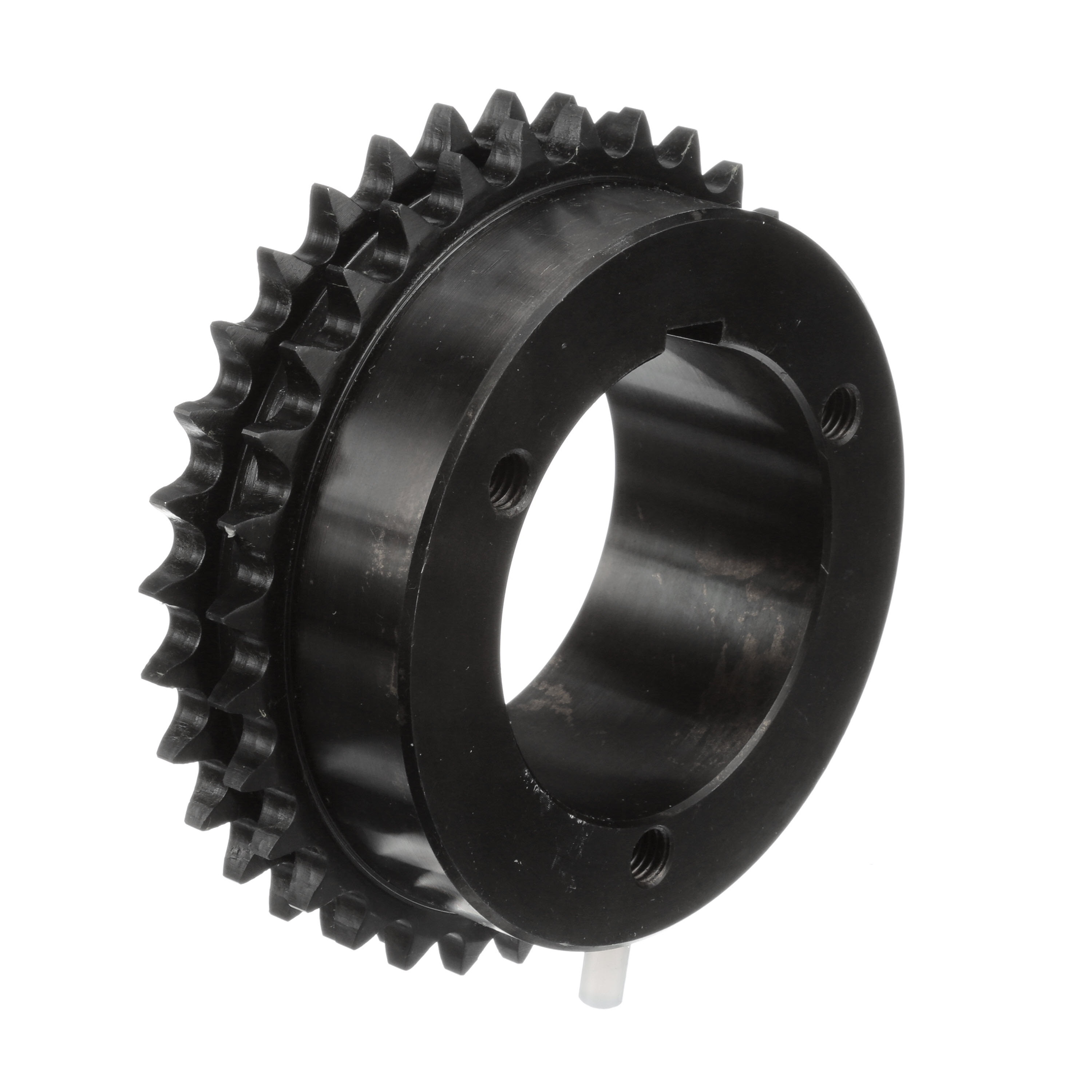

Browning® 1174218 Double Strand Type 12 Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 5.377 in OD, 40 Chain, 32 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROD40Q32
  • Alt Part Number: D40Q32
  • MPN: 1174218
  • UPC: 662289108978
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Double Strand Type 12, 3/4 to 2-11/16 in Bore, 5.377 in OD, 40 Chain, 32 Teeth, 5.101 in Pitch Diameter, 4-1/8 in Diameter Hub, 2.7924 in Length Through Bore, Steel

Bore Diameter      :      3/4 to 2-11/16 in
Chain Size      :      40
Hub Diameter      :      4-1/8 in
Length Through Bore      :      2.7924 in
Material      :      Steel
Number of Teeth      :      32
Outside Diameter      :      5.377 in
Pitch Diameter      :      5.101 in
Type      :      Double Strand Type 12
  • This product has the Browning® exclusive twice the life guarantee
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key, higher torque capacity, aligns bolt holes
  • Provides key to key drive
  • Double split barrel, improved clamping
  • Solid flange, true concentricity, easy installation
  • Longer barrel, better support on the shaft
  • For use with 1/2 in pitch ANSI chain
  • Easy installation and removal
  • Browning offers one of the largest selection of application shaft ready sprockets in the industry
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore
