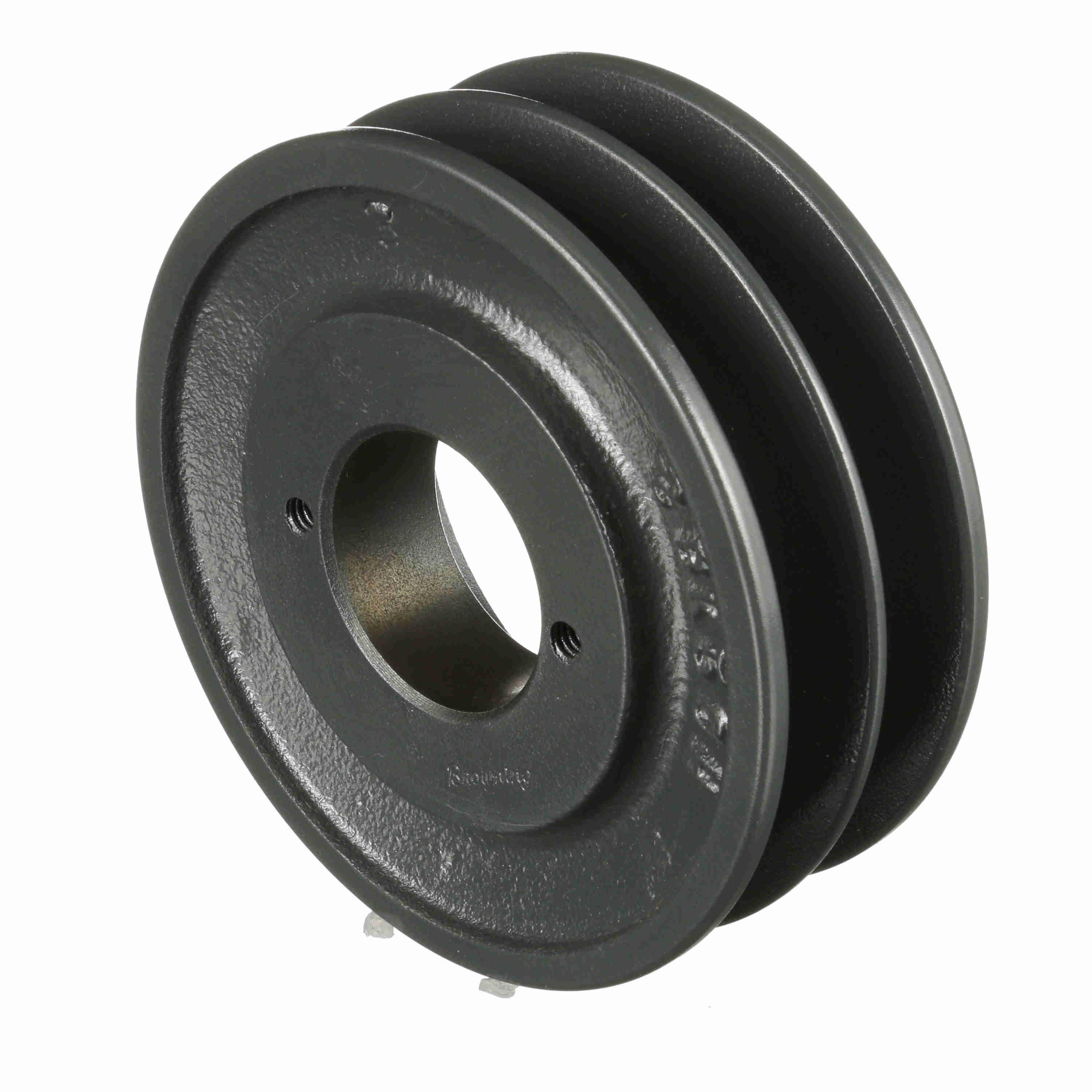

Browning® 1043017 BRO2BK50H

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® FHP Sheave, Type 2, Series: BK Series, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 4-3/4 in Outside Dia, 4.2 in (A)/4.7 in (B), 2 Grooves, 1-3/4 in Face Width, 13/32 in Hub Projection, H Bushing, 2-5/32 in Overall Length, For Use With: Classical Gripbelt® 4L/A and 5L/B Cross Section Belts, Cast Iron

• Bushed products provide more flexibility of inventory, by just changing out the bore size of the bushing
• Largest selection of products of any sheave manufacturer assurance to have the best product for specific application and most economical drive design
• Paint finish that protects product from rushing in high moisture environments
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_2BK40HCLEARPK_Catalog.pdf
