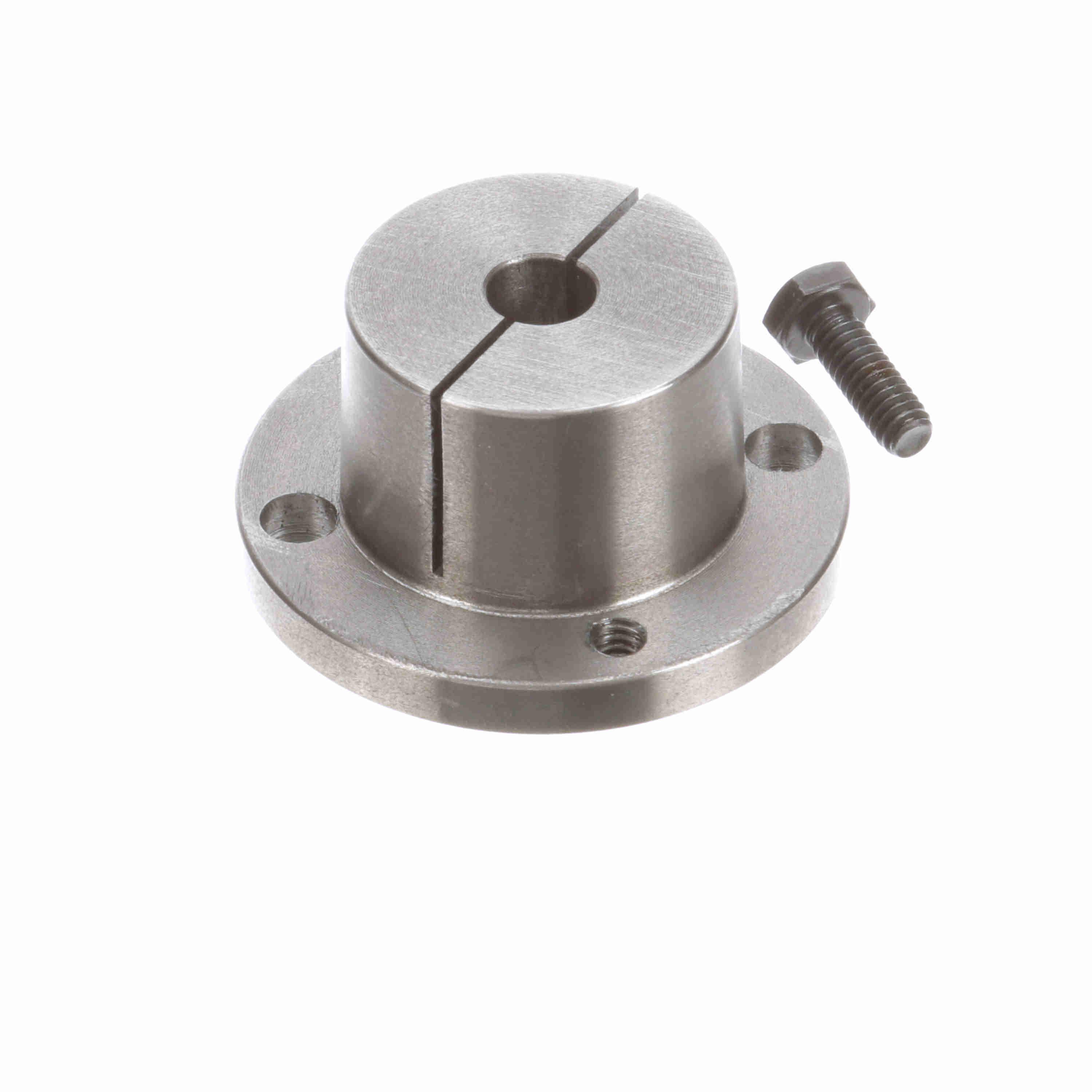

Browning® 1078450 BROH11MM
Browning® 1078450 Type H Split-Taper Bushing, 11 mm Dia Bore, 1.57 in Dia Small End/1-5/8 in Dia Large End Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Ductile Iron or Sintered Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROH11MM
- Alt Part Number: H 11 MM
- MPN: 1078450
- UPC: 662289381579
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
Browning® Split-Taper Bushing, Type H, 11 mm Bore, 1.57 in Dia Small End/1-5/8 in Dia Large End Barrel Diameter, 2 in Diameter Bolt Circle, 2-1/2 in Diameter Flange, 1/4 in Flange Thickness, 2 Bolt Holes, 1/4 x 3/4 in Screw, For Use With: Gearbelt® Multiple Groove Sheaves, 1-1/4 in Overall Length, Ductile Iron or Sintered Steel
| Barrel Diameter | : | 1.57 in Dia Small End/1-5/8 in Dia Large End |
| Bolt Circle Diameter | : | 2 in |
| Bore Diameter | : | 11 mm |
| Flange Diameter | : | 2-1/2 in |
| Flange Thickness | : | 1/4 in |
| Material | : | Ductile Iron or Sintered Steel |
| Number of Bolt Holes | : | 2 |
| Overall Length | : | 1-1/4 in |
| Screw Size | : | 1/4 x 3/4 in |
| Suitable For Use With | : | Gearbelt® Multiple Groove Sheaves |
| Type | : | Type H |
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Without keyway
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
