Browning® 1042670 BROBK140H
  1. pin-int

Browning® 1042670 BROBK140H

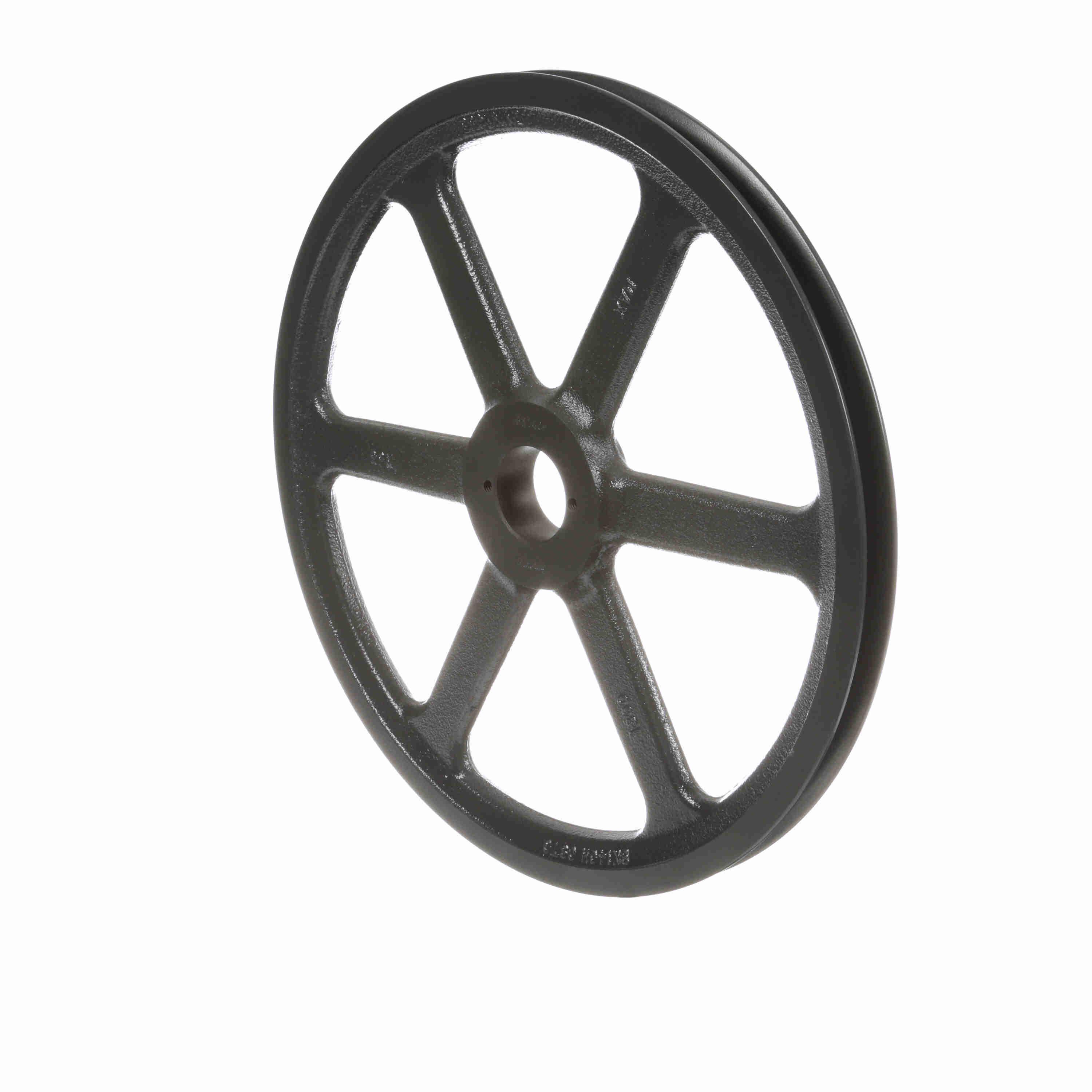

Browning® Classical Gripbelt® 1042670 BK Series Type 3 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 13-3/4 in OD, 13.2 in (A)/13.7 in (B) Dia Pitch, 7/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROBK140H
  • Alt Part Number: BK140H
  • MPN: 1042670
  • UPC: 662289222438
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: BK Series, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 13-3/4 in Outside Dia, 13.2 in (A)/13.7 in (B), 7/8 in Face Width, 17/32 in Hub Projection, H Bushing, 1-9/16 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron, Gray Painted

Bore Diameter      :      3/8 to 1-1/2 in
Bore Type      :      Split Taper
Bushing Type      :      H
Face Width      :      7/8 in
Finish      :      Gray Painted
Hub Projection      :      17/32 in
Material      :      Cast Iron
Outside Diameter      :      13-3/4 in
Overall Length      :      1-9/16 in
Pitch Diameter      :      13.2 in (A)/13.7 in (B)
Series      :      BK Series
Suitable For Use With      :      4L/A and 5L/B Cross Section Belt
Type      :      Type 3
  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
