Browning® 1042142 BROAK49H
  1. pin-int

Browning® 1042142 BROAK49H

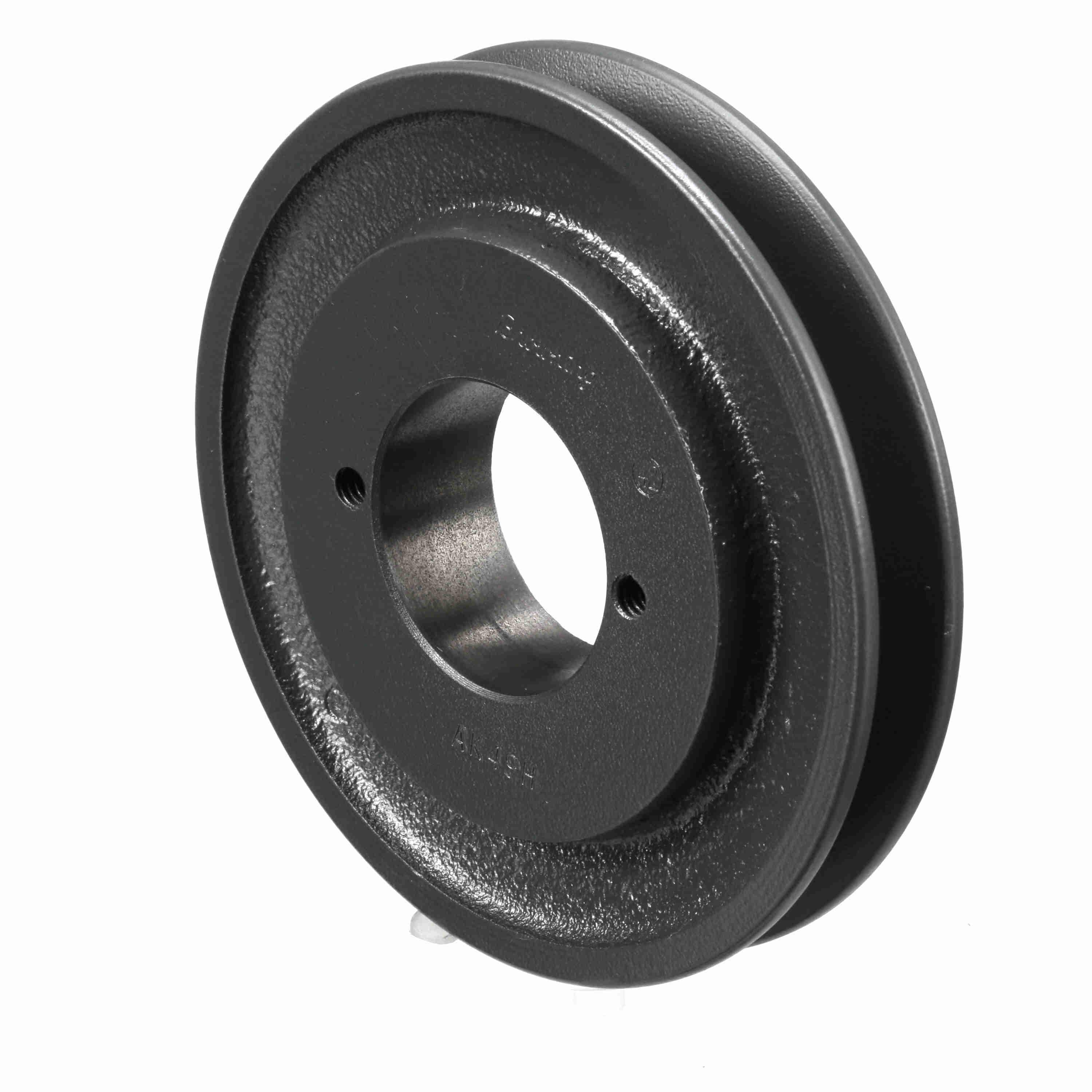

Browning® Classical Gripbelt® 1042142 AK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 4-3/4 in OD, 4.7 in (A)/4.16 in (3L) Dia Pitch, 3/4 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROAK49H
  • Alt Part Number: AK49H
  • MPN: 1042142
  • UPC: 662289142071
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 2, Series: AK Series, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 4-3/4 in Outside Dia, 4.7 in (A)/4.16 in (3L), 3/4 in Face Width, 19/32 in Hub Projection, H Bushing, 1-1/2 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron, Gray Painted

Bore Diameter      :      3/8 to 1-1/2 in
Bore Type      :      Split Taper
Bushing Type      :      H
Face Width      :      3/4 in
Finish      :      Gray Painted
Hub Projection      :      19/32 in
Material      :      Cast Iron
Outside Diameter      :      4-3/4 in
Overall Length      :      1-1/2 in
Pitch Diameter      :      4.7 in (A)/4.16 in (3L)
Series      :      AK Series
Suitable For Use With      :      4L/A and 3L Cross Section Belt
Type      :      Type 2
  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Split Taper® bushings are highest torque carrying capacity in the Browning® bushing product line
  • Double split barrel assures true concentricity
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
