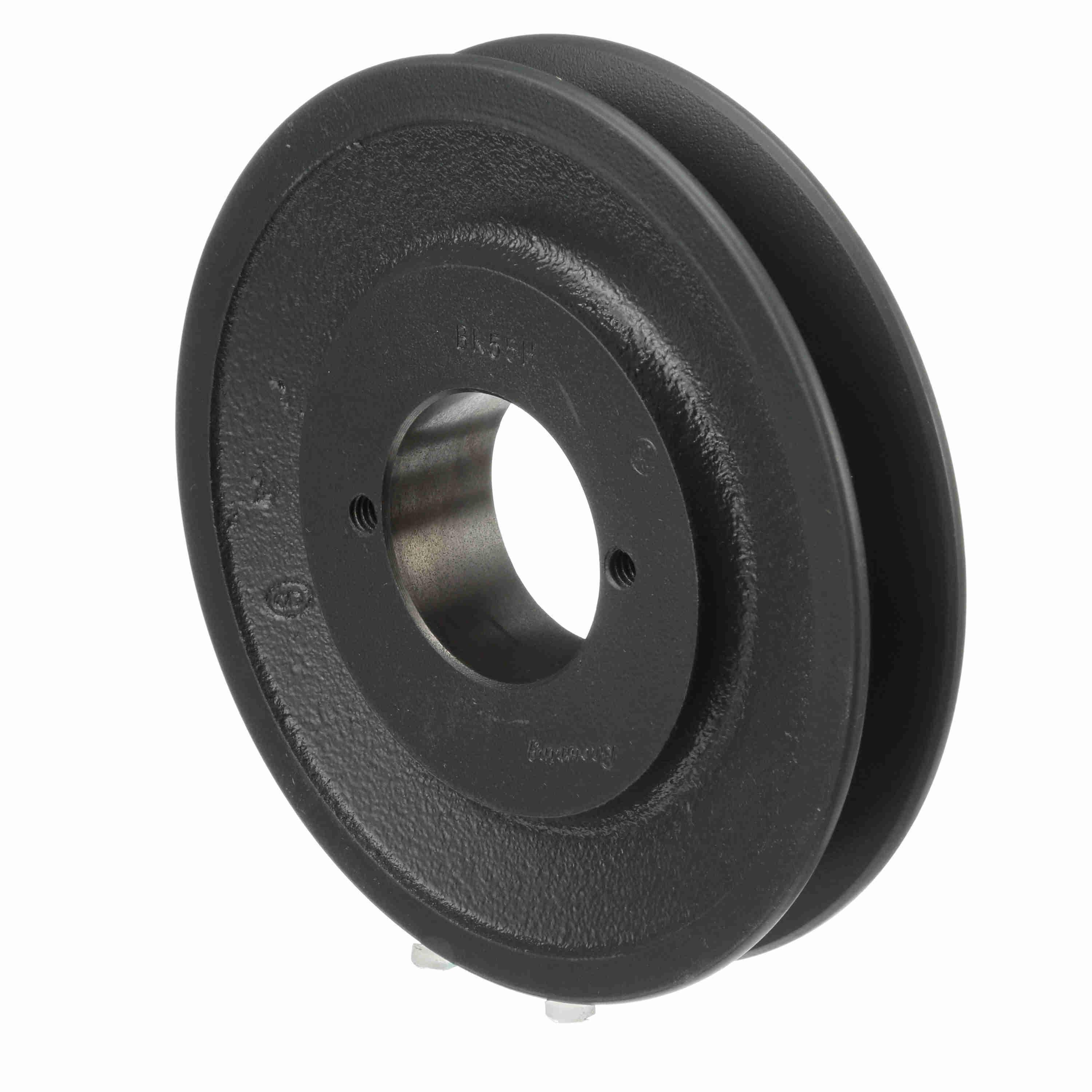

Browning® 1042472 BROBK55H
Browning® Classical Gripbelt® 1042472 BK Series Type 2 Single Groove Sheave, Split Taper Bore, 3/8 to 1-1/2 in Dia Bore, 5-1/4 in OD, 4.7 in (A)/5.2 in (B) Dia Pitch, 7/8 in W Face
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROBK55H
- Alt Part Number: BK55H
- MPN: 1042472
- UPC: 662289192342
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® Classical Gripbelt® Single Groove Sheave, Type 2, Series: BK Series, Split Taper Bore, 3/8 to 1-1/2 in Bore Dia, 5-1/4 in Outside Dia, 4.7 in (A)/5.2 in (B), 7/8 in Face Width, 15/32 in Hub Projection, H Bushing, 1-1/2 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron, Gray Painted
| Bore Diameter | : | 3/8 to 1-1/2 in |
| Bore Type | : | Split Taper |
| Bushing Type | : | H |
| Face Width | : | 7/8 in |
| Finish | : | Gray Painted |
| Hub Projection | : | 15/32 in |
| Material | : | Cast Iron |
| Outside Diameter | : | 5-1/4 in |
| Overall Length | : | 1-1/2 in |
| Pitch Diameter | : | 4.7 in (A)/5.2 in (B) |
| Series | : | BK Series |
| Suitable For Use With | : | 4L/A and 5L/B Cross Section Belt |
| Type | : | Type 2 |
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning BK H Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
