Browning® 1029545 BROBK1401
  1. pin-int

Browning® 1029545 BROBK1401

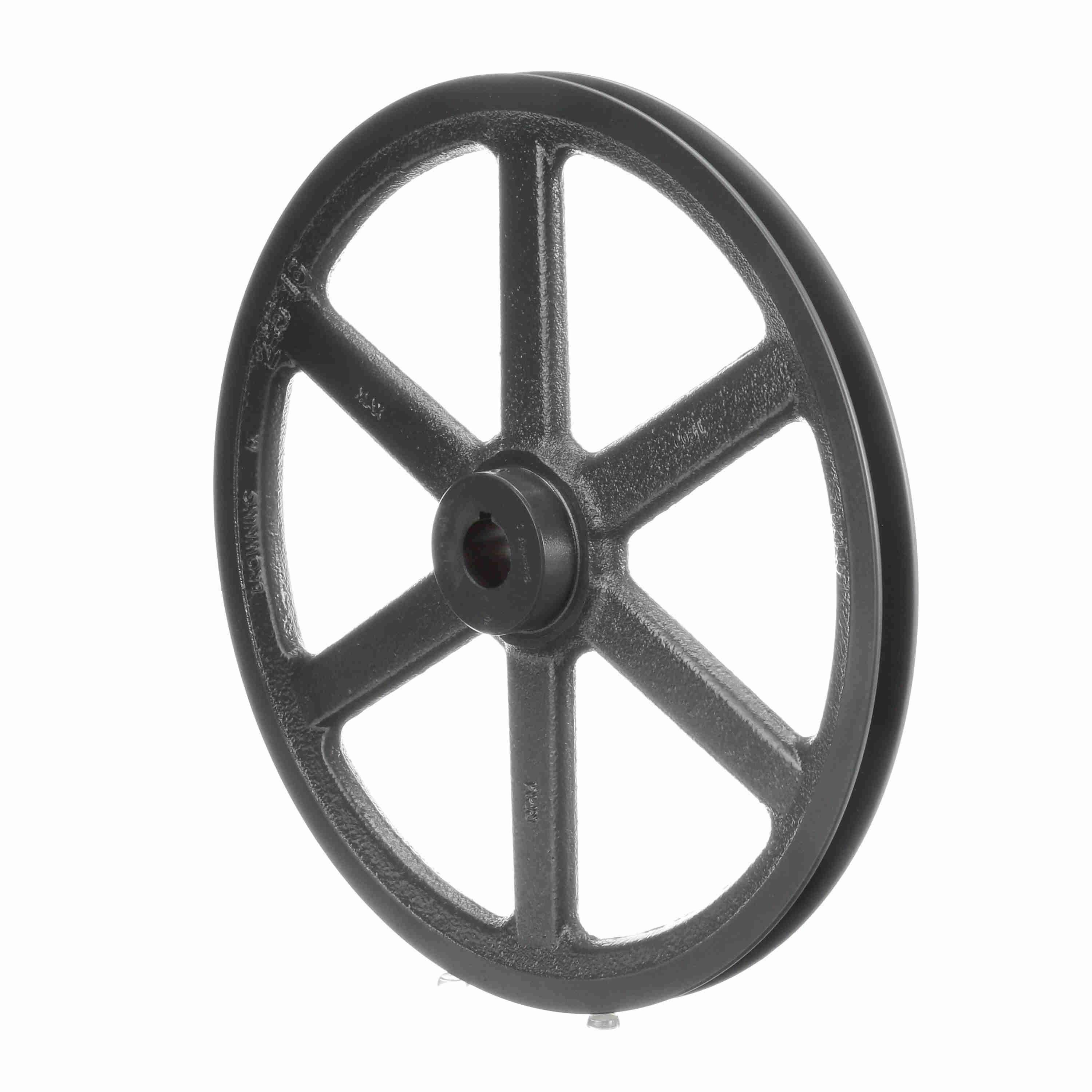

Browning® Classical Gripbelt® 1029545 BK Series Type 3 Single Groove Sheave, Finished Bore, 1 in Dia Bore, 13-3/4 in OD, 13.2 in (A)/13.7 in (B) Dia Pitch, 7/8 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROBK1401
  • Alt Part Number: BK140X1
  • MPN: 1029545
  • UPC: 662289218936
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: BK Series, Finished Bore, 1 in Bore Dia, 13-3/4 in Outside Dia, 13.2 in (A)/13.7 in (B), 7/8 in Face Width, 21/32 in Hub Projection, 1-17/32 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron

Bore Diameter      :      1 in
Bore Type      :      Finished
Face Width      :      7/8 in
Hub Projection      :      21/32 in
Material      :      Cast Iron
Outside Diameter      :      13-3/4 in
Overall Length      :      1-17/32 in
Pitch Diameter      :      13.2 in (A)/13.7 in (B)
Series      :      BK Series
Suitable For Use With      :      4L/A and 5L/B Cross Section Belt
Type      :      Type 3
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
