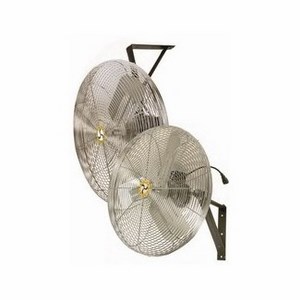

Airmaster® 71573 AIRCA30WC
Airmaster® 71573 1-Phase Commercial Direct Drive Non-Oscillating Air Circulator, 30 in Blade, 6100/4400/2700 cfm Flow Rate, 115 V AC, 3.5 A
- Manufacturer: Airmaster Fan Co
- Brand Name: Airmaster®
- Part Number: AIRCA30WC
- Alt Part Number: CA30WC
- MPN: 71573
- UPC: 783429715730
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Airmaster® Air Circulator, 1-Phase Commercial Direct Drive Non-Oscillating, 30 in Blade, 6100/4400/2700 cfm, 1100/800/600 rpm Speed, 1/4 hp Power, 115 V AC, 3.5 A, 60 Hz Frequency, 3 Speed, 3 Blades, Galvanized Steel Blade, Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing Motor, 76 dBA Sound Level, Steel Housing Material, Ceiling Mounting, 96 in H x 33 in W x 10-1/2 in D Dimensions, Import
| Amperage Rating | : | 3.5 A |
| Blade Material | : | Galvanized Steel |
| Blade Size | : | 30 in |
| Dimensions | : | 96 in H x 33 in W x 10-1/2 in D |
| Domestic/Import | : | Import |
| Flow Rate | : | 6100/4400/2700 cfm |
| Frequency Rating | : | 60 Hz |
| Housing Material | : | Steel |
| Motor Type | : | Permanent Split Capacitor/Totally Enclosed Air Over/Ball Bearing |
| Mounting Type | : | Ceiling |
| Number of Blades | : | 3 |
| Number of Speeds | : | 3 |
| Power Rating | : | 1/4 hp |
| Sound Level | : | 76 dBA |
| Speed | : | 1100/800/600 rpm |
| Type | : | 1-Phase Commercial Direct Drive Non-Oscillating |
| Voltage Rating | : | 115 V AC |
- Unassembled
- Galvanized steel propeller
- 104 deg F maximum ambient temperature
- Air velocity 800 fpm at 10 ft, 500 fpm at 20 ft, 200 fpm at 60 ft, 100 fpm at 80 ft
- Direct drive, class B motor insulation30 in fan Dia
- Nickel chrome wire guard finish
- 20-1/2 in wall mount, 22-1/2 in ceiling mount
Line Drawing
