Airmaster® 78018 AIR78018

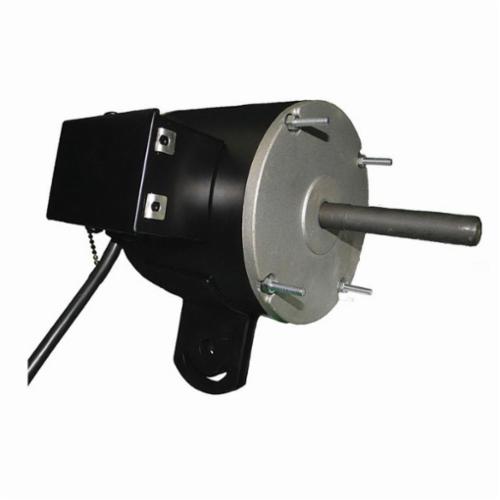

Airmaster® 78018 Commercial Non-Oscillating Motor With Supply Cord and Plug, 115 V AC, 1/4 hp, 5/8 in Dia x 3-1/2 in L Shaft, Domestic
- Manufacturer: Airmaster Fan Co
- Brand Name: Airmaster®
- Part Number: AIR78018
- MPN: 78018
- UPC: 783429780189
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Airmaster® Non-Oscillating Motor, Commercial, 115 V AC, 1/4 hp, 5/8 in Shaft Dia, 3-1/2 in Shaft Length, 26.9 in Overall Height, Domestic
| Domestic/Import | : | Domestic |
| Horsepower | : | 1/4 hp |
| Overall Height | : | 26.9 in |
| Shaft Diameter | : | 5/8 in |
| Shaft Length | : | 3-1/2 in |
| Type | : | Commercial |
| Voltage Rating | : | 115 VAC |
- Class B, Yoke mounting, ball bearing motor
- Auto thermal protection, CWSE motor shaft rotation
- Pedestal fan sub application
- For commercial air circulators
- 3-speed, 1100 rpm nameplate, 3.5 a full load, 60 Hz, 1 phase, 48YZ frame, 1 motor service factor, 40 deg C ambient temperature, 5-3/4 in body dia, 1001-1100 rpm
