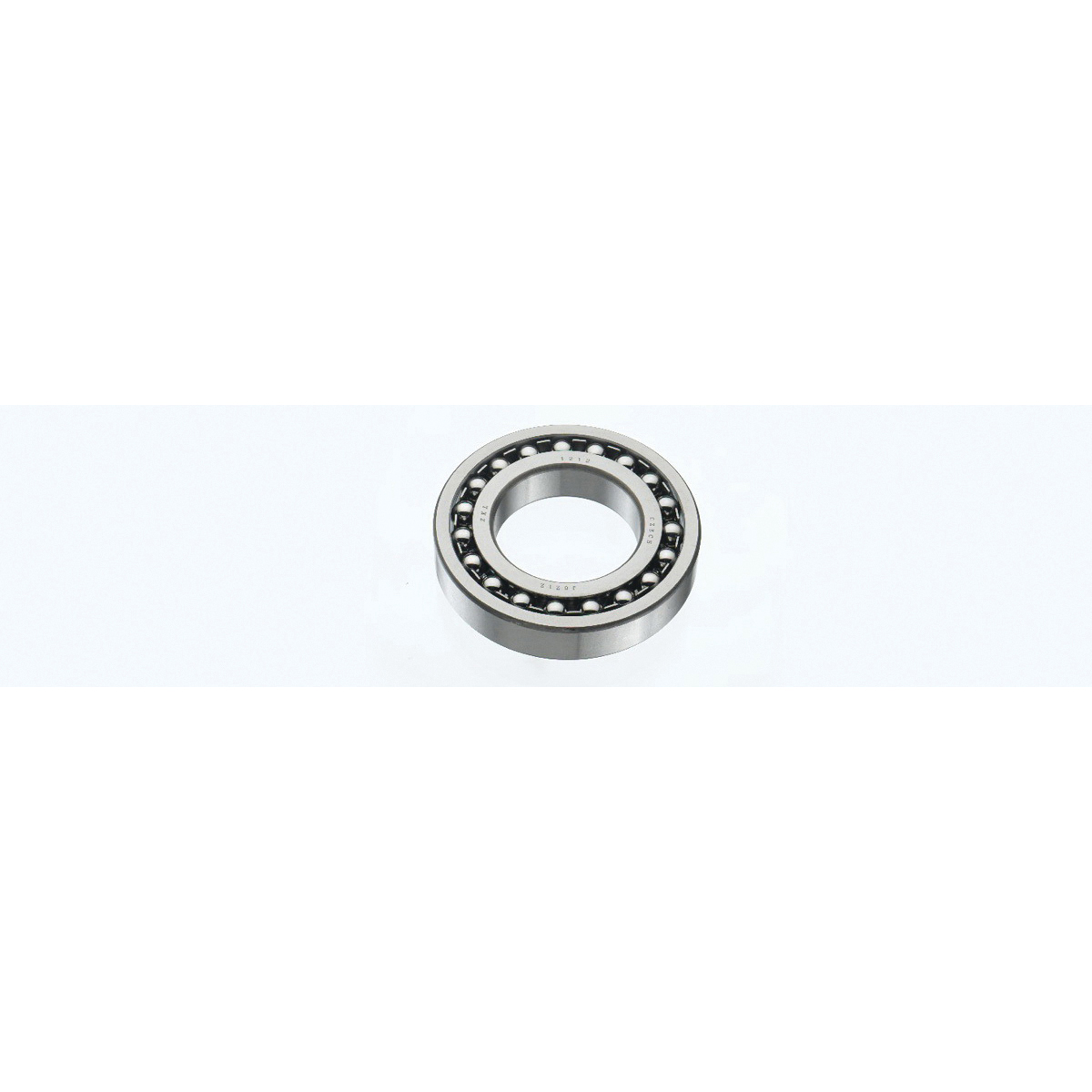

ZKL 1216 C3 CON1216

ZKL Self Aligning Ball Bearing, Cylindrical Bore, 80 mm Bore, 140 mm OD, 2 Rows, 26 mm Width, 8924 lb Load, Steel Bearing, 4500 rpm Grease/5300 rpm Oil Maximum

• Item Features 01=Double row self aligning ball bearings are non-separable
• Item Features 02=They are made in multiple series and with open construction
• Item Features 03=They are capable of running with low friction and at higher rpm
• Item Features 04=The bearings with tapered bore are required to be fitted either onto a shaft with tapered seating on the shaft, or by means of an adapter sleeve onto a cylindrical shaft
• Item Features 05=These bearings can transmit radial and limited axial forces
• Item Features 06=The double row self aligning ball bearings have two-rows of balls with a common spherical track on the outer ring
• Item Features 07=This allows misalignment of the bearing inner ring with respect to the outer ring around the center of the bearing, without affecting its correct function
• Item Features 08=These bearings are capable of compensating lack of co-axiality between the shaft and the housing, shaft deflection and even machining defect in the support structure that may give rise to the misalignment after assembly
• Item Features 09=The bearings are supplied with standard clearance and with normal accuracy class
• Item Features 10=8924 lb dynamic/3776 lb static load
