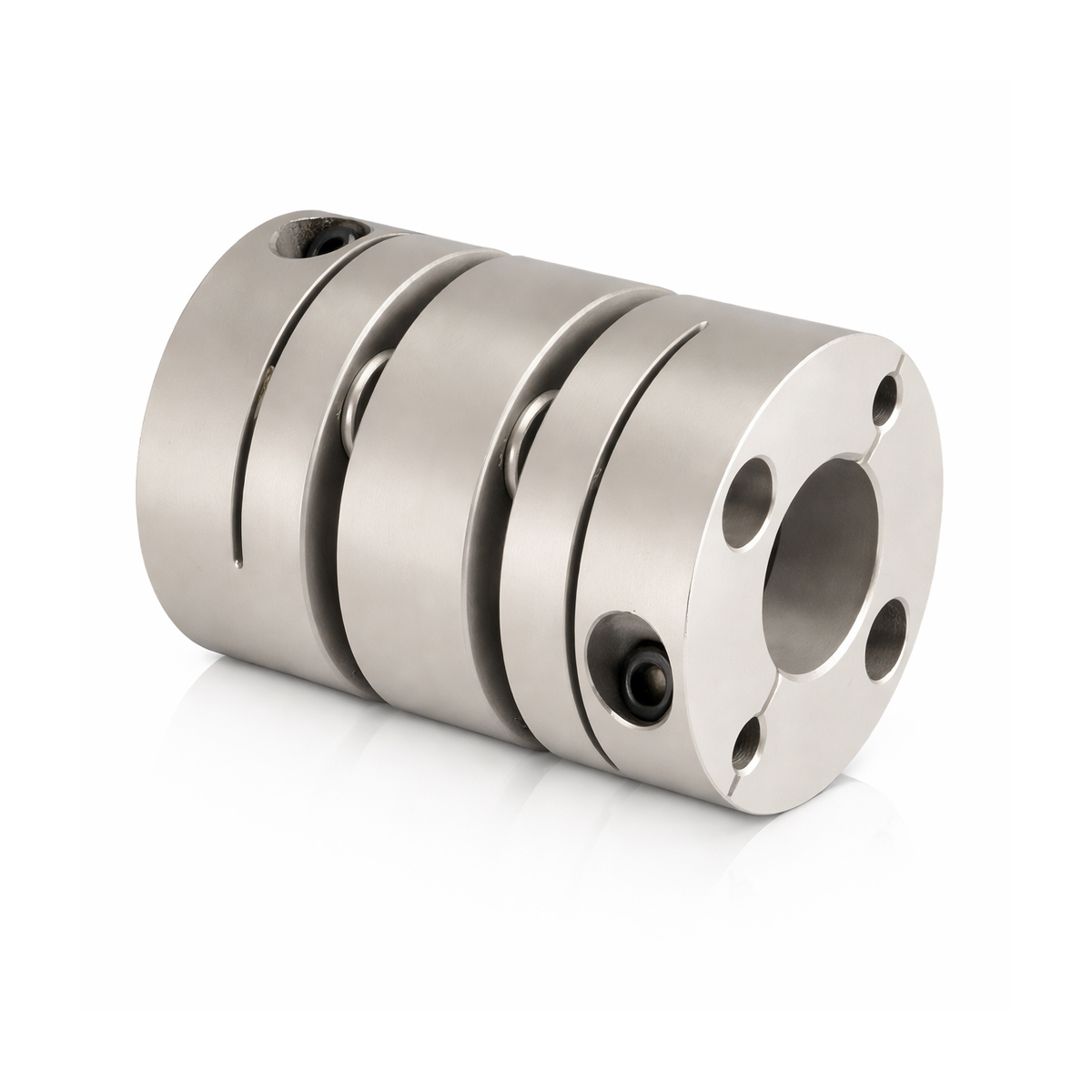

Zero-Max SC080R-038-045 ZERSC080R-038-045
Size 80 double‑flex servo coupling, 32 mm × 45 mm bores
- Manufacturer: Zero‑Max, Inc.
- Brand Name: Zero-Max
- Part Number: ZERSC080R-038-045
- MPN: SC080R-038-045
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EACH
-
Price: Call for Price
Zero‑Max ServoClass double‑flex coupling for servo applications requiring high torsional stiffness and zero backlash. Accommodates parallel, angular, and axial misalignment while transmitting up to 885 in‑lb.
| Angular Misalignment | : | 1 deg |
| Axial Misalignment | : | 0.04 in |
| Bore 1 | : | 32 mm |
| Bore 2 | : | 45 mm |
| Inertia | : | 3.54 lb-in^2 |
| Max Speed | : | 10000 rpm |
| Operating Torque | : | 885 in-lb |
| Outside Diameter | : | 3.228 in |
| Overall Length | : | 3.858 in |
| Parallel Misalignment | : | 0.02 in |
| Torsional Stiffness | : | 10813 in-lb/deg |
- Zero‑backlash disc coupling
- High torsional stiffness for precise positioning
- Double‑flex design handles misalignment
- Clamp hubs with metric hardware
