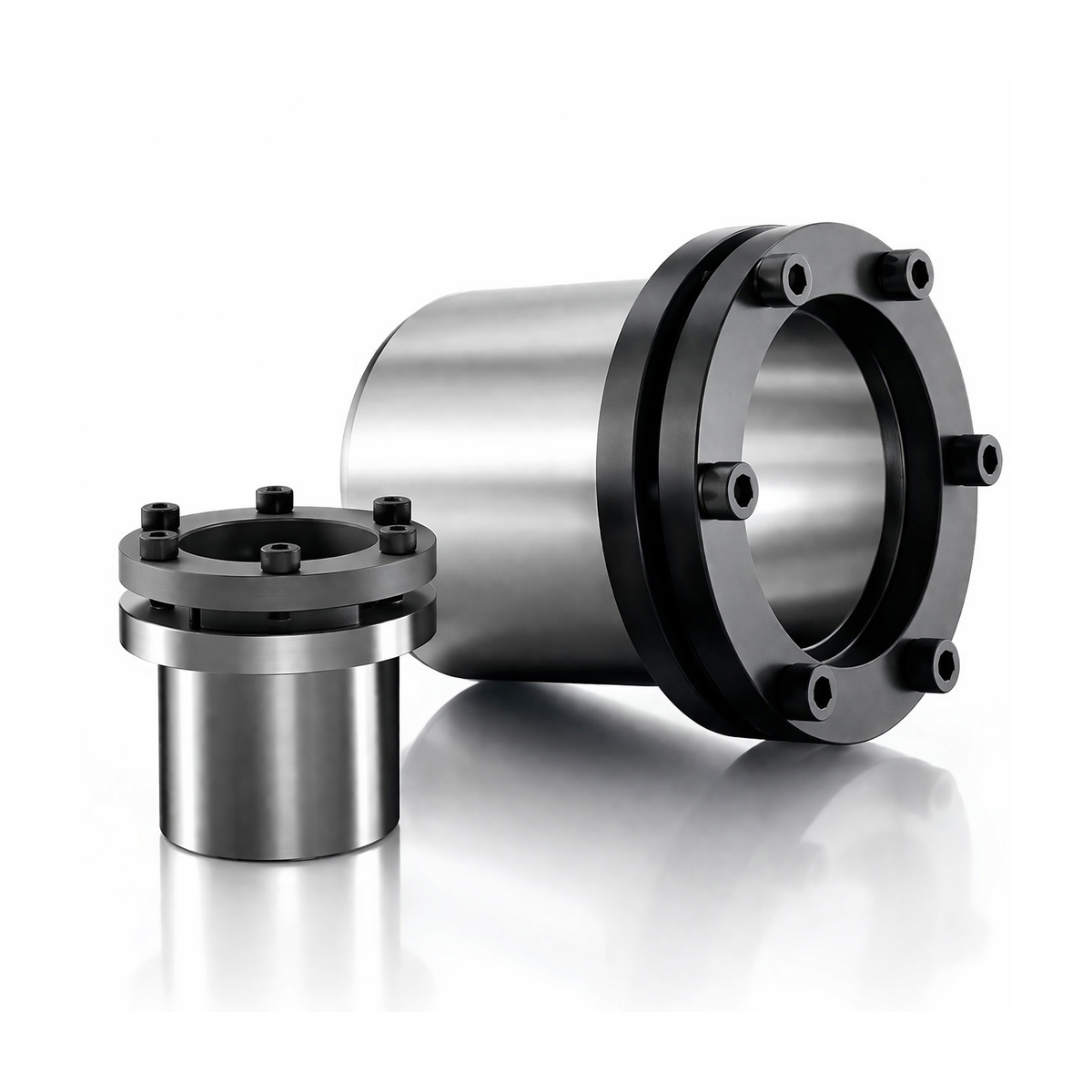

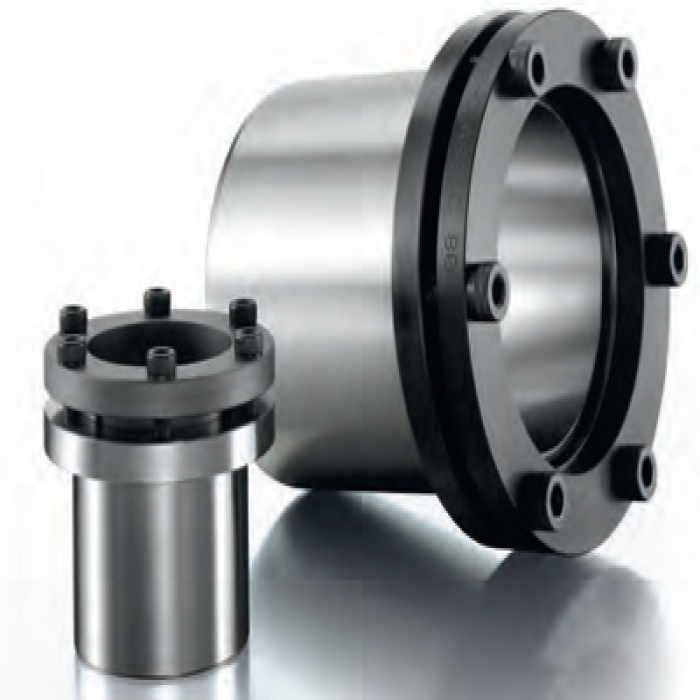

Zero‑Max ETP-1 Classic hydraulic keyless bushing for 1.00 in shafts. Provides backlash‑free, concentric shaft‑to‑hub connection with high torque and axial/radial load capacity. Single‑screw actuation expands inner/outer sleeve for quick mounting/removal.
| Body Length | : | 41 mm |
| Bolt Circle | : | 41.5 mm |
| Bore Diameter | : | 1 in |
| Flange OD | : | 51 mm |
| Hub Bore Tolerance | : | H7 grade |
| Outside Diameter | : | 35 mm |
| Overall Length | : | 46 mm |
| Radial Load (FR) | : | 2473 lbf |
| Screws | : | 4 count |
| Shaft Tolerance | : | k6-h8 grade |
| Sleeve Length | : | 27 mm |
| Tightening Torque | : | 5.9 ft-lb |
| Transmittable Torque | : | 144 ft-lb |
- Backlash-free, keyless shaft-to-hub connection
- Single-screw hydraulic actuation for fast install/removal
- High torque and axial/radial capacity
- H7 hub bore / k6–h8 shaft tolerance fit
