Webstone 50405 321749

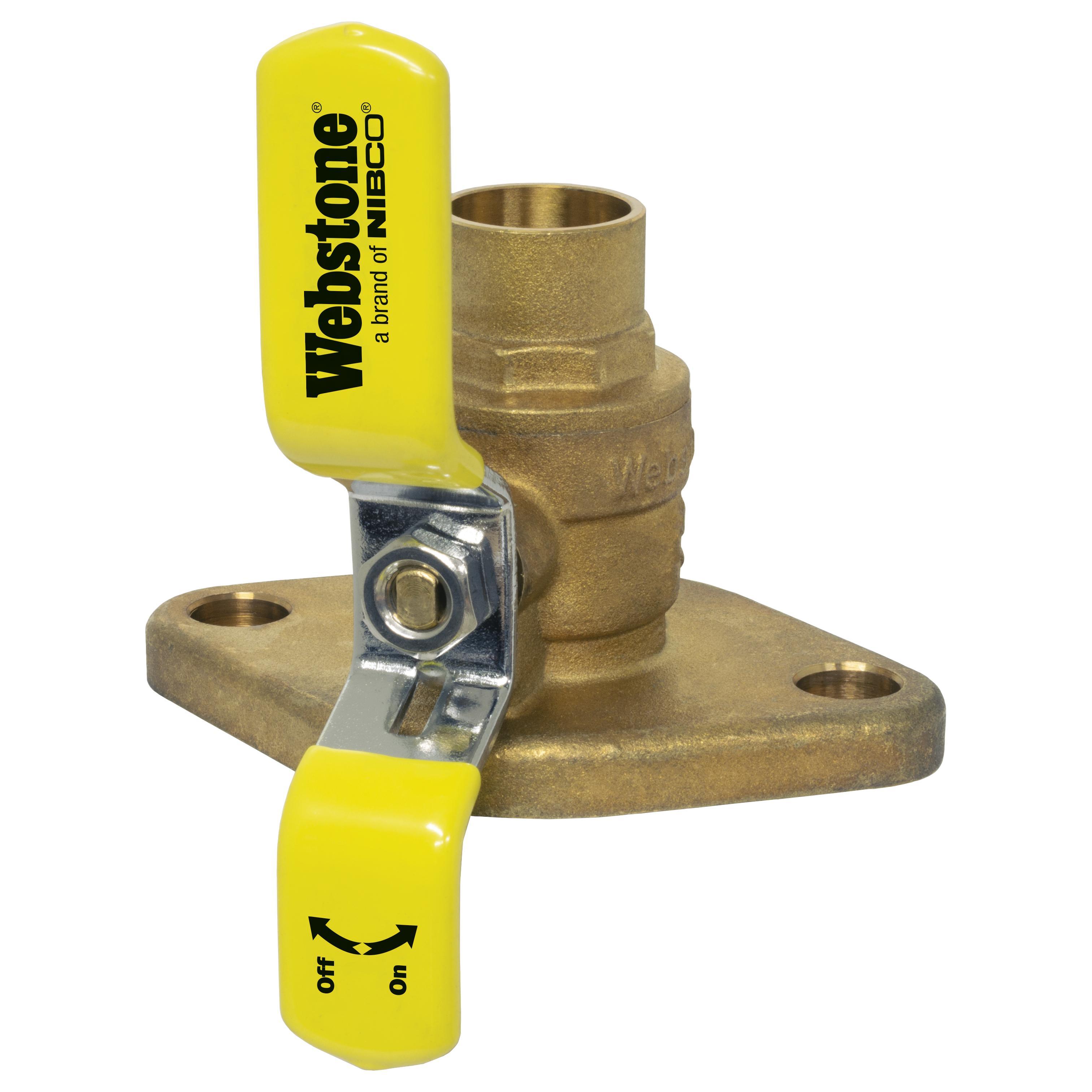

Webstone The Isolator® 50405 5040 Standard Uni-Flange Ball Valve, 1-1/4 in Nominal, C x Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
- Manufacturer: NIBCO Inc.
- Brand Name: Webstone
- Part Number: 321749
- Alt Part Number: H-50405
- MPN: 50405
- UPC: 018394504059
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
Webstone The Isolator®, 50405, Ball Valve, Standard Uni-Flange, Series: 5040, 1-1/4 in Nominal, C x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/4 in Orifice, Lever Handle Actuator, 3-1/8 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
| Actuator Type | : | Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Forged Brass |
| Domestic/Import | : | Import |
| End Style | : | C x Flange |
| Inlet to Outlet Length | : | 3-1/8 in |
| Media | : | Glycol Mixture/Oil/Water |
| Nominal Size | : | 1-1/4 in |
| Orifice Size | : | 1-1/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 5040 |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 100 deg F |
| Top to Inlet Center | : | 2-13/16 in |
| Trim Material | : | Brass/PTFE |
| Type | : | Standard Uni-Flange |
- Unique uni-body design is preserved
- Heavy duty forged brass construction
- Ball valve with integral spring check saves labor, space, and leak paths
- Guaranteed for life
- Replace three component
- Saves 18 min
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- These valves have revolutionized the installation of circulator pumps
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Eliminate two leak path
- Our original Isolator® uni-flange ball valve design has evolved into the largest flanged ball valve program in the industry today
- Full port forged brass ball valve with adjustable packing gland, nuts and bolts
- PTFE seat/stem seal
- This valve is actuated by a blowout proof stem
