Warner Electric® 6024-448-005 WAR6024-448-005

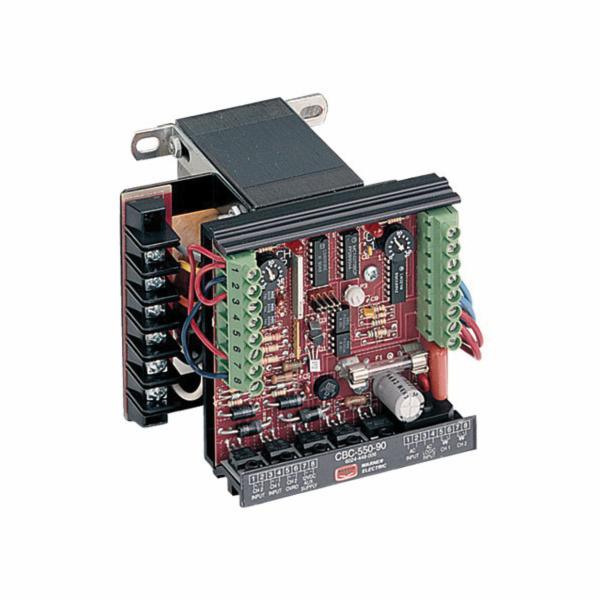

Warner Electric® 6024-448-005 CBC-550 Panel Mounted Adjustable Torque Controller With Power Transformer, 120/220/240/380/480 VAC Input, 0 to 24 VDC Output, 2 Channel, For Use With 24 or 90 VDC Clutches/Brakes
- Manufacturer: Regal Rexnord
- Brand Name: Warner Electric®
- Part Number: WAR6024-448-005
- Alt Part Number: 30190735
- MPN: 6024-448-005
- UPC: 786582098016
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The CBC-550 series is a dual channel adjustable voltage control with optically coupled switching for 24 and 90 VAC electric clutches and brakes. These controls can be set up to energize the two outputs alternately (single) or simultaneously (dual). These adjustable torque controls (6024-448-005) feature 2 channels and an input of 120/220/240/380/480 VAC.
Warner Electric® Adjustable Torque Controller, Panel Mounted, Series: CBC-550, 120/220/240/380/480 VAC Input, 0 to 24 VDC Output, 2 Channels, For Use With: 24 or 90 VDC Clutches/Brakes, Specifications: 4 A Output Current, 12 VDC 250 mA Auxiliary Supply, 5 A/250 V Circuit Protection, 32 to 122 deg F Ambient Temperature, 4.6 in L x 4-1/2 in W x 4.72 in H Dimensions
| Dimensions | : | 4.6 in L x 4-1/2 in W x 4.72 in H |
| Input Voltage | : | 120/220/240/380/480 VAC |
| Number of Channels | : | 2 |
| Output Voltage | : | 0 to 24 VDC |
| Series | : | CBC-550 |
| Specifications | : | 4 A Output Current, 12 VDC 250 mA Auxiliary Supply, 5 A/250 V Circuit Protection, 32 to 122 deg F Ambient Temperature |
| Suitable For Use With | : | 24 or 90 VDC Clutches/Brakes |
| Type | : | Panel Mounted |
- Dual adjustable channels
- Optically isolated input switching
- Red LED indicates channel is energized
