Warner Electric® 5371-271-023 WAR5371-271-023

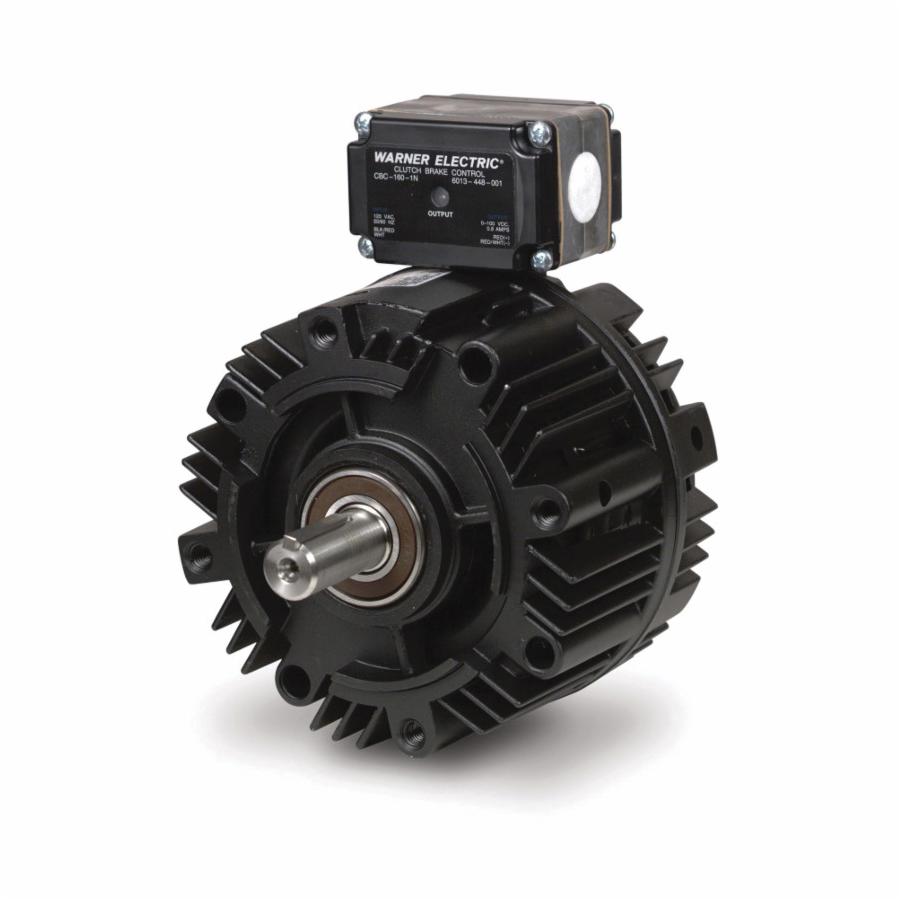

Warner Electric® UniModule® 5371-271-023 UM-215-3040 Standard Input/Output Combination Clutch, 90 VDC, 95 ft-lb Torque, 3600 rpm Max, 1-3/8 in Dia Bore
- Manufacturer: Regal Rexnord
- Brand Name: Warner Electric®
- Part Number: WAR5371-271-023
- MPN: 5371-271-023
- UPC: 786582065742
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
UniModule® offer the ultimate in clutch/brake performance and convenience. UniModule® offer the same performance as EM's without the assembly required. Completely pre-assembled one-piece clutch and clutch/brake packages in five sizes. This module (5371-271-023) features a 213TC/215TC NEMA frame, a voltage of 90 VDC and 95 ft-lb torque.
Warner Electric® UniModule® Input/Output Combination Clutch, Standard, Series: UM-215-3040, 1-3/8 in Bore, 9-1/4 in OD, 12.969 in Overall Length, 95 ft-lb Torque, 90 VDC, 3600 rpm Maximum, C-Face Mounting, Open Enclosure
| Bore Diameter | : | 1-3/8 in |
| Enclosure Type | : | Open |
| Maximum Speed | : | 3600 rpm |
| Mounting Type | : | C-Face |
| Outside Diameter | : | 9-1/4 in |
| Overall Length | : | 12.969 in |
| Series | : | UM-215-3040 |
| Torque Rating | : | 95 ft-lb |
| Type | : | Standard |
| Voltage Rating | : | 90 VDC |
- Easy installation
- Fan cooled for high cycle rate operation
- Maintenance free
- Can be applied with control fitted as standard
- Bearing mounted clutch rotor eases assembly alignment
- Single access hole for all wires
- Spring return
Specification Sheet
