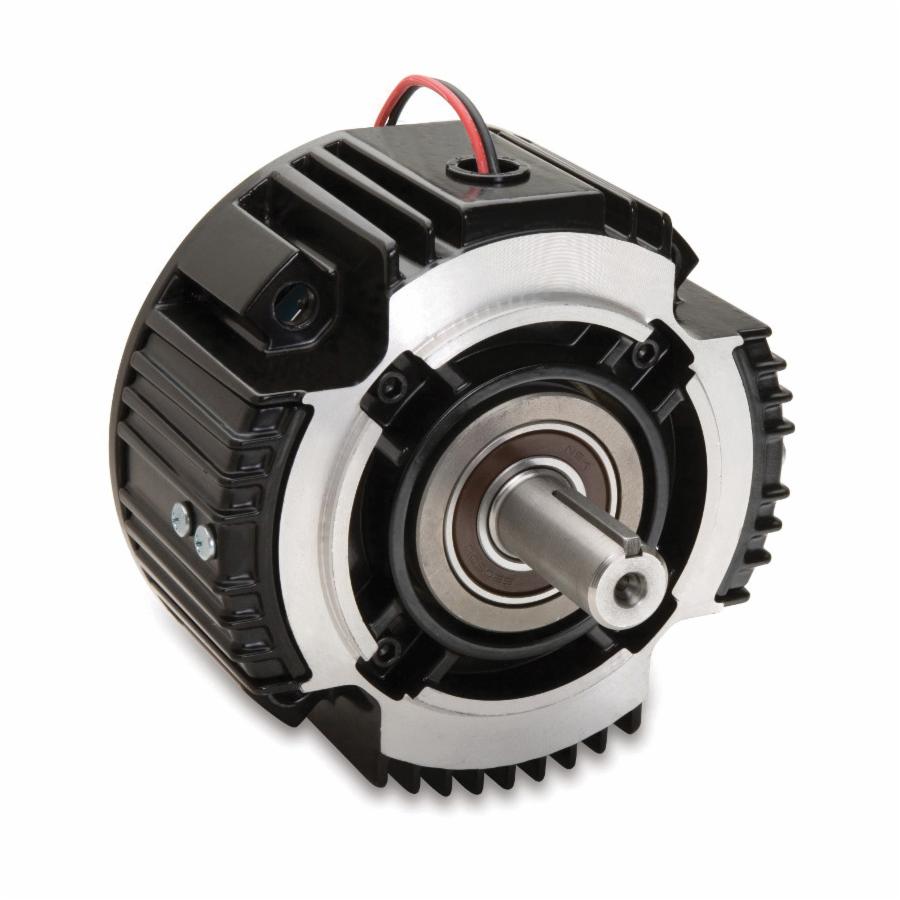

Warner Electric® 5371-169-090 WAR5371-169-090
Warner Electric® 5371-169-090 EUM-FBB Standard Uni Module Brake, 90 V DC, 56 ft-lb Torque, 3600 rpm Max, 1-3/8 in Dia Bore
- Manufacturer: Regal Rexnord
- Brand Name: Warner Electric®
- Part Number: WAR5371-169-090
- Alt Part Number: 30189631
- MPN: 5371-169-090
- UPC: 786582065513
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Enclosed UniModule® packages the hardworking components from UM products into a totally enclosed housing. This rugged housing keeps wear particles in and contaminants out. When enclosed, they are suitable for most industrial applications and tolerate infrequent, light washing. This module (5371-169-090) features standard friction faces, a hollow bore/shaft, a 7-1/4 in bolt circumference and a 90 VDC.
Warner Electric® Uni Module Brake, Standard, Series: EUM-FBB, 1-3/8 in Bore, 9-1/4 in OD, 8.078 in Overall Length, 56 ft-lb Torque, 90 V DC, 3600 rpm Maximum, C-Face Mounting, Enclosed Enclosure
| Bore Diameter | : | 1-3/8 in |
| Enclosure Type | : | Enclosed |
| Maximum Speed | : | 3600 rpm |
| Mounting Type | : | C-Face |
| Outside Diameter | : | 9-1/4 in |
| Overall Length | : | 8.078 in |
| Series | : | EUM-FBB |
| Torque Rating | : | 56 ft-lb |
| Type | : | Standard |
| Voltage Rating | : | 90 V DC |
- Rugged cast housing provides strength
- Permanent magnets provide holding torque
- NEMA C-face compatible mounting
- Totally enclosed construction
- Never needs adjustment and automatically compensates for wear
