Tsubaki® RS160FX UST160FX-10

Tsubaki® RS160FX FX Chain, 2 in Pitch, 1-1/8 in Dia x 1-1/4 in W Roller

  • Manufacturer: U.S. Tsubaki Power Transmission
  • Brand Name: Tsubaki®
  • Part Number: UST160FX-10
  • MPN: RS160FX
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

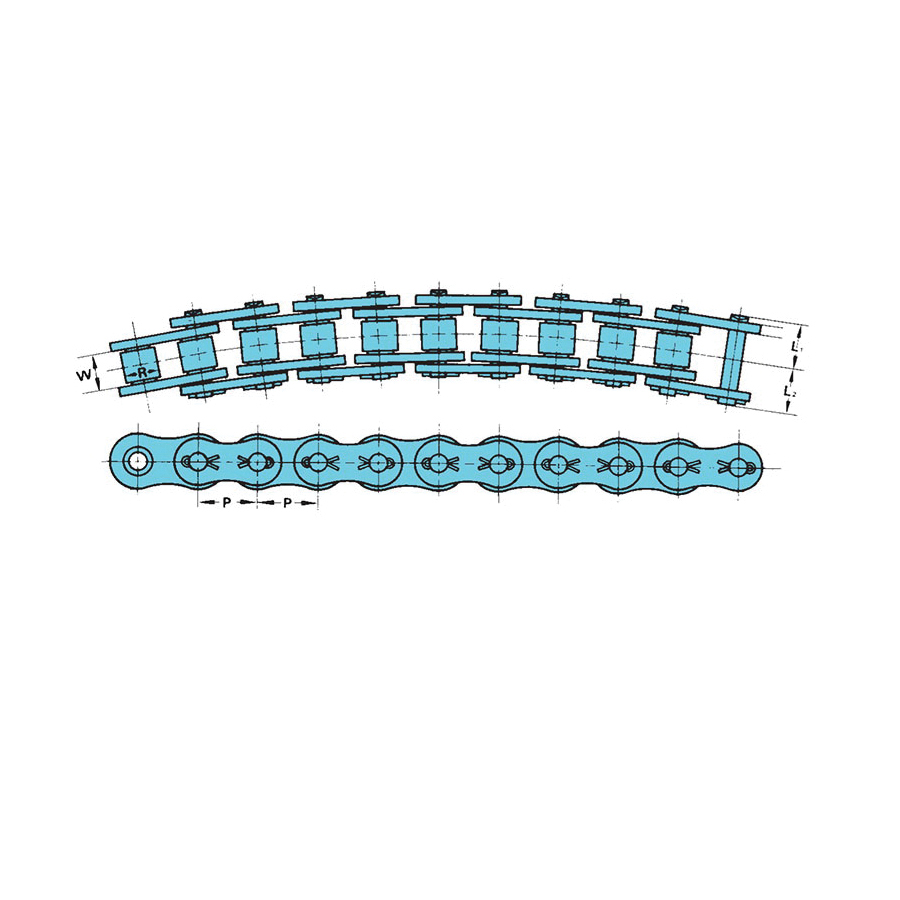

Tsubaki® FX Chain, 2 in Pitch, 2.705 in Pin Length, 1-1/8 in Roller Diameter, 1-1/4 in Roller Width, 1.898 in Plate Height, 1/4 in Plate Thickness, 58000 lb Tensile Strength

Pin Length      :      2.705 in
Pitch      :      2 in
Plate Height      :      1.898 in
Plate Thickness      :      1/4 in
Roller Diameter      :      1-1/8 in
Roller Width      :      1-1/4 in
Tensile Strength      :      58000 lb
  • FX chains are interchangeable with ASME/ANSI standard chains and can operate on the same ASME/ANSI standard sprocket
  • Increased clearance between pins and bushings allows the chains to accommodate a 4 in lateral side bow and an 8 deg twist per 4 ft of chain
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_1008_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_RS160FX_Specification_Sheet.pdf
