Tsubaki® PL2 USTPL2

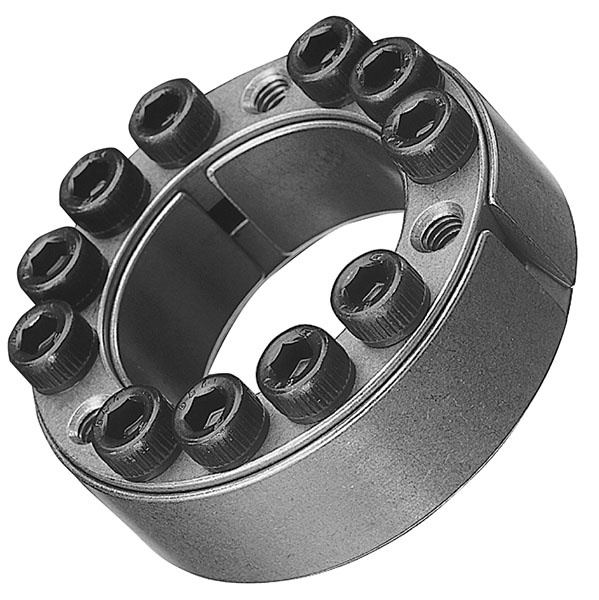

Tsubaki® Power-Lock® PL2 AS Series Multi-Purpose Keyless Locking Device, 2 in Dia Bore, 3.3465 in OD, 1.26 in OAL, Carbon Steel
- Manufacturer: U.S. Tsubaki Power Transmission
- Brand Name: Tsubaki®
- Part Number: USTPL2
- MPN: PL2
- UPC: 097039571212
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Tsubaki® Power-Lock® has been highly acclaimed since its introduction into the locking device market. It carries many attractive features and comes in a wide range of models that meet the needs of customers.
Tsubaki® Power-Lock® Keyless Locking Device, Multi-Purpose, Series: AS Series, 2 in Bore Dia, 3.3465 in Outside Dia, 1627 ft-lb Transmissible Torque, 19360 lb Transmissible Thrust, 31570 psi Shaft Contact, 18910 psi Hub Contact, M8 x 22 Screw, 1.26 in Overall Length, -22 to 392 deg F, Carbon Steel, Uncoated
| Bore Diameter | : | 2 in |
| Finish | : | Uncoated |
| Hub Contact Pressure | : | 18910 psi |
| Material | : | Carbon Steel |
| Outside Diameter | : | 3.3465 in |
| Overall Length | : | 1.26 in |
| Screw Size | : | M8 x 22 |
| Series | : | AS Series |
| Shaft Contact Pressure | : | 31570 psi |
| Temperature Rating | : | -22 to 392 deg F |
| Transmissible Thrust | : | 19360 lb |
| Transmissible Torque | : | 1627 ft-lb |
| Type | : | Multi-Purpose |
- Most popular series world-wide
- Easy machining of shaft and hub
- Can use on shafts with keyway
- Low machining costs
- Easy to install
Instruction/Installation Manual
