Tsubaki® C2120HCB USTC2120HC-10

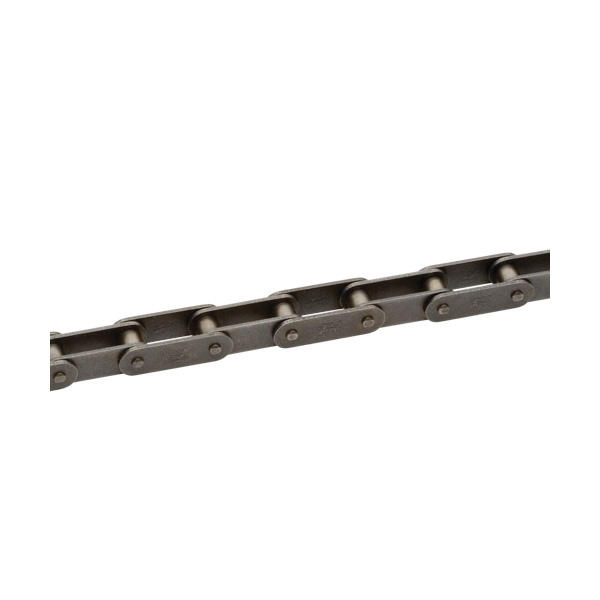

Tsubaki® C2120HCB Double Pitch Conveyor Chain, 10 ft OAL, 3 in Pitch, 7/8 in Dia x 1 in W Roller, 0.219 in THK Plate

  • Manufacturer: U.S. Tsubaki Power Transmission
  • Brand Name: Tsubaki®
  • Part Number: USTC2120HC-10
  • MPN: C2120HCB
  • UPC: 097039181619
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

These chains provide a high quality conveying medium for material handling equipment, road building machinery, textile machinery, farming implements, baking, packaging and bottling equipment.

Tsubaki® Conveyor Chain, Double Pitch, 3 in Pitch, 0.427 in Pin Dia, 7/8 in Roller Dia, 1 in Roller Width, 1.37 in Plate Height, 0.219 in Plate Thickness, 40/10 ft Number of Link, 34000 lb Tensile, 10 ft Overall Length

Number of Link      :      40/10 ft
Overall Length      :      10 ft
Pin Diameter      :      0.427 in
Pitch      :      3 in
Plate Height      :      1.37 in
Plate Thickness      :      0.219 in
Roller Diameter      :      7/8 in
Roller Width      :      1 in
Tensile Strength      :      34000 lb
Type      :      Double Pitch
  • Standard roller
  • Cottered pin construction
